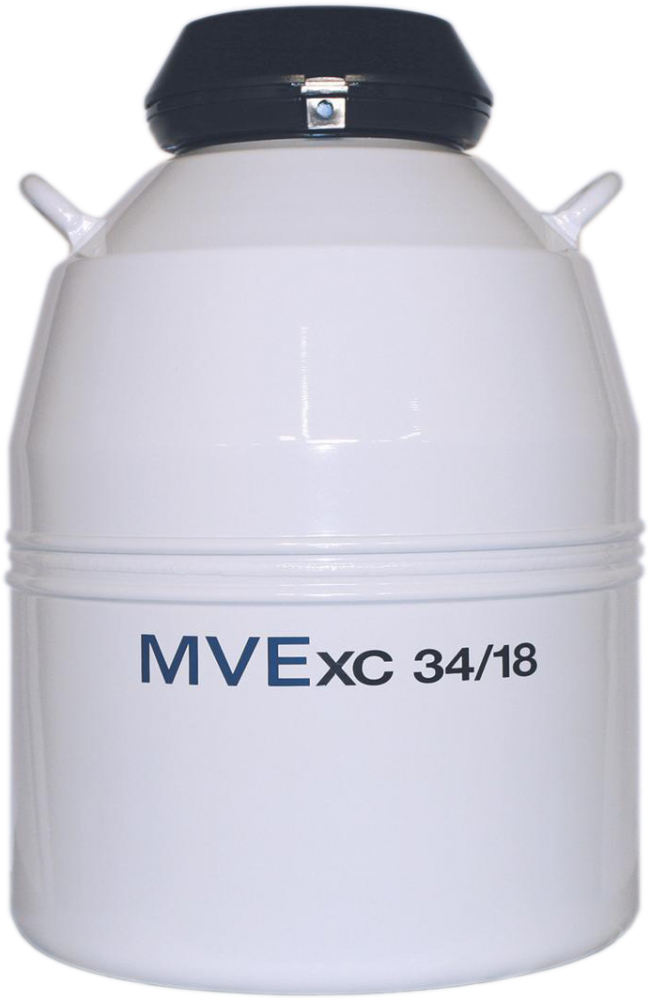

MVE XC 34/18 Cryogenic Freezer with (6) 11″ Canisters (Capacity: 630 x 2.0 ml vials)
Item#: 10743027The XC Series tanks are manufactured to a world class level of excellence. These durable, lightweight LN2 dewars can be relied on to perform in the most demanding of environments. The XC Series is designed for the user who requires large capacity storage and low liquid nitrogen consumption in a convenient lightweight package.
$1,781.00 $1,513.85
- Capacity (Liters.): 34.8
- Empty Weight: 34 lbs. (15.4 kg)
- Full Weight: 96 lbs. (43.5 kg)
- Neck Diameter: 3.5" (88.9mm)
- Outer Diameter: 18.2" (464mm)
- Total Height: 26.6" (675mm)
- Static Evaporation Loss Rate (Liters/day): 0.18
- Static Holding Time (Days): 123
- Canister O.D.: 2.8" (71.2mm)
- Canister Height: 11" (279mm)
- No. of Canisters (No.): 6
- Straw Holding Capacity Single Level (0.5ml): 3300
- Straw Holding Capacity Double Level (0.5ml): n/a
- Warranty: 3 years vacuum
*Does Not Include Straws and Vials*
See Related Products for available canes (3 cases required)
- Designed for large capacity storage
- Low liquid nitrogen consumption
- Convenient lightweight package
- Durable, tamper-proof lid design
- High strength neck tub reduces liquid nitrogen loss
- Strong light weight aluminum construction
- Advanced chemical vacuum retention system
- Spider design on platform for easy retrieval and insertion of product canisters
- Warranty: 2 year parts ; 3 year vacuum
MVE XC Series Spec Sheet
DownloadChart MVE XC Series Literature
DownloadChart MVE Accessories Catalog
Download-
Hinged Lid Kit for MVE XC 34/18 Plus Liquid Nitrogen System
Item #: 10858705 -
Transfer Hose with Medium Sized Phase Separator for MVE LN2 Systems (use with discharge device)
Item #: 14044151$187.00$158.95 -
Roller Base for MVE XC 21/6, XC 34/18, XC 34/18 Plus, XC 33/22, XC 32/8, SC 36/32, SC 33/26, LAB 30 & LAB 50 Liquid Nitrogen Systems
Item #: 10937403$415.00$352.75 -
Transfer Hose for MVE LN2 Systems (4′ x 1/2″ Dia.)
Item #: 9713159$226.00$192.10 -

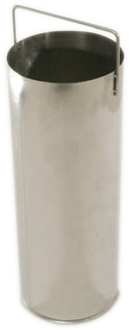

Center Canister for MVE XC 34/18 and XC 34/18 Plus Liquid Nitrogen System
Item #: 10623199$58.00$49.30 -
Phase Separator with Rigid Discharge Device Nozzle for MVE LN2 Systems
Item #: 11734421$205.00$174.25 -
Transfer Hose with Small Sized Phase Separator for MVE LN2 Systems (use with discharge device)
Item #: 14044143$145.00$123.25 -

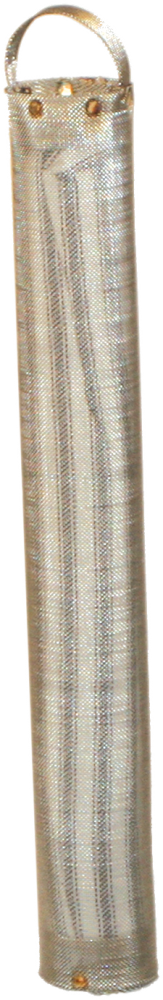

2.75″ Cabosil Vapor Canister Insert
Item #: 10736425$101.00$85.85 -
Medium Aluminum Dewar Phase Separator for MVE LN2 Systems (1 5/16″ x 3″)
Item #: 10615877$120.00$102.00 -
Aluminum Canes for Liquid Nitrogen Systems
Item #: T313$52.82$44.90 -
Transfer Hose for MVE LN2 Systems (6′ x 1/2″ Dia.)
Item #: 9713109$301.00$255.85 -
Replaceable Neck Cork for MVE XC 34/18, XC 34/18 Plus and Doble QWick 20/2100 & Doble 34 Series Liquid Nitrogen Systems (Dewar Neck Opening Diameter: 3.5″)
Item #: 10507489$114.00$96.90 -
Cool Reach for Retrieving Ampules and Canes
Item #: 13051579$280.00$238.00 -
Small Aluminum Dewar Phase Separator for MVE LN2 Systems (11/16″ x 1 1/2″)
Item #: 10615885$67.00$56.95 -
47″ Long Liquid Measuring Stick for Liquid Nitrogen
Item #: 20561020 $50.00 -
11″ Canister for MVE XC 34/18, Doble QWick 20/2100 & Doble 34 Series Liquid Nitrogen Systems
Item #: 14782402$52.00$44.20
