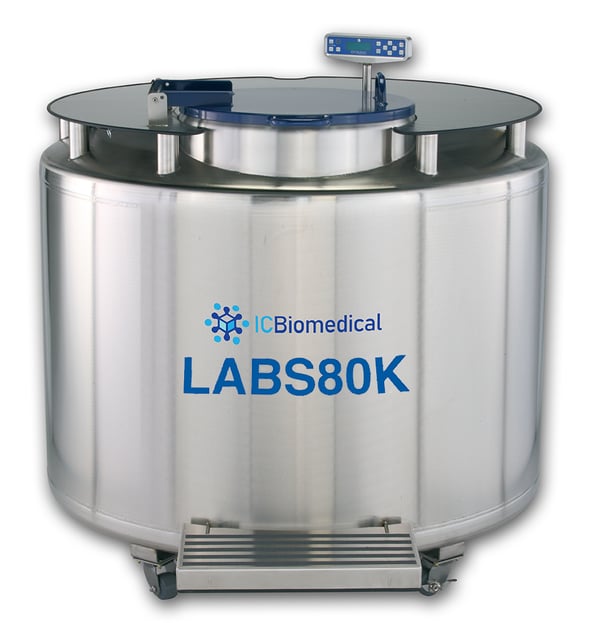

IC Biomedical LABS 80K LN2 Freezer System (w/ Locking Step) (Capacity: 79,300 x 2.0ml vials)
Item#: LABS80K-CSThe LABS 80K Liquid Nitrogen Freezer from Worthington Industries is the perfect cryogenic storage solution when you require storage capacities of up to 79,300 2ml vials. This unit features an easy-grip, aluminum turn-table for easier movement, a flat table top providing a convenient work surface and a hinged and lockable lid with a sealed coating for long-lasting LN2 temperatures. The NEW CS Series control system allows you to control and monitor liquid levels and temperatures while providing enhanced sample security. We offer a large variety of inventory systems and accessories making this unit complete.
- External Operating Height (top of step to lid opening): 42" / 1,067mm
- Step Height(1): 11" / 17" or 275 / 425mm
- Height (floor to opening): 53" / 1,346mm
- Usable Height (internal): 30" / 762mm
- Outside Diameter: 59.5" / 1,397mm
- Internal Working Diameter: 55" / 1,397mm
- Neck Opening: 24.5" / 622mm
- Total LN2 Capacity:
- Liquid Storage: 1,350 liters
- Vapor Storage: 150 liters
- Weight Empty: 1,550 lbs. / 703 kg
- Max. Gross Weight(3): 3,956 lbs. / 1,794 kg
Inventory Control System Specifications:
- No. of 100/81 Cell Racks: 58
- No. of Shelves/Rack: 13
- No. of 25 Cell Racks: 12
- No. of Shelves/Rack: 13
- Vial Capacity(4): 79,300 x 2.0ml vials
- Bag 25ml (7 level rack): 5,999
- Bag 50ml (5 level rack): 3,381
- Bag 250ml (5 level rack): 1,920
- Bag 500ml (5 level rack): 1,610
Ordering Information:
| System |
Catalog No.
|
|
LABS 80K with CS200 Controller*
(includes locking step and fill hose with adaptor)
|
367804
|
|
LABS 80K with CS200 Controller*
(includes locking double steps and fill hose with adaptor)
|
367839
|
| US Plug End* |
367753
|
| Options to Consider: |
Catalog No.
|
| Battery Back-Up with Cover |
367805
|
| Inventory Freezer Racks | click here |
| Storage Boxes and Cell Dividers | click here |
| Canisters, Frames, and Dividers | click here |
*All LABS Models with the CS200 controller require a plug end configuration for country of end use.
(1) The dual steps are optional on the LABS 80K.
(2) Universal transformer reduces power to 12 VDC. Power outlet/plug configuration for country of end use to be indicated at time
of order.
(3) Includes the empty weight and total LN2 capacity weight.
(4) 2 ml vial size/12.5 mm O.D. internal thread.
- High efficiency - very low LN2 consumption.
- LN2 storage in either liquid or vapor phase
- Near LN2 temperatures maintained at top of inventory storage system for overall sample viability
- Single pivot point aluminum turntable design - smooth rotation and ergonomic use.
- Eliminates any mechanical component maintenance
- Full height, segmented and labeled turntable provides easy inventory storage access and management
- Convenient access to measure LN2 level
- Hinged lid and stainless steel table top - easy operation with convenient working surface.
- The lid includes locking capabilities and activates an automatic defog for quick viewing of inventory storage
- The table top provides a clear working surface and provides protection to electrical and plumbing components
- Enhanced and intuitive controller technology.
- Discrete thermistor level measurement and thermocouple temperature resolution 0.1°C
- Capabilities for data collection, event scheduling and enhanced security settings
- Second access point for monitoring temperature
- Additional features include:
- Integral folding single step with slip-resistant surface and mechanical step lock for securing the step when stowed(7)
- Flexible fill hose with 1.27cm I.D. includes dual swivel connectors and a 3/8" male NPT adaptor (included with unit purchase)
- Warranty: 5 year vacuum
-
