UV HEPA PCR Workstations

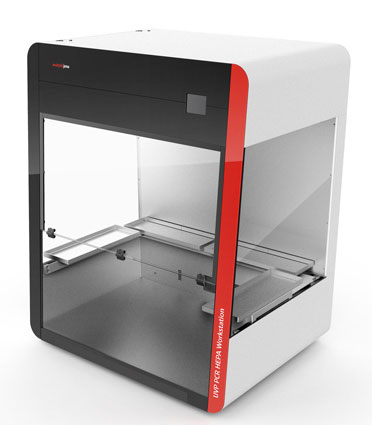

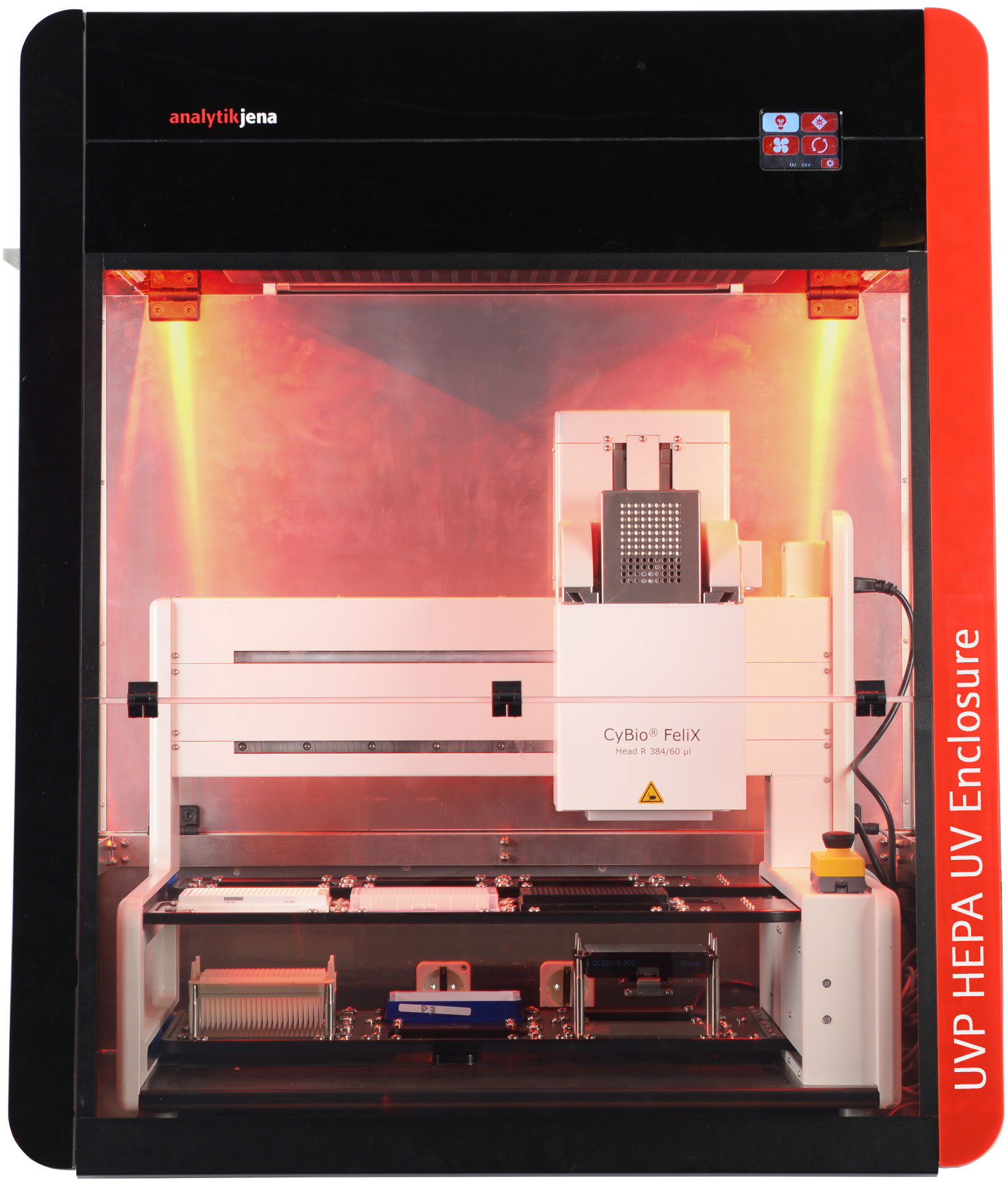

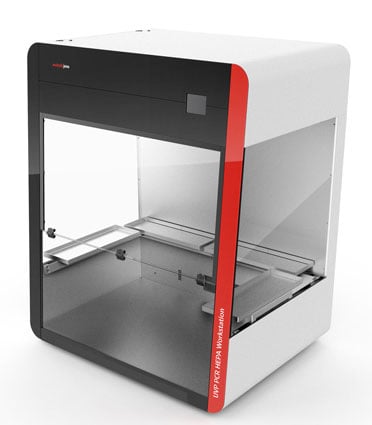

Item#: UVPCRHEPA-UVPThe UV HEPA PCR hood brings together UV irradiation, HEPA filtration, and antimicrobial metal surfaces to create a dual-attack environment against PCR contamination. This PCR workstation is designed for a variety of applications including PCR preparation & amplification, and microbial research. Choose from two different sizes: cabinet or workstation.
- UV Source (254 nm)
- Inside the work area
- Pre-filter chamber
- Air recirculator at the bottom
- UV Safety
- UV shut-off switches in all the chambers
- Red LED ambient light to indicate UV on
- White light- Overhead white LED lights brightly illuminates the work area

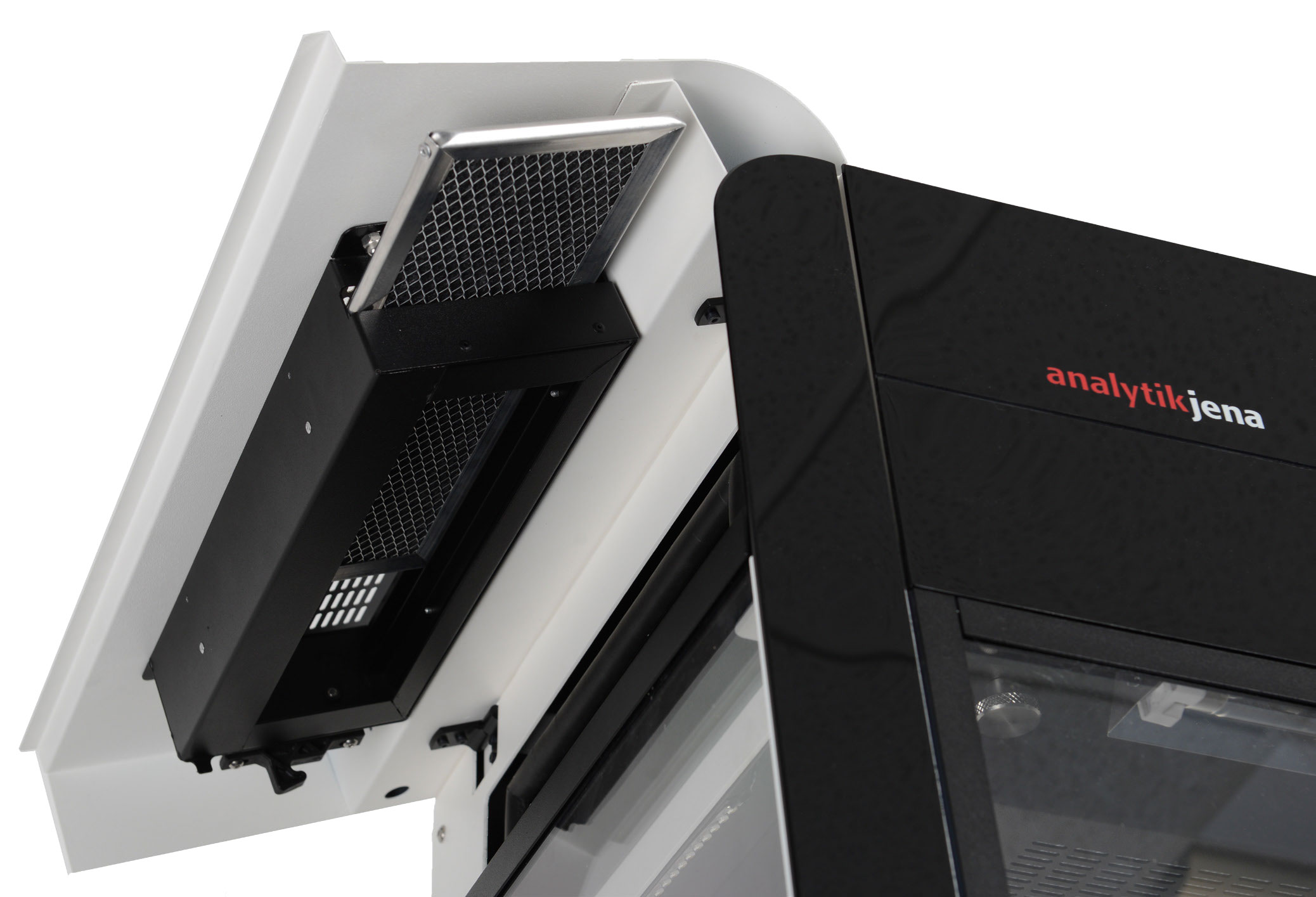

- Filter module- 2-stage filter module: Carbon pre-filter, HEPA filter
- Timer- 15 minutes, 30 minutes, custom (up to 99 minutes)
- Power Outlets- 2
- Shelves- 2
- Work Surface- Antimicrobial coated stainless steel and aluminum
- Exterior Dimensions (W x D x H):
- Workstation- 32.5 x 24.25 x 39 in. (826 x 616 x 991 mm)
- Cabinet- 27 x 20 x 35 in. (686 x 508 x 889 mm)
- Interior Dimensions (W x D x H):
- Workstation- 31 x 21.5 x 29 in. (787 x 546 x 737 mm)
- Cabinet- 25 x 17 x 29 in. (635 x 432 x 737 mm)
- 254nm UV irradiation to achieve efficient decontamination
- Easy-clean antimicrobial coating on the stainless steel and aluminum surfaces doubles up the attack on PCR contaminants
- Safety shut-off switch automatically turns the UV light off when door is opened
- Makrolon® panels block all UV light below 400nm
- Built-in power outlets for operation of equipment inside the Workstation
- Touch screen interface to control all system functions
- Choice of HEPA or non-HEPA system configurations based on customer needs
- HEPA models only: 3 layers of UV irradiation + air filtration/circulation to ensure maximum decontamination, Carbon pre filter with long-life UV, HEPA filter with standard UV lamps, and Recirculator with long-life UV
- Unique folding assembly that takes as little as 20 minutes
- Quick and easy filter and lamp replacement as well as service
