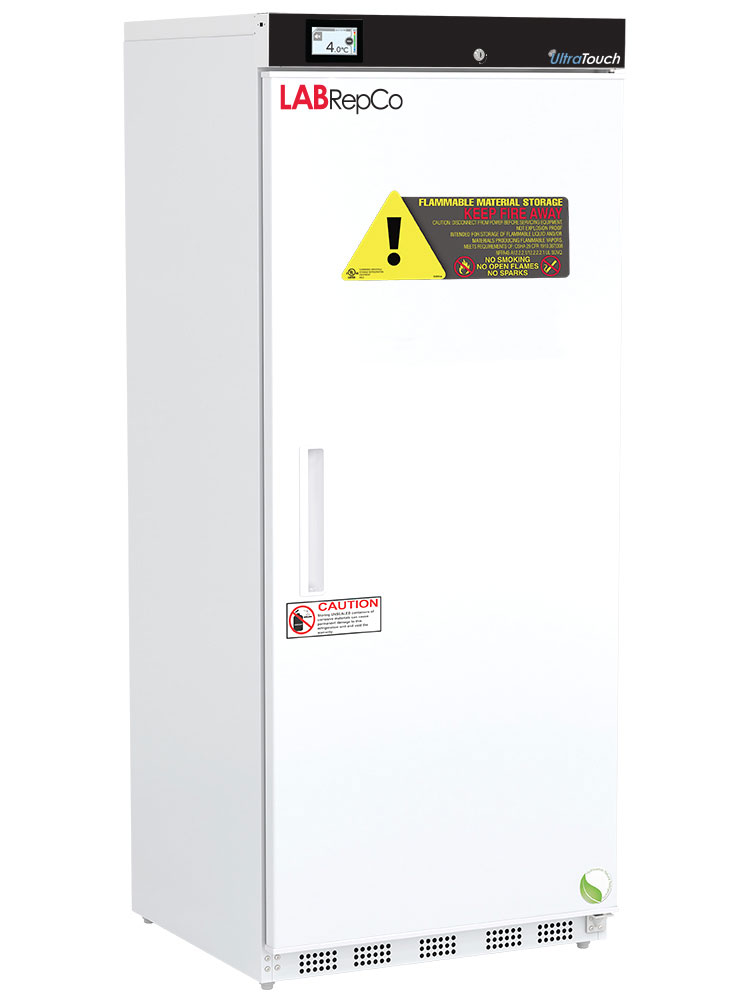

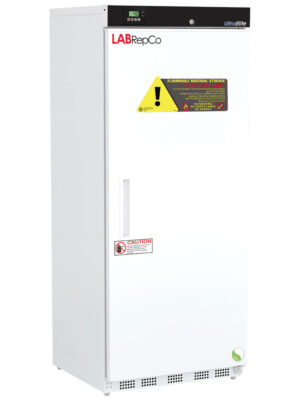

Ultra Touch Series Flammable Materials Storage 20 Cu. Ft. Laboratory Refrigerator | Solid Door
Item#: LHT-20-RFPThe Ultra Touch Series model LHT-20-RFP Flammable storage refrigerators meet the requirements of NFPA 45 and NFPA 30 for cold storage of flammable and combustible materials in unclassified laboratory locations. Utilizes non-sparking and/or ATEX rated components to ensure an intrinsically safe interior for flammable materials in sealed containers. These units feature temperature alarms, keyed door locks, interior shelving, probe access, and microprocessor temperature control. The LabRepCo Ultra Touch Series refrigerators showcase features that include state-of-the-art touchscreen controllers, advanced alarms and data logging capabilities and unparalleled temperature control. All units run on natural, hydrocarbon refrigerant for environmental health and energy efficiency.
$9,480.00 $7,299.60
- Storage capacity (cu. ft): 20
- Exterior Dimensions: 30 7/8" W x 28 3/4"D x 76 3/8"H
- Interior Dimensions: 24 3/4" W x 20 3/4"D x 65 1/4"H
- Door: Solid, right hinged, magnetic door gasket for positive seal

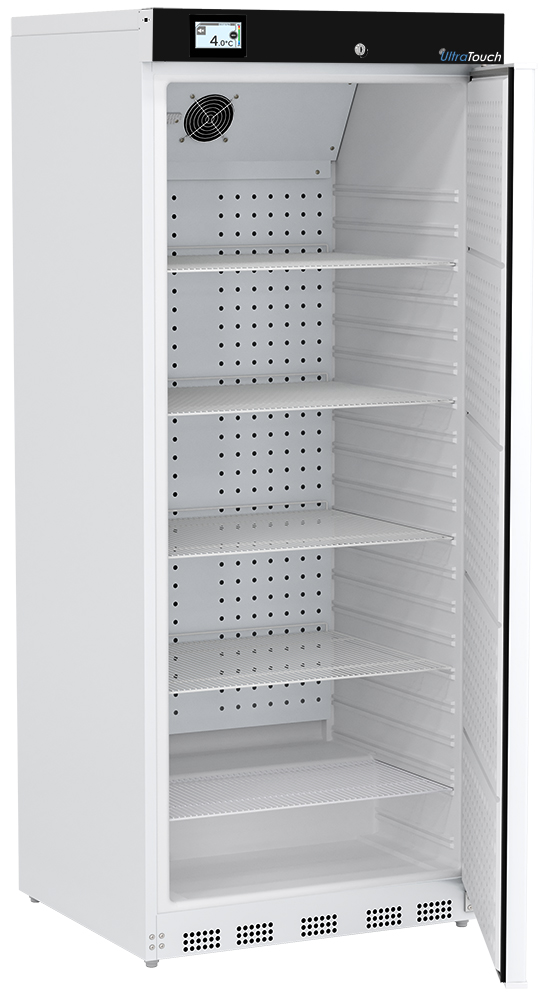

- Shelves: 5 Adjustable (4 full plus half shelf)
- External probe access: Rear wall port (3/4") dia.
- Product Weight (lbs): 252
- Shipping Weight (lbs): 277
- Rated Amperage: 3 Amps
- Power Plug/Power Cord: NEMA 5-15 Plug, conforms to UL471 requirements
- Facility Electrical Requirement: 115V, 60 Hz
- Agency Listing and Certification: ETL Listed
- Refrigerant: R600a
- Defrost: Cycle
*Specifications are subject to change
- Door: Solid, right hinged, magnetic door gasket for positive seal
- Shelves: 5 Adjustable (4 full plus half shelf)
- Freezer Compartments: Non-applicable
- Baskets: Non-applicable
- Mounting: Leveling Legs
- Interior lighting: Non-applicable
- Airflow management: Forced draft circulation
- External probe access: Rear wall port (3/4") dia.
- Insulation: Cabinet is foamed-in-place with EPA compliant high density urethane foam
- Exterior materials: White powder coated steel
- Access Control: Keyed door lock
- Warranty:
- General warranty: Three (3) year parts and labor warranty
- Compressor Parts Warranty: Five (5) year compressor parts warranty
- Warranty Disclaimer: Products require 4” of clearance around back and sides of the unit for proper ventilation - improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
Controller Features:
- Controller technology: Microprocessor temperature controller with digital temperature display, °C/°F switchable
- Display technology: Touch screen digital temperature display with user friendly interface, real-time operational display clock, active temperature scale bar display, resettable 1-point min/max history, digital 24-hour temperature chart, and temperature data logging
- Adjustable Temperature Range: +1°C to +10°C
- External alarm connection: State switching remote alarm contacts
- Alarms: Adjustable alarm volume, Audible and visual high and low temperature alarms, sensor error alarm, power failure alarm, door ajar alarm, low battery alarm, alarm validation (audible, visual, and remote alarm), alarm mute with ring back, and customizable alarm time delay settings
- Controller probe: 2 Probes; 1 in air and 1 in sample bottle
- Disclaimers: These units are NOT designed for use in environments where volatile/explosive conditions could potentially exist Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH
-

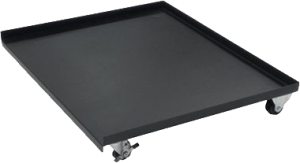

Swivel Caster Platform for 14 cu. ft. Ultra & Silver Series Models
