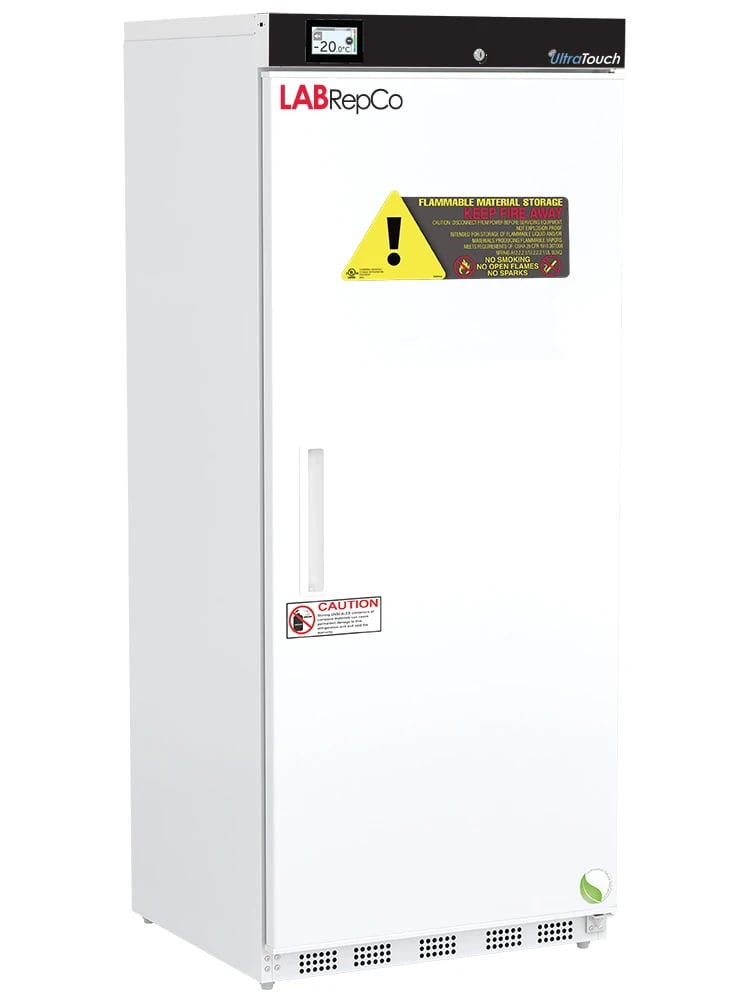

Ultra Touch Series 20 Cu. Ft. Flammable Material Storage Freezer (-20°C) | Manual Defrost
Item#: LHT-20-FFPThe LabRepCo Touch Series model LHT-20-FFP Flammable storage freezers meet the requirements of NFPA 45 and NFPA 30 for cold storage of flammable and combustible materials in unclassified laboratory locations. Utilizes non-sparking and/or ATEX rated components to ensure an intrinsically safe interior for flammable materials in sealed containers. These units feature temperature alarms, keyed door locks, interior shelving, probe access, and microprocessor temperature control. The Ultra Touch Series freezers features include state-of-the-art touchscreen controllers, advanced alarms and data logging capabilities and unparalleled temperature control. All units run on natural, hydrocarbon refrigerant for environmental health and energy efficiency.
$10,012.00 $7,709.24
- Storage capacity (cu. ft): 20
- Exterior Dimensions: 30 7/8" W x 28 3/4"D x 76 3/8"H
- Interior Dimensions: 23 1/8" W x 20 1/2"D x N/A"H
- Door: Solid, right hinged, magnetic door gasket for positive seal

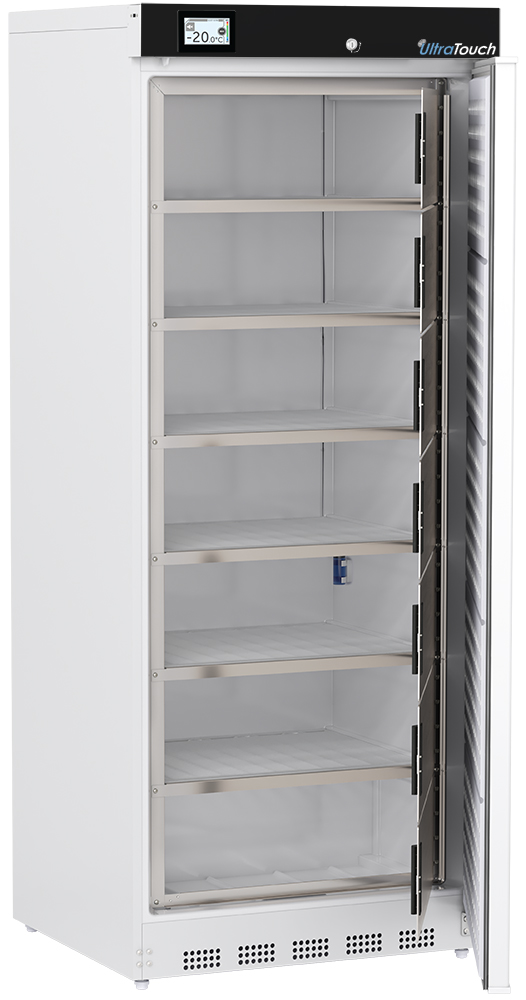

- Shelves: 6 fixed

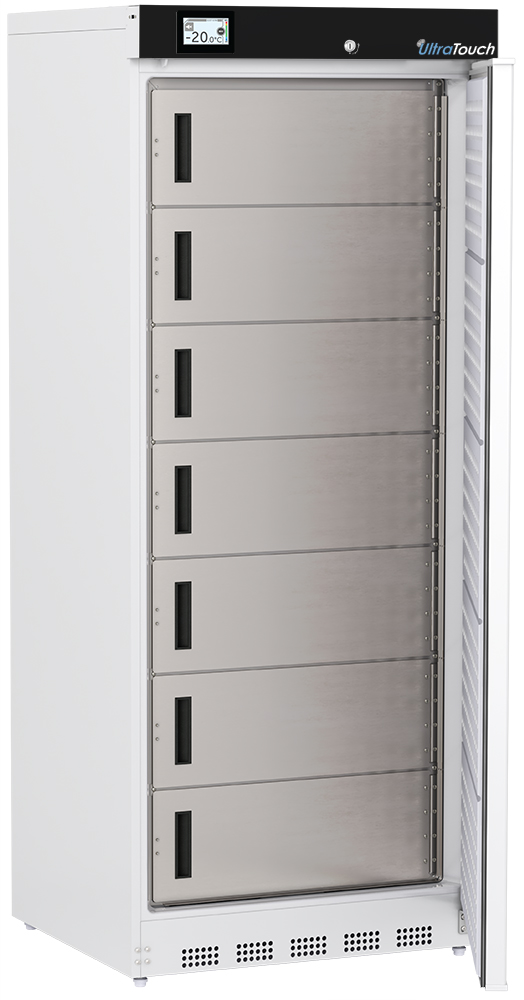

- Freezer Compartments: 7 inner doors
- External probe access: Rear wall port (3/4") dia.
- General warranty: Three (3) year parts and labor warranty
- Compressor Parts Warranty: Five (5) year compressor parts warranty
- Warranty Disclaimer: Products require 4” of clearance around back and sides of the unit for proper ventilation - improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
- Product Weight (lbs): 262
- Shipping Weight (lbs): 287
- Rated Amperage: 6 Amps
- Power Plug/Power Cord: NEMA 5-15 Plug, conforms to UL471 requirements
- Facility Electrical Requirement: 115V, 60 Hz
- Agency Listing and Certification: ETL Listed
- Refrigerant: R290
- Defrost: Manual
*Specifications are subject to change
- Door: Solid, right hinged, magnetic door gasket for positive seal
- Shelves: 6 fixed
- Freezer Compartments: 7 inner doors
- Baskets: Non-applicable
- Mounting: Leveling Legs
- Interior lighting: Non-applicable
- Airflow management: Non-applicable
- External probe access: Rear wall port (3/4") dia.
- Insulation: Cabinet is foamed-in-place with EPA compliant high density urethane foam
- Exterior materials: White powder coated steel
- Access Control: Keyed door lock
- General warranty: Three (3) year parts and labor warranty
- Compressor Parts Warranty: Five (5) year compressor parts warranty
- Warranty Disclaimer: Products require 4” of clearance around back and sides of the unit for proper ventilation - improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
Controller Features:
- Controller technology: Microprocessor temperature controller with digital temperature display, °C/°F switchable
- Display technology: Touch screen digital temperature display with user friendly interface, real-time operational display clock, active temperature scale bar display, resettable 1-point min/max history, digital 24-hour temperature chart, and temperature data logging
- External alarm connection: State switching remote alarm contacts
- Alarms: Audible and visual high and low temperature alarms, sensor error alarm, power failure alarm, alarm validation (audible, visual, and remote alarm), and alarm mute with ring back
- Controller probe: 2 Probes; 1 in air and 1 in sample bottle
- Disclaimers: These units are NOT designed for use in environments where volatile/explosive conditions could potentially exist. Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH
*Defrosting of the unit will need to be performed periodically to prevent severe ice build-up
