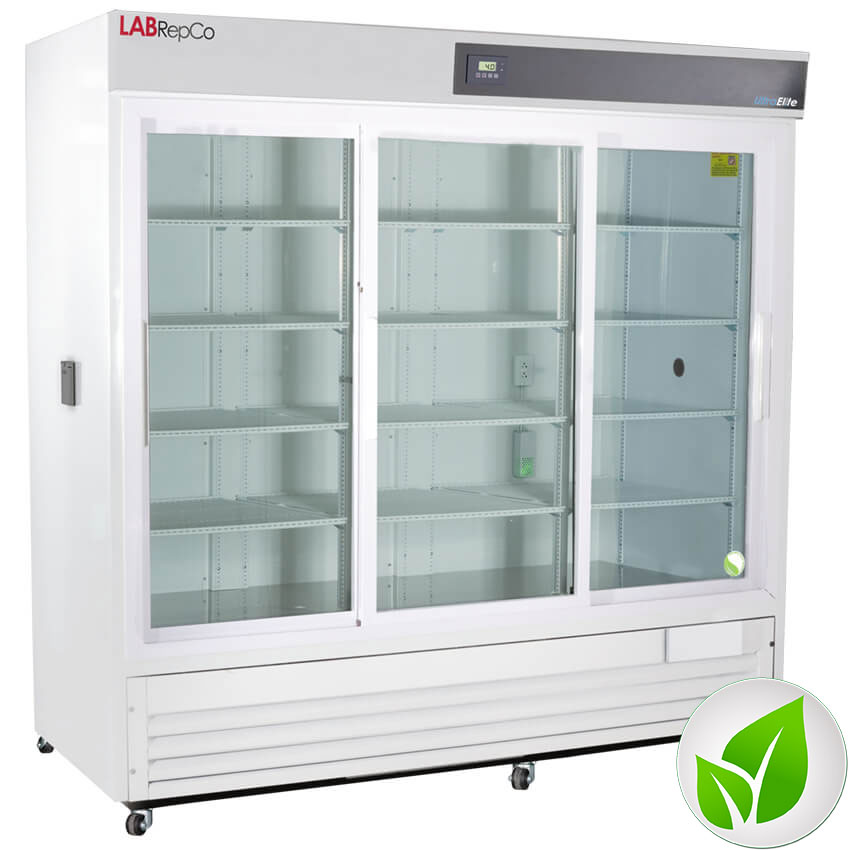

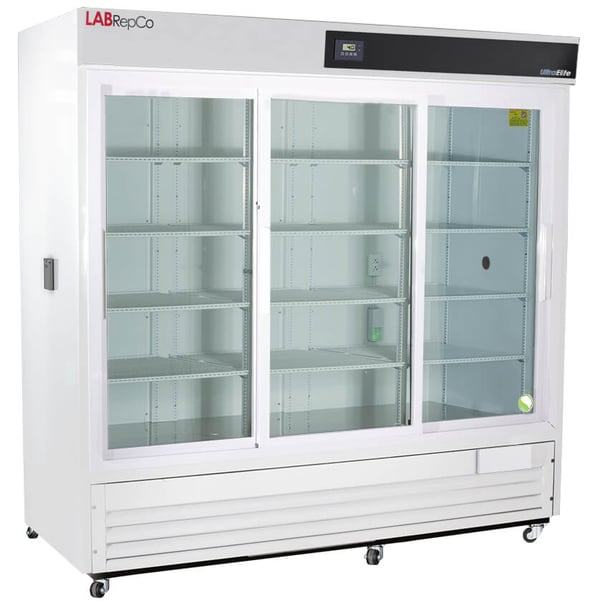

Ultra Elite Series 69 Cu. Ft. Chromatography Refrigerator | Sliding Glass Door
Item#: LHE-HC-69CThe ULTRA ELITE Series glass door chromatography refrigerators are ideal for chromatography applications in the laboratory research and clinical markets requiring a more rigorous temperature control. Constructed with sample security in mind, these general-purpose upright refrigerators feature audible & visual high/ low temperature alarms and remote alarm contacts for complete temperature control and awareness. The LHE-HC-69C comes standard with one glass door, digital temperature display & alarm module, microprocessor controller, LED interior lights, one duplex outlet, two 2” access ports, and a 3/4” probe access port.
$15,924.00 $12,261.48
- Cu. Ft.: 69
- Door(s): Three sliding glass doors, self-closing (energy efficient, double pane vacuum insulated)
- Color: White powder-coated steel interior and exterior
- Heavy duty door handle
- Temperature Range: Adjustable operating temperature range: 1°-10°C
- Exterior Dimensions: 82 1/2” W* x 33 1/4” D x 78 ¼” H without casters; 81 ¾” H without casters. *Width w/access ports closed; 90 1/2” width w/access ports open
- Interior Dimensions: 76" W* x 24 3/4" D x 52 1/4" H
- Alarm: Audible and visual high/low temperature alarms

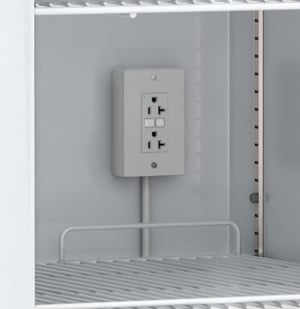

- One GFCI protected duplex electrical outlet
- Magnetic door gasket for positive seal
- Two 2” access ports with spring loaded self-closing, gasketed metal covers
- Probe access port (3/4")
- Shelves: 12 adjustable shelves (adjustable in ½" increments)
- Electrical Requirements: 115V, 60Hz ; 7.5 amps ; 1/2 HP
- ETL listed
- Shipping Weight: 283 lbs.
Note: This unit requires two (2) outlets
- Cycle defrost
- Microprocessor Temperature Controller

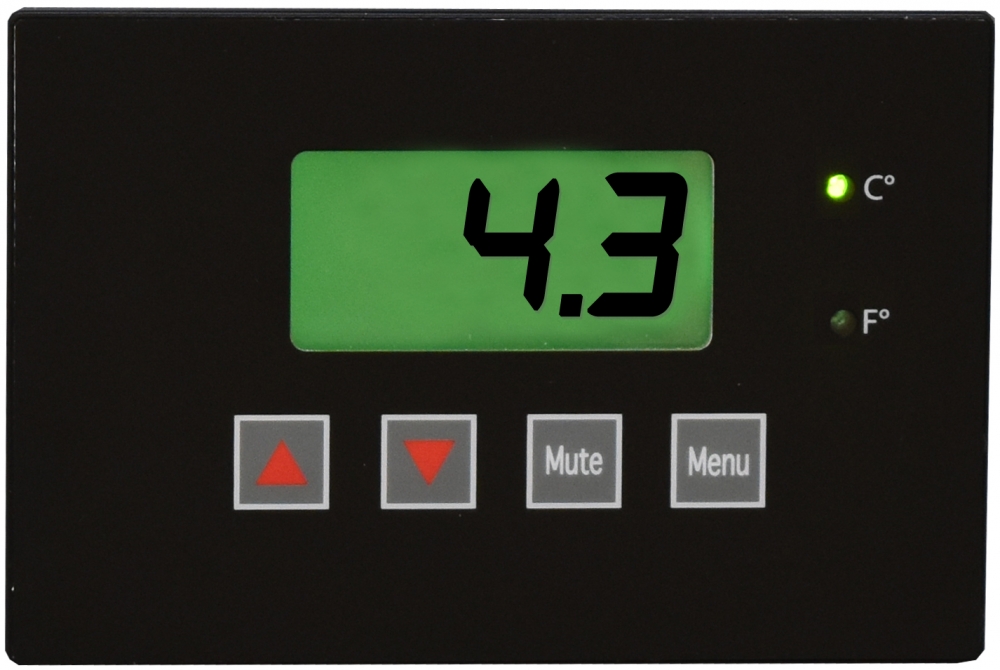

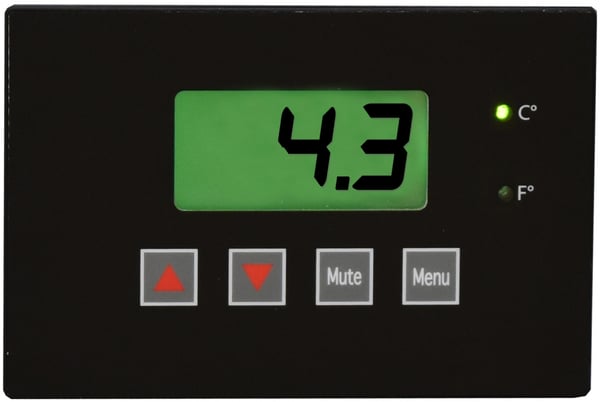

- Digital Temperature Display and Alarm Module
- Sample simulated digital temperature display; .1° Resolution
- Adjustable temperature display in Celsius or Fahrenheit

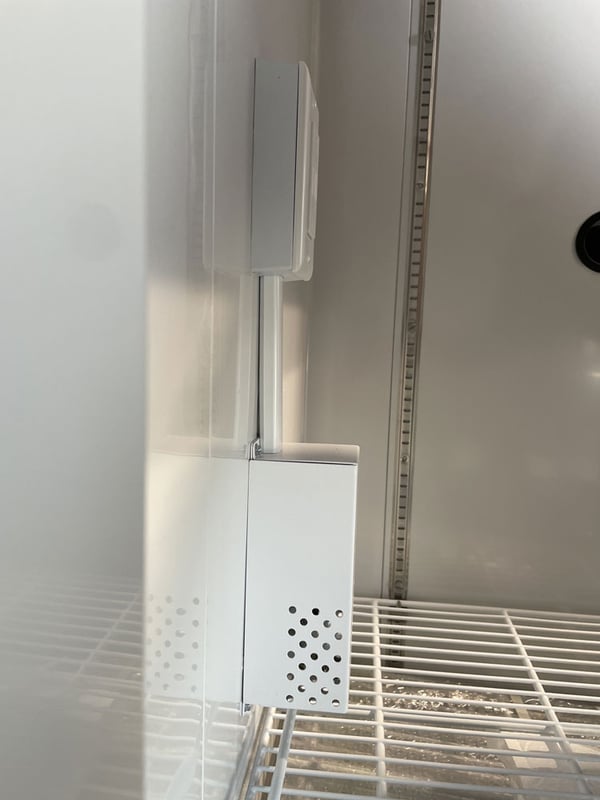

- 2 probes; 1 in air and 1 in sample bottle
- Audible and visual high/low temperature alarms
- Sensor error alarm
- Power failure alarm
- Resettable 1-point min/max history
- Remote alarm contacts
- Alarm validation (audible, visual, and remote alarm)
- Alarm mute with ring back
- Magnetic door gasket for positive seal
- Heavy duty door handles
- Swivel casters (3 ½”)
- 12 adjustable shelves (adjustable in ½” increments)
- LED interior lights are safety shielded and switch controlled
- Keyed Door Lock
- One GFCI protected duplex electrical outlet
- Two 2” access ports with spring-loaded, self-closing gasketed metal covers
- Probe access port (3/4”)
- Advanced hydrocarbon detector
- High density urethane foam cabinet insulation
- Hydrocarbon, natural refrigerant (R290)
- Forced draft air circulation
- ETL listed
- Warranty: 2 years parts and labor, plus an additional 3 years compressor parts only
Note: This unit requires two (2) outlets
LHE-HC-69C Exterior Cutsheet
DownloadLHE-HC-69C Interior Cutsheet
DownloadLabRepCo Ultra Series Chromatography Refrigerators Literature
DownloadOwners Manual for LabRepCo Ultra Elite Series Pharmacy, Laboratory, and Chromatography Glass Door Refrigerators
Download-
NIST Traceable® Memory-Loc™ Refrigerator/Freezer Data Logging Thermometer for Vaccine Storage (2 probes)
Item #: LABC3-6441-3$209.00$198.55 -
Custom UPS Battery Backup Systems
Item #: BATTERYBACKUP -
Additional middle shelf for LabRepCo Ultra Series 69 cu. ft. Sliding Glass Door Laboratory Refrigerators
Item #: LHP-MSHELF-69$238.00$183.26 -

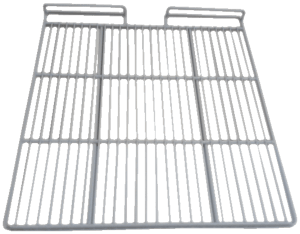

Additional shelf for LabRepCo Ultra Series 69 cu. ft. Sliding Glass Door Laboratory Refrigerators
