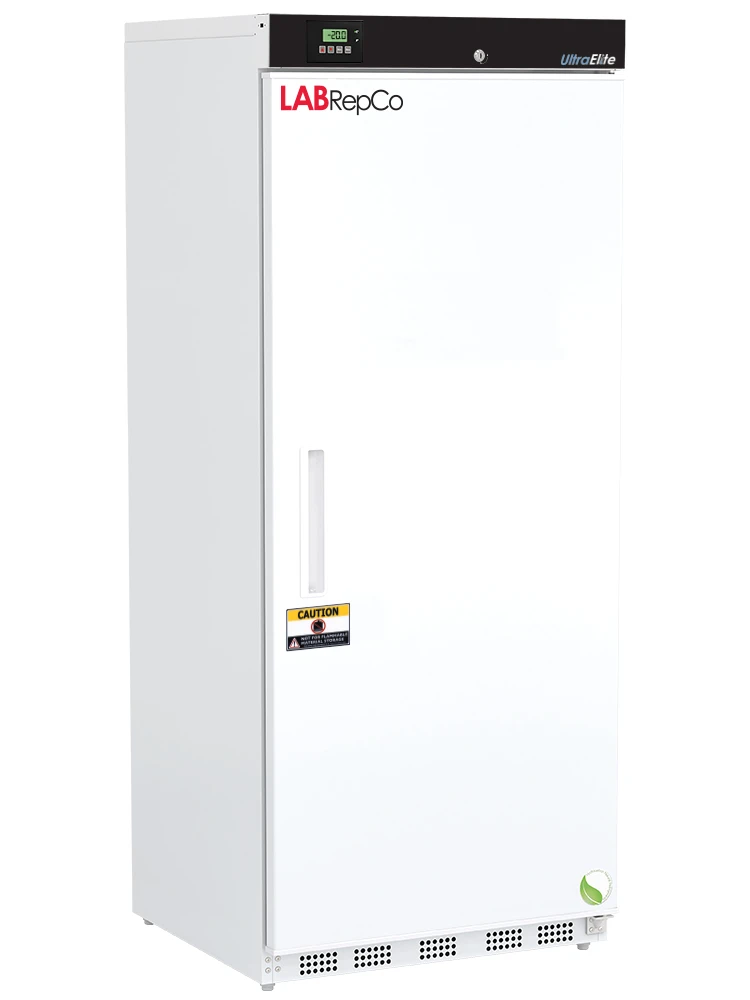

Ultra Elite Series 20 Cu. Ft. Laboratory Freezer (-20C) | Manual Defrost

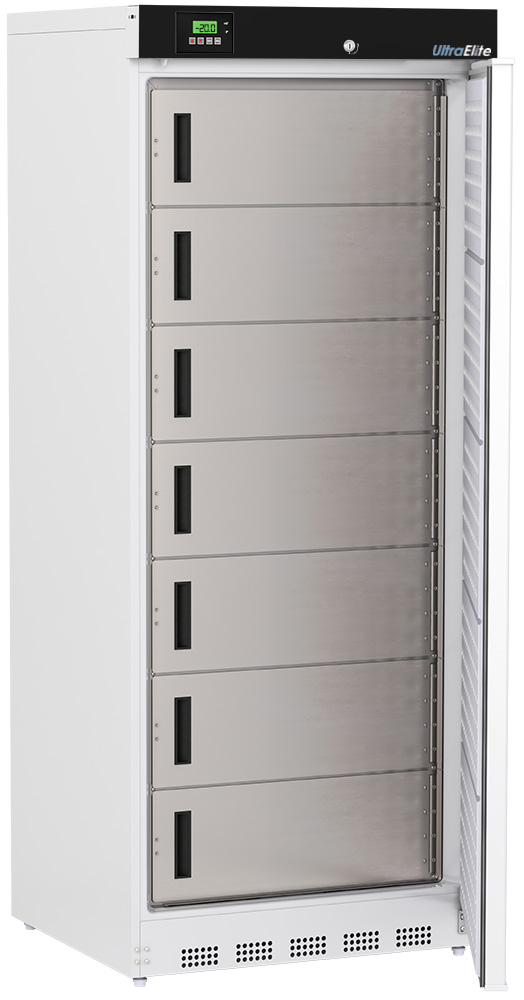

Item#: LHE-20-FMPThe Ultra Elite Series manual defrost laboratory freezers are designed for many different applications in the research market requiring more rigorous temperature control and construction features. This unit features one solid door, (7) inner doors, (6) fixed shelves microprocessor temperature controller with audible and visual alarms, remote alarm contacts, digital temperature display, key door lock and Hydrocarbon Refrigerants.
$7,288.00 $5,611.76
- Cu. Ft. 20
- Door: One solid swing door, right hinged
- Adjustable operating temperature range: -15°C to -25°C
- Exterior Dimensions: 30 7/8" W x 28 3/4” D x 76 3/8"H
- Interior Dimensions: 23 1/8"W x 20 1/2” D (for height see specification sheet)
- Alarm: Audible and visual high/low temperature alarms
- Remote alarm contacts
- 2 probes: 1 in air and 1 in sample bottle
- Leveling legs

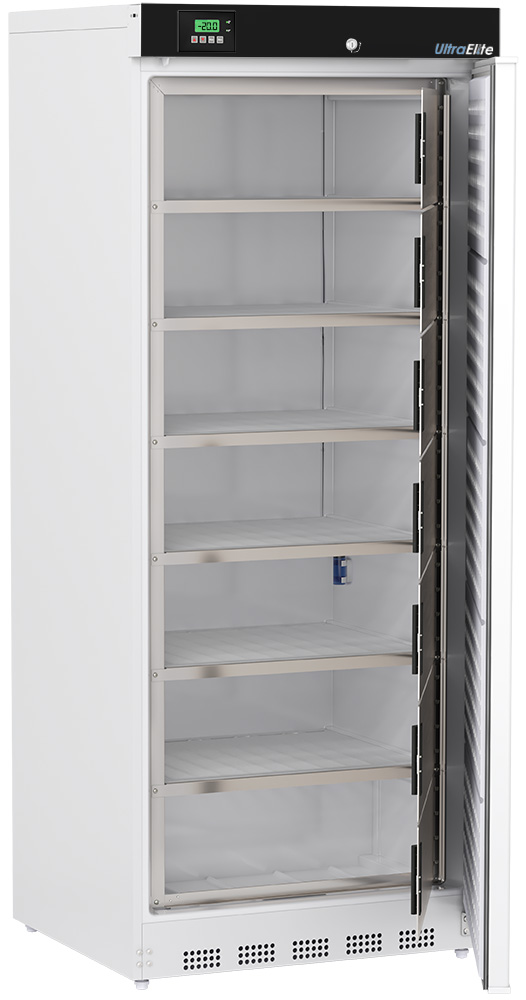

- Shelves: (6) fixed
- Inner doors: (7)
- Keyed door lock
- Electrical Requirements: 115V, 60Hz, 6 amps
- Product Weight: 261
- Shipping Weight: 286 lbs
Disclaimers:
- Defrosting of the unit will need to be performed periodically to prevent severe ice build-up
- Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH
- Specifications are subject to change
- Manual Defrost
- Microprocessor temperature controller:
- Digital temperature display, °C/°F switchable
- Bi-Colored LED display and alarm module with .1°C resolution, touchpad controls, resettable 1-point min/max history
- Adjustable operating temperature range: -15°C to -25°C
- External alarm connection: State switching remote alarm contacts
- Alarms:
- Audible and visual high and low temperature alarms
- Sensor error alarm
- Power failure alarm
- Alarm validation (audible, visual, and remote alarm)
- Alarm mute with ring back
- Leveling legs
- Keyed door lock
- Magnetic door gasket for positive seal
- Cabinet is foamed-in-place with EPA compliant high-density urethane foam
- Probe access port (3/4")
- White powder coated steel exterior
- HFC-free refrigerant (R290), foam insulation and packaging.
- ETL Listed
- Warranty: 2 years parts and labor, 5 years compressor parts
Note: Products require 4” of clearance around back and sides of the unit for proper ventilation - improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
LHE-20-FMP Data Sheet
