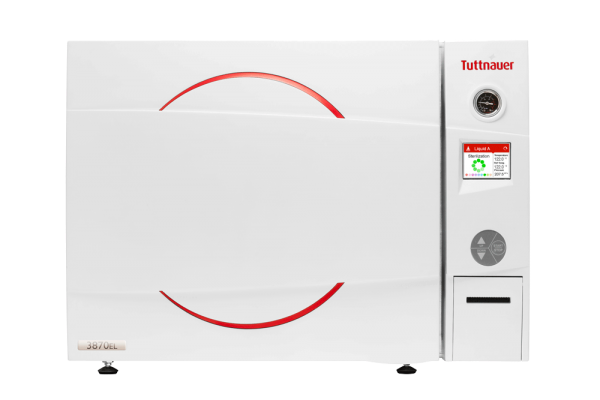

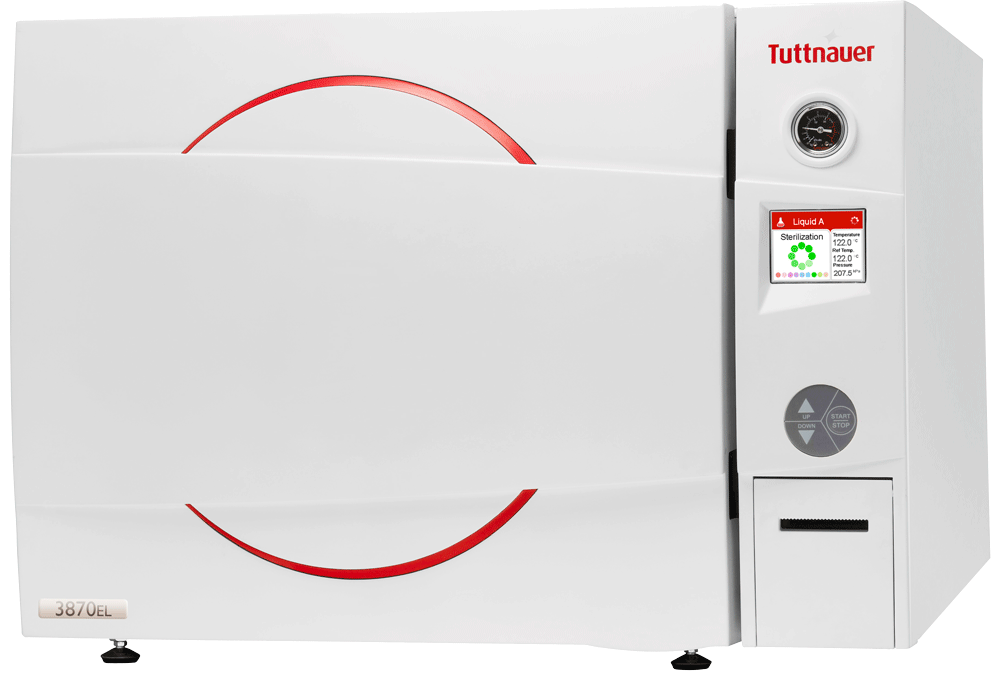

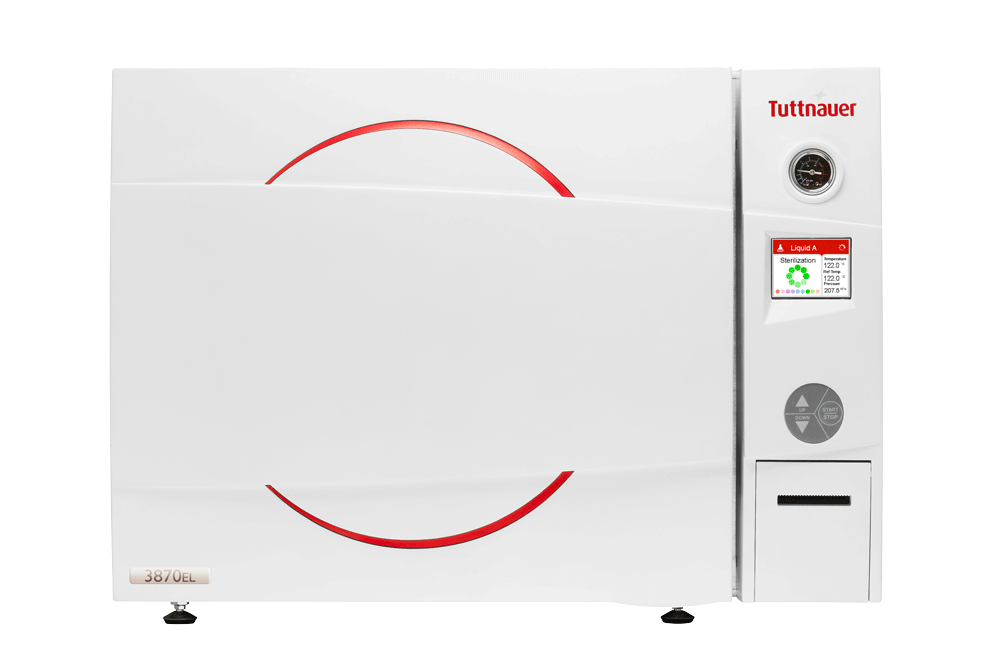

Tuttnauer Benchtop Laboratory Autoclaves Model 3870EL (230V)
Item#: 023210672Tuttnauer* benchtop laboratory autoclaves are front loading autoclaves available in chamber sizes from 28 to 160 liters. EL models have an advanced multi-color control panel and a chamber made of 316L or 316Ti stainless steel. Tuttnauer laboratory autoclaves have been designed to provide high quality repeatable performance and accountability for a wide range of applications used in modern laboratories. Each model has a number of optional added-value features which can be configured for fast cooling, efficient drying, biohazard and waste sterilization, FO control, and more.
*Distributed in the US under Heidolph
$24,940.61 $23,693.58
- Product Specifications
- Product Features
- Literature & Manuals
- Product Videos
- Product Accessories
- Request a Proposal
- Chamber Dimensions ØxD (mm): 380 x 690
- Chamber Volume(Liter): 85
- External Dimensions WxHxD (mm/in.): 720 x 540 x 940/28 x 21 x 37
Erlenmeyer Flasks (ml) Loading Capacity (model):
- 250: 1 x 23
- 500: 1 x 17
- 1000: 1 x 10
- 2000: 1 x 5
- 3000: 0
- 5000: 0
Schott-Duran Flasks (ml) Loading Capacity (model):
- 250: 1 x 36
- 500: 1 x 23
- 1000: 1 x 18
- 2000: 1 x 9
- 3000: N/A
- 5000: 0
- FO software control
- PID (Proportional Integral Differential) pressure control
- Stores the last 200 cycles in built-in memory
- Two independent flexible PT100 temperature sensors to prevent over-boiling of liquids and explosions of bottles
- Up to 6 temperature sensors and 4 pressure sensors can be connected
- 30 Identification Codes and Passwords for access level control
- The controller and software comply with the 21 CFR part 11 standard
- Industry leading 3 year warranty
Innovative Multi-Color Display:
- Multi-color display for easier reading
- Color is used to indicate the stage of the cycle
- Quick access to important information
- 26 Languages
- Built-in view of historical cycle data
Documentation Package:
- An optional full documentation package is available:
- IQ – Installation Qualification
- OQ - Operation Qualifications
- PQ - Performance Qualification
