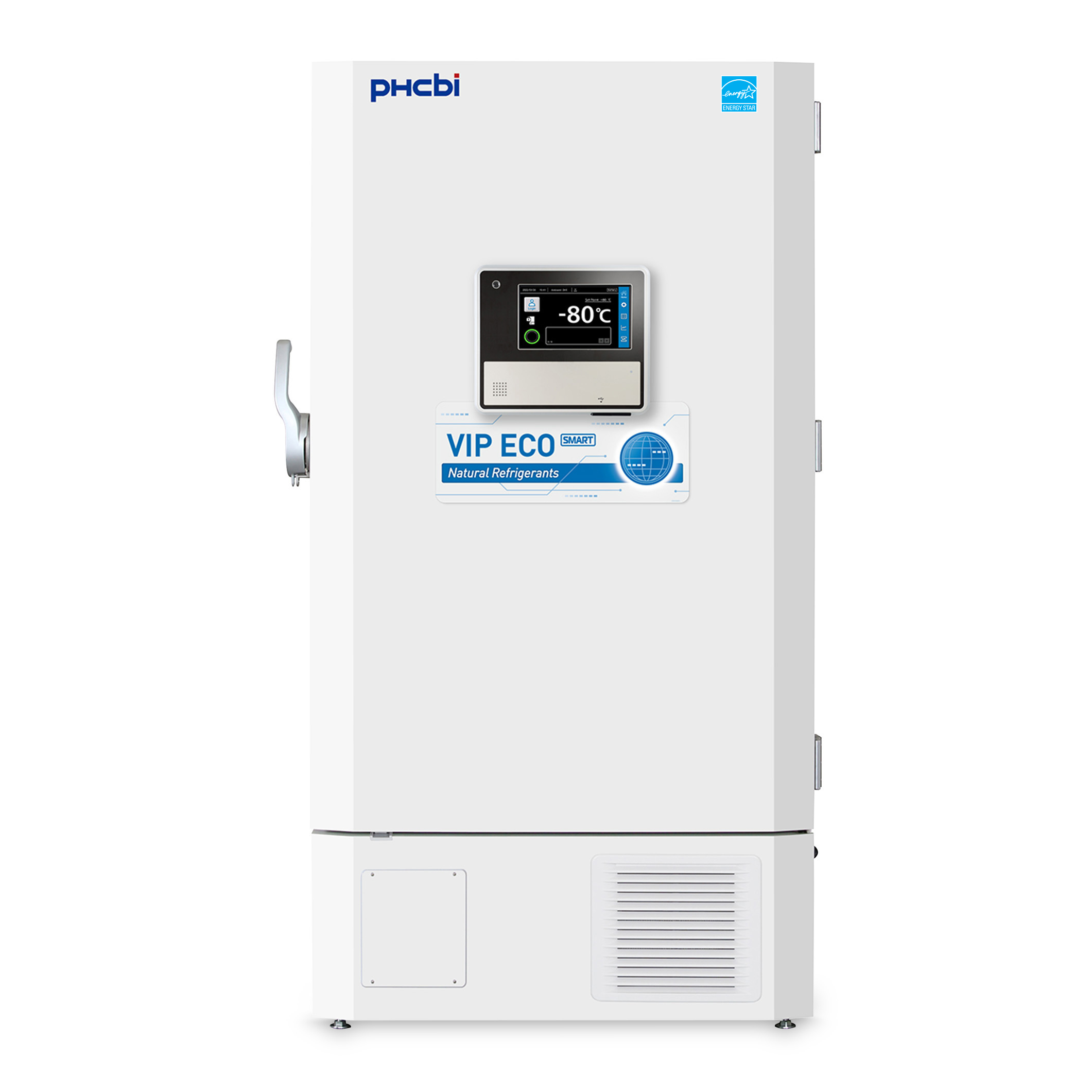

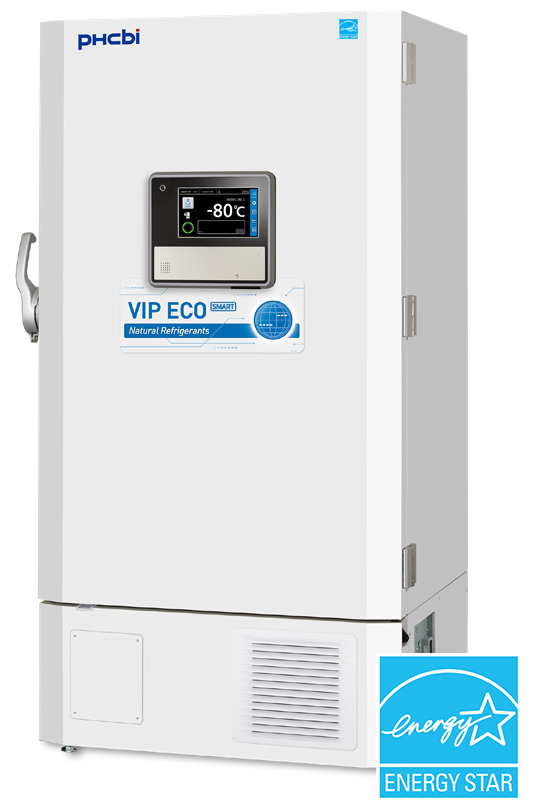

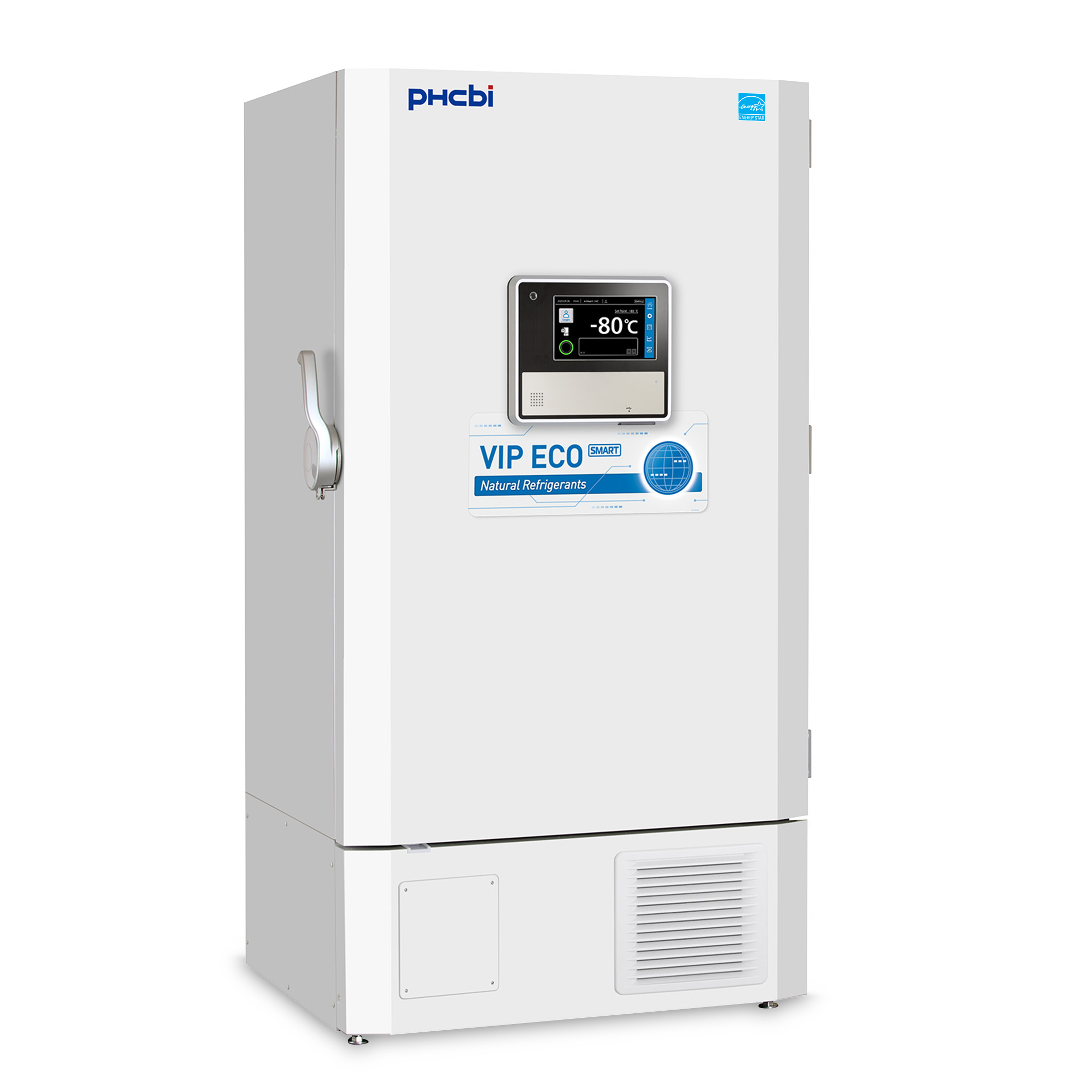

PHCbi VIP® ECO SMART Natural Refrigerant 25.7 Cu. Ft. Ultra-Low Temp Freezer (-86°C) | 115V | Capacity: 576 x 2″ Boxes
Item#: MDF-DU703VHA-PAThe MDF-DU703VHA-PA ENERGY STAR Certified VIP® ECO SMART ultra-low temperature freezers with natural refrigerants from PHCbi now deliver more energy efficient and dependable ultra-low temperature storage with forward performing cooling systems. The VIP® ECO SMART ULT freezers are the next generation of Ultra-Low Temp storage, offering the same reliability as the MDF-DU702VHA-PA models, with the addition of SMART performance. The Smart Performance not only features an upgraded control panel, but also features inverter driven compressors with SMART control that allow for superior uniformity by only running compressors at slower speed under steady state conditions. Proprietary algorithms give the control that allows extremely tight uniformity. All VIP® ECO ULT freezers are designed, tested and field-proven for safe, reliable storage of biologicals. Click here to view freezer rack configurations for this model
FREE SHIPPING ON ALL PHCBI BRAND EQUIPMENT
For a limited time only get FREE Dock-to-Dock freight on all PHCbi equipment. Contact us for a proposal!
- Product Specifications
- Product Features
- Literature & Manuals
- Product Videos
- Product Accessories
- Request a Proposal

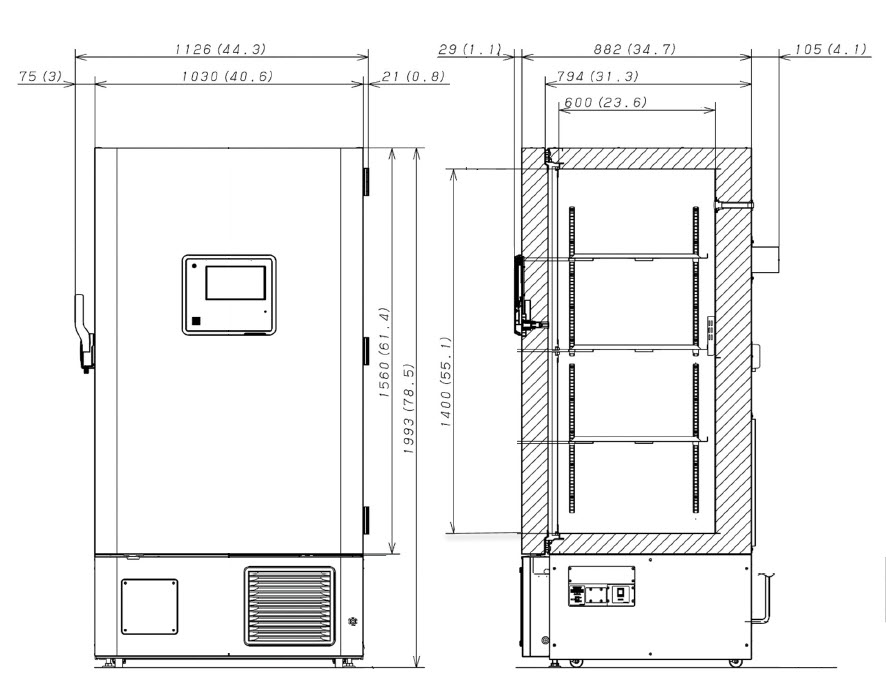

- External Dimensions (W × D × H): 40.6" × 34.7" × 78.5" | 1030mm × 882mm × 1993mm
- Internal Dimensions (W × D × H): 34.3" × 23.6" × 55.1" | 870mm × 600mm × 1400mm
- Volume: 25.7 cu. ft. (729 liters)
- Net Weight: 608 lbs (276 kg)
- Capacity (2" boxes): qty 576
- Capacity (3" boxes): qty 384
- Inventory Racks (2" boxes): qty 24
- Inventory Racks (3" boxes): qty 24
- Temperature Control Range: 40°C to -86°C
- Uniformity: +/-3°C (-80°C Set point)
- Power Consumption (kWh/Day): 5.4 (-80 °C Steady State)
- BTU Nominal: 768 Per Hour
- Noise Level: 52 dB(A)
- Power Supply: 115V, NEMA 5-15P, 60 Hz 8ft cord length
- Max Amps: 11
- Certification: QPS Listed and Energy Star
- Warranty: 5 years parts and labor
Control:
- Controller: Microprocessor with non-volatile memory, USB connectivity, IOT Ready
- Digital Temperature Display: LCD Touchscreen
- Controller Security: Screen lock w/ password protection, facial recognition, NFC
- Temperature Sensor: RTD
Refrigeration:
- Cooling Method: Cold Wall (Synchronized variable speed cascade system)
- Compressors (High Stage I Low Stage): 750 W Variable | 750 W Variable
- Refrigerant Type (Natural Refrigerant) High Stage I Low Stage: R-290 | R-170
- Insulation: Rigid polyurethane foam (PUF) + VIP Plus vacuum insulated panels
Construction:
- Exterior Material: Painted steel
- Interior Material: Painted steel
- Outer Door: qty 1 lock with set of 2 keys and electronic lock (provision for optional pad lock)

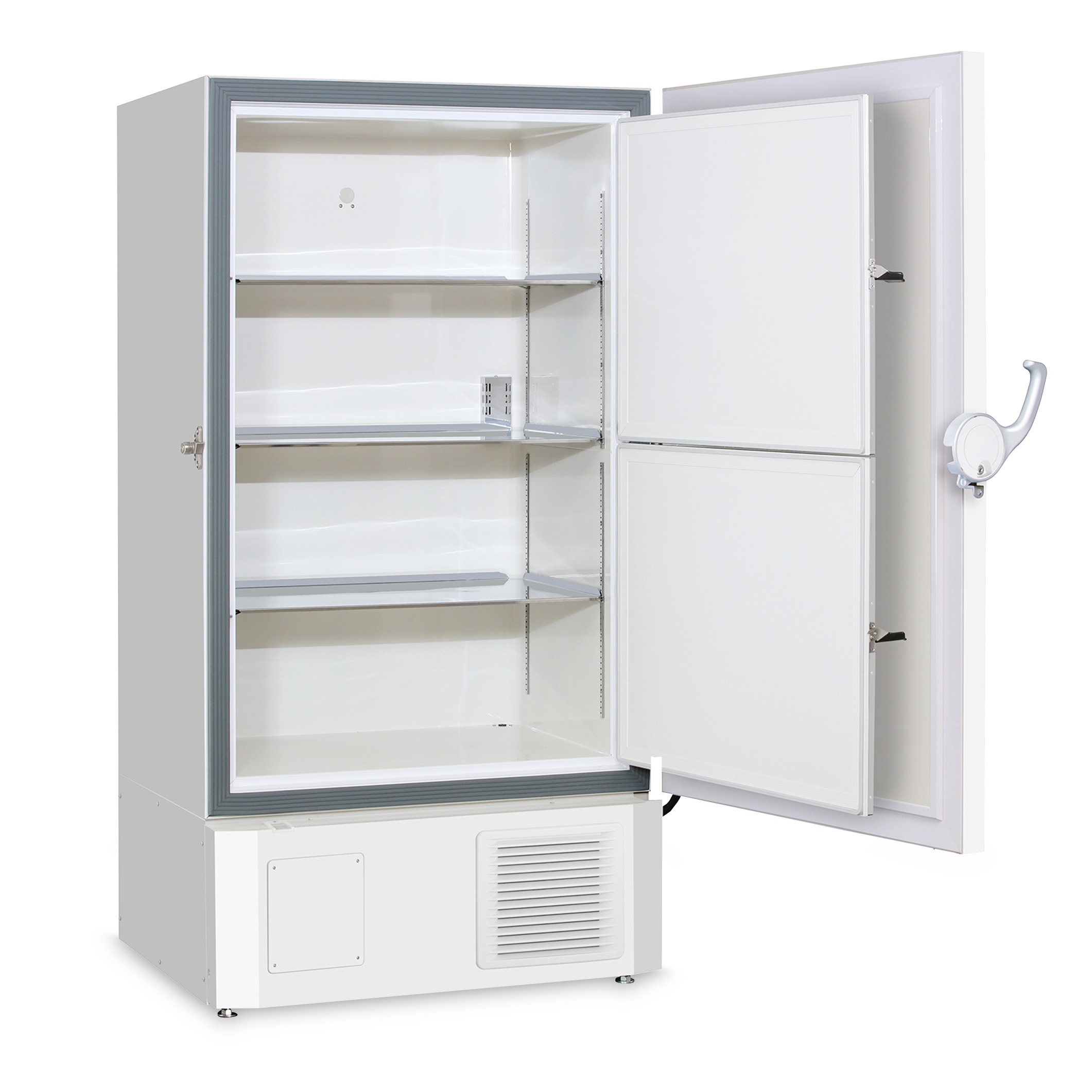

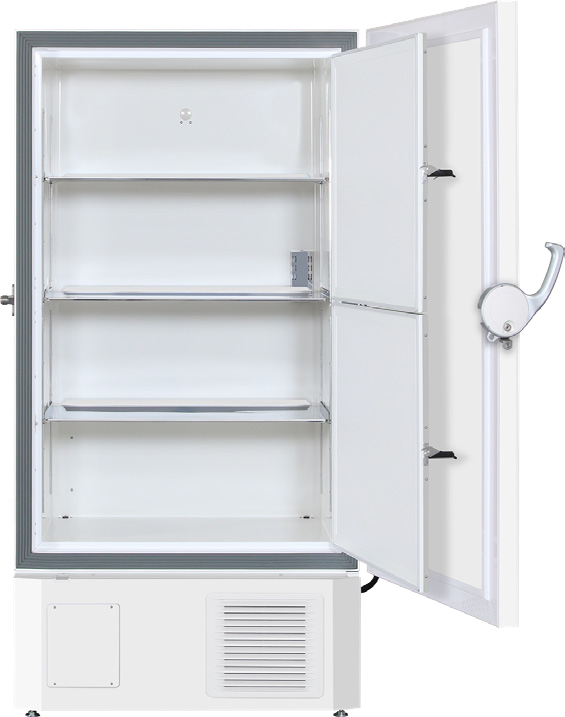

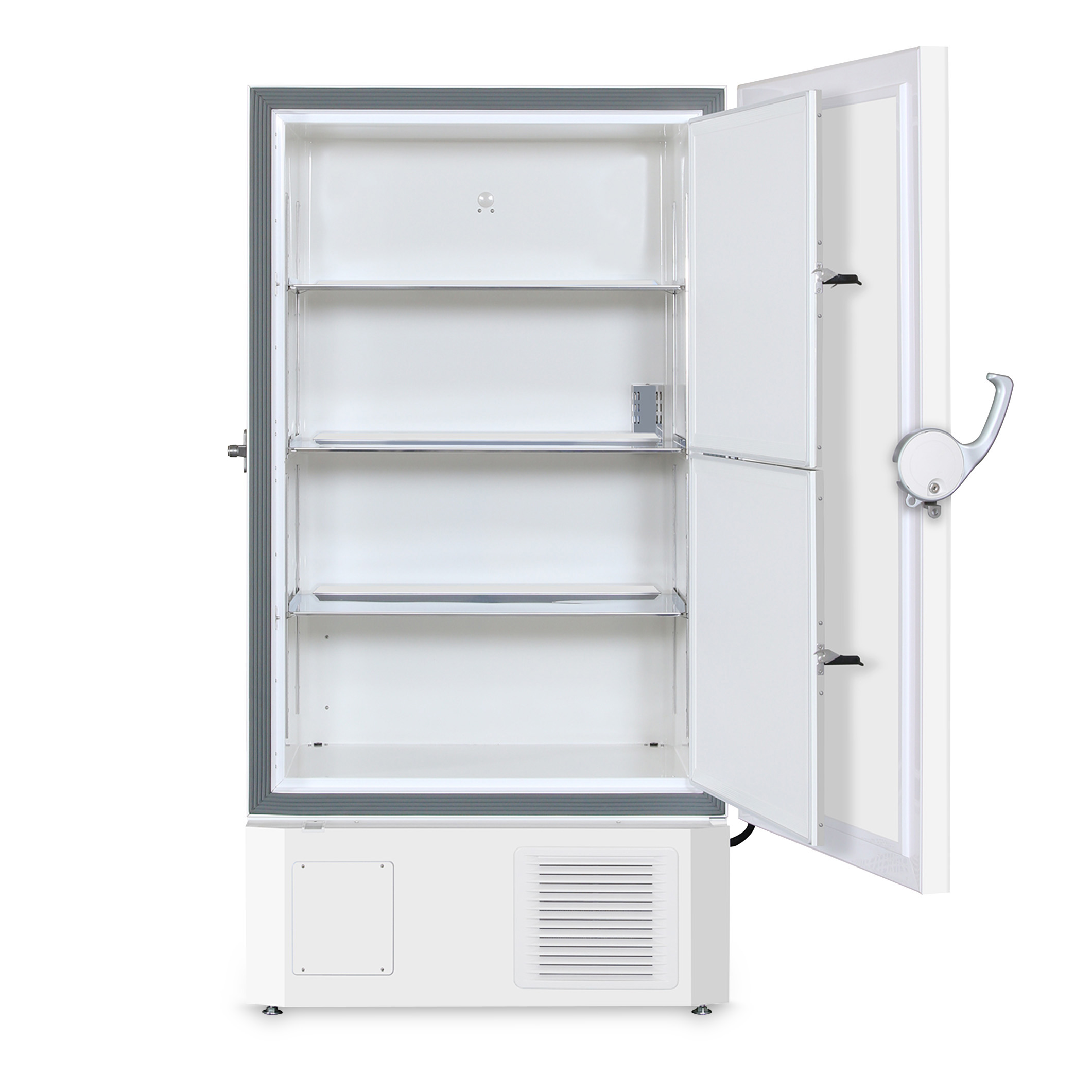

- Inner Doors: qty 2 insulated stainless steel with latch
- Shelves: qty 3 (adjustable)
- Shelf Dimensions (W × D): 33.7" × 21" (855 × 534mm)
- Max. Load per Shelf: 110 lbs (50 kg)
- Access Ports, Qty, Position, Diameter: qty 3: upper wall (back-up system), bottom left (recorder sensor), bottom right (access) 0.6 in | 17mm
- Casters | Leveling Legs: qty 4 | 2
- Vacuum Release: qty 1 Auto
- Performance & Reliability: Next generation engineering harnesses the power of inverter compressor technology to yield greater temperature uniformity. Reserve refrigeration power delivers fast temperature recovery following door openings. Performance and reliability are never compromised when it comes to storing your valued products.
- Industry's Lowest Energy Consumption:This freezer delivers lower energy consumption without compromising performance. The VIP ECO SMART uses 30% less energy than other leading
ENERGY STAR listed freezers.- 0.21 kWh/cu.ft. Daily Energy Consumption
- 5.4 kWh/day, Steady State at -80°C
- 4.5 kWh/day, Steady State at -70°C
- Temperature Uniformity:
- ±3.0°C at -80°C
- ±3.0°C at -70°C

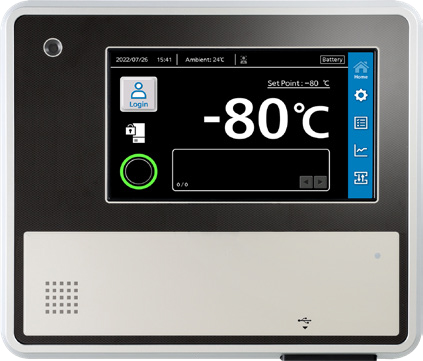

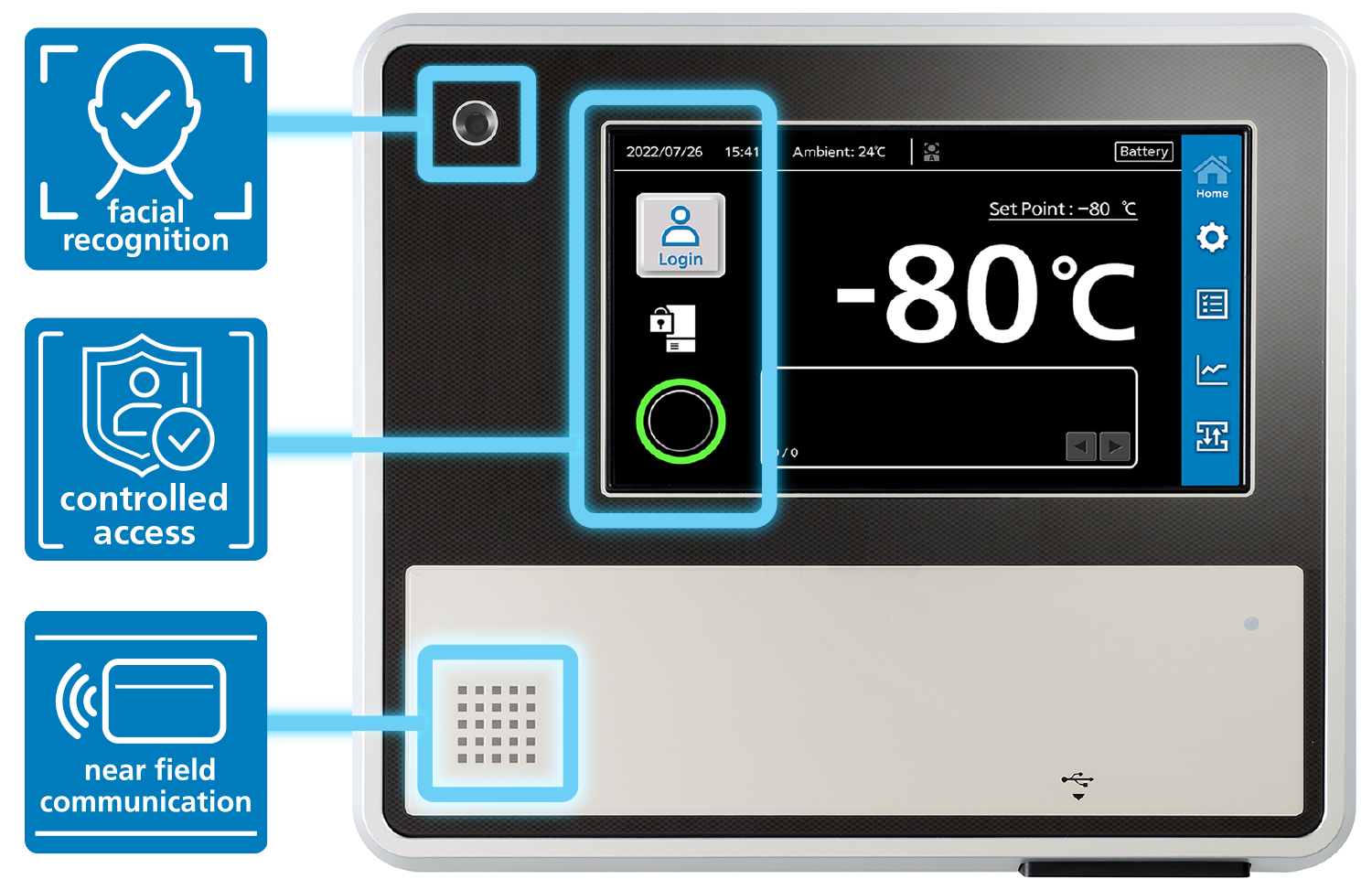

- Security Control and Monitoring: An eye level, door mounted 10.1 inches high resolution LCD touchscreen allows full user control. A USB port makes transferring logged data to a PC convenient. All performance attributes are displayed and an internal temperature log can be expressed in graphic form over time.

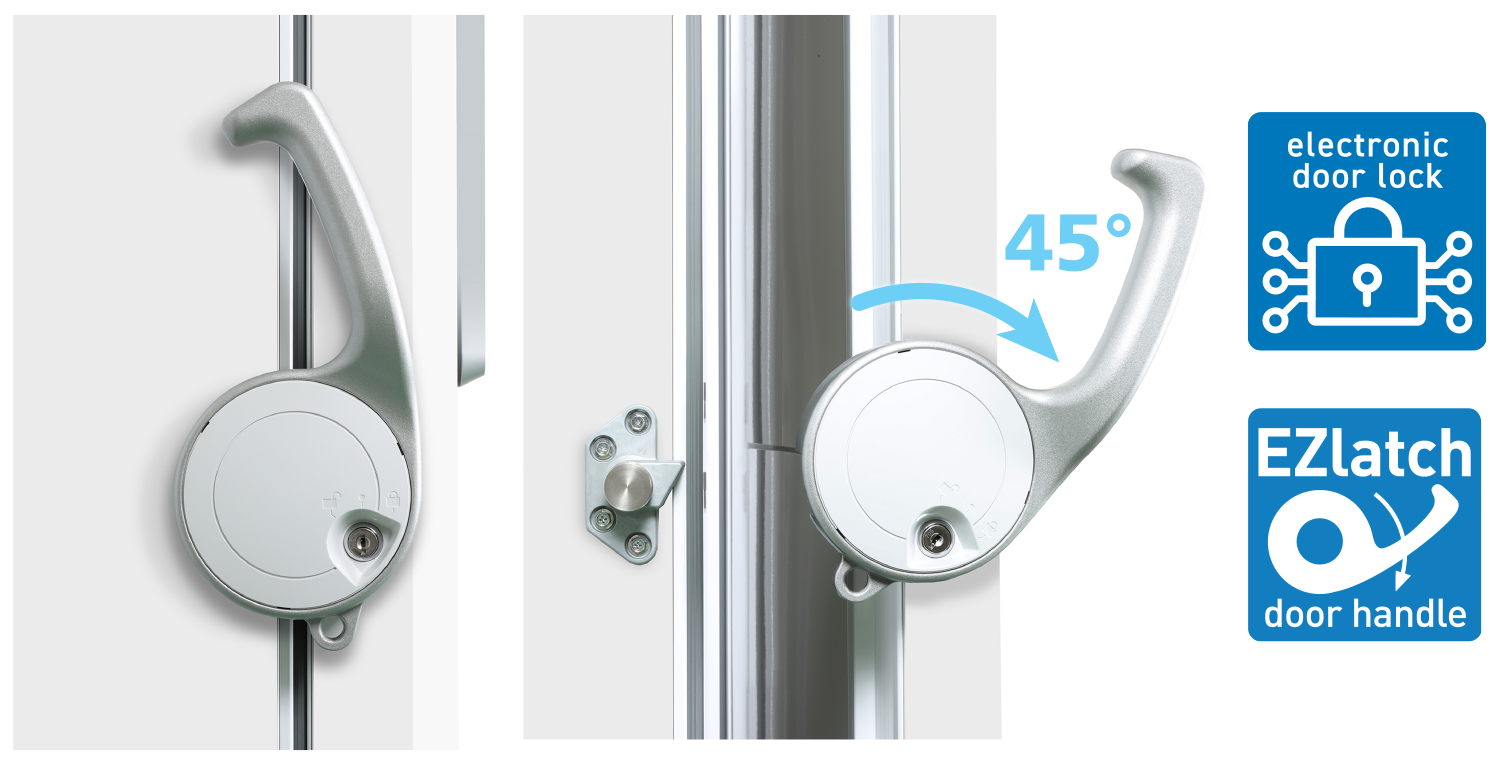

- Frost Mitigation: Simplified one-handed operation maintains the integrity of the door seal to assure energy efficiency, resulting in less frost build up and maintenance. Perimeter heater under the gasket allows for gentle warmth reducing ice buildup. The EZlatch handle is the centerpiece of a holistic access and frost mitigation system.
- Natural Refrigerants: Natural refrigerants minimize environmental impact and allow for greater efficiency, resulting in less energy consumption and less heat output.

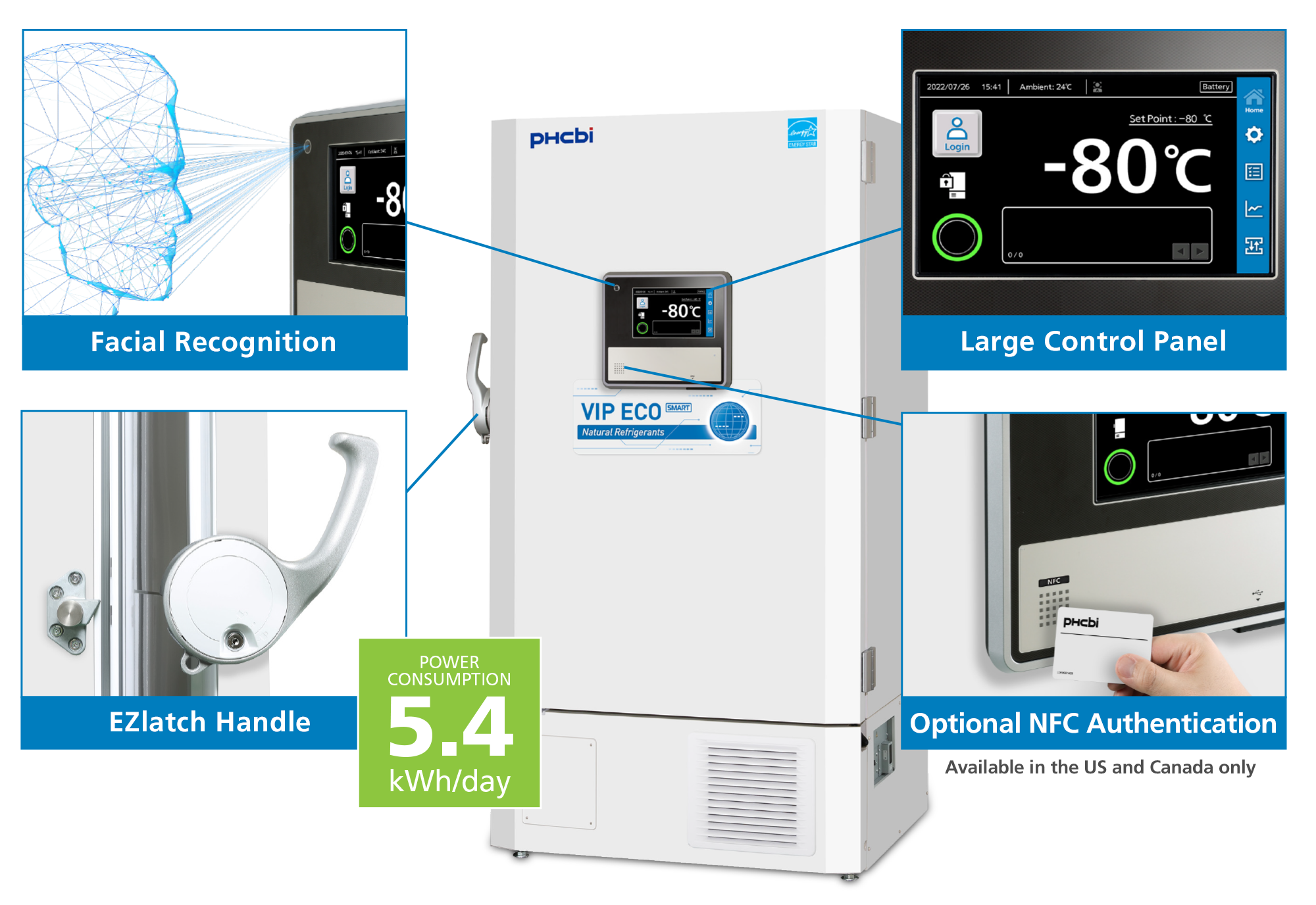

- Controlled Freezer Access: Know who entered the freezer and when. Track how long the door was open.
- 3 Ways to Lock
- Facial recognition
- Keypad
- Proximity card (Optional)*
- 3 Ways to Lock
