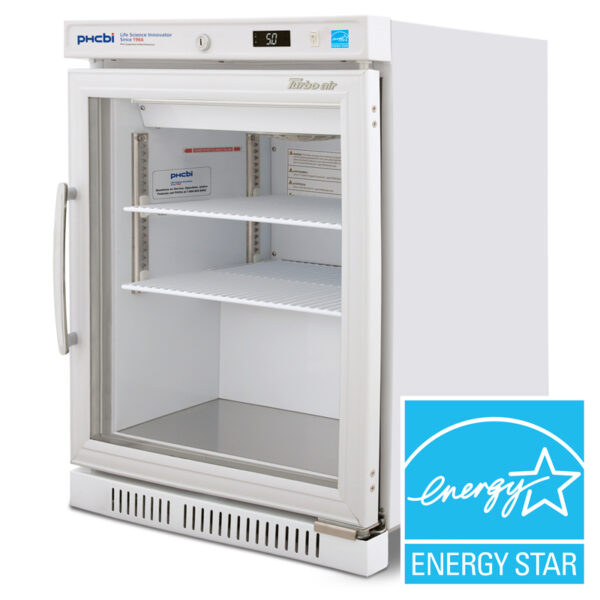

PHCbi 3.0 Cu. Ft. Undercounter Medical & Laboratory Refrigerator | Glass Door | ADA Compliant
Item#: TSU-4RW-N6The TSU-4RW-N6 is a medical refrigerator developed for the critical storage of vaccines and biologics, and is designed to meet current and evolving CDC, NSF, and ANSI guidelines. This ADA compliant undercounter is Energy Star Certified and combines high performance temperature control with environmentally friendly refrigerants in a compact, glass door design.
Note: this product ships freight
$3,404.00 $2,247.00
- Product Specifications
- Product Features
- Literature & Manuals
- Product Videos
- Product Accessories
- Request a Proposal
- Exterior dimensions- 22.5" W x 22.1" D x 29.6" H (572 x 562 x 751 mm)
- Interior dimensions- 18.5" W x 14.6" D x 18.9" D (471 x 370 x 480 mm)
- Effective capacity- 3.0 cu.ft. (85 l)
- Shelves and shelf dimensions- Vinyl coated wire, 2 shelves (adjustable) dimensions: 17.3" x 14.0" (440 x 355 mm)
- Access port- 1: Bottom of back of product (0.6" (16 mm) diameter)
- Refrigeration System- Single reciprocal type compressor
- Compressor- (1) 174
- Refrigerant- R-600a
- Defrost- Automatic cycle
- Insulation Material, SNAP Compliant- Rigid polyurethane, foamed-in-place, low GWP (cyclopentane)
- Cooling Performance- 3˚C to 7 ˚C
- Temperature control range- 3 to 7 in 0.1° increments
- Temperature Setting Range-3 ˚C to 7 ˚C in 0.1˚C increments
- Alarms- Power failure (b - momentary), high temperature deviation (v-b), low temperature deviation (v-b), door open (v-b), diagnostics (v) v=visual, b=buzzer
- Net weight- 114 lbs (13.6 kg)
- Electrical requirements 115v, 60hz, 1ø, nema 5-15p requires nema 5-15r receptacle
- Doors- 1 glass, self-closing
- Insulation- Right, left, back, top: 2.0" (50 mm); bottom 2.2" (50 mm)
- Controller- Microprocessor (one control probe and one monitor probe)
- Temperature display- LED
- Temperature Set Method- Touchpad
- Temperature Sensor-Thermistor
- Door lock- Key lock
- Warranty- 2 years parts / labor
Note: The CDC requires a data logger or temperature monitoring device to consistently record live temperature readings from the inside of a refrigerator or freezer when storing all types of vaccines. Constant monitoring of vaccines at recommended temperatures is essential for maintaining the efficacy of a vaccine. Failing to do so can lead to wasted vaccines or ineffective vaccines being administered to patients. Please follow the CDC requirements for Vaccine Storage & the COVID-19 Vaccination Program found here.
Meeting Regulatory Standards
Current and emerging guidelines from the CDC, NSF, and ANSI include strict storage requirements for vaccines and biologics. The TSU-4RW-N6 is purpose-designed to meet these evolving guidelines as they pertain to temperature control, uniformity, and recovery. This unit is UL 471 listed, and meets all electrical standards required by most equivalent Nationally Recognized Testing Laboratories (NRTL).
Versatile Design and Accessibility
With a compact footprint, the TSU-4RW-N6 is designed to be incorporated into ADA compliant workspaces, and fits under most tables, cabinets, and lab benches. A convenient glass door provides visibility into the interior of the unit to avoid unnecessary door openings. Units can be stacked with an adapter to maximize valuable laboratory floor space. This space-saving lab refrigerator includes an automatic defrost function.
High Performance
This high performance biomedical undercounter is purpose built with a clinical grade refrigeration system. Strict temperature control keeps stored product within the CDC recommended 2°C to 8°C temperature range, and a uniformity of ±3°C, for optimal vaccine storage. The TSU-4RW-N6 is designed to prevent interior temperature from dropping below 2°C at any location within the cabinet, even if the unit is empty. By contrast, interior temperatures are engineered to cool back to set-point temperatures within 15 minutes of a 3 minute door opening.
Microprocessor Controller and Alarms
The microprocessor with LED display includes comprehensive set-point, alarm, and monitoring functions. An intuitive control panel allows for easy programming of operating temperature and alarm settings. High and low temperature alarms notify users when temperature excursion events are occurring, and alarm delay time is adjustable to meet different user needs and working conditions.
Energy and Sustainability
The TSU-4RW-N6 is an Energy Star® Certified vaccine refrigerator with a precision-controlled temperature environment ideal for storage of enzymes, plasma, vaccines, test samples, reagents, test kits and other biologics. Traditional HFC refrigerants have been replaced with environmentally friendly HC refrigerants to meet Significant New Alternatives Policy (SNAP) guidelines for low global warming and ozone depleting substances.
Access Port and Security
The 0.63" (16 mm) access port permits passage of external temperature monitoring probes through the chamber without impinging on the door gasket. A physical key lock at the top of the unit makes it possible to store important samples and controlled substances.
- Blackout Panel- BPANELTSU
- Stacking Kit- TSU-4RW STKBRACKET
- Wireless/Cloud-Based/Automatic Data Management- LabAlert® Monitoring System
PHCbi Undercounter Refrigerator TSU-4RW-N6 Spec Sheet
DownloadPHCBI Covid-19 Vaccine Storage Solutions Flyer
DownloadPHCbi Coronavirus (COVID-19) Vaccine Storage Information
DownloadPHCbi Cold Chain Refrigerator and Biomedical Freezer Portfolio
DownloadPHCbi Undercounter Refrigerators & Freezers Product Overview
DownloadPHCbi Undercounter Refrigerator TSU-4RW-N6 Operations Manual
DownloadPHCbi TSU-4RW-N6 Undercounter Refrigerator Overview
-
