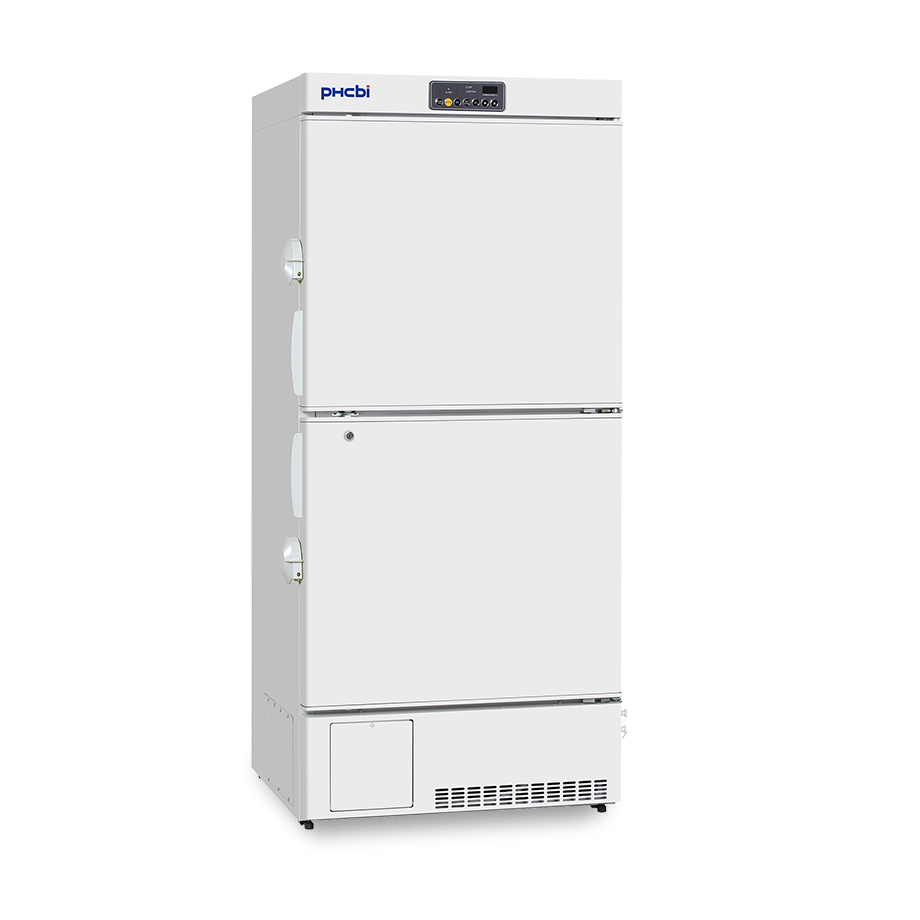

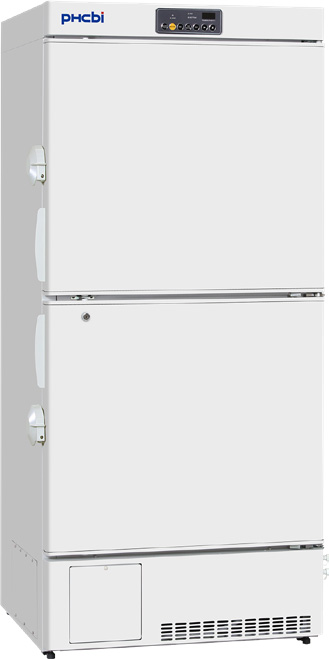

PHCbi MDF Series 16.9 Cu. Ft. Manual Defrost Biomedical ECO Freezer (-40°C) (Dual Chamber)
Item#: MDF-MU549DHL-PAThe MDF-MU549DHL-PA (-40°C) 16.9 Cu. Ft. Biomedical ECO Dual Chamber Laboratory Freezer from PHCbi is designed for storage of enzymes, vaccines, pharmaceutical products and other biomedical materials at uniform temperatures. High performance refrigeration systems provide responsive cooling. A manual defrost function eliminates temperature fluctuation. Each chamber operates over a range of -20°C to -40°C, with separate set point in 1°C increments. The two door design minimizes exposure to stored product.
$10,041.00 $6,627.06
- Product Specifications
- Product Features
- Literature & Manuals
- Product Videos
- Product Accessories
- Request a Proposal
- Exterior dimensions: 31.2" W x 30.3" D x 70.9" H (793 x 770 x 1802 mm)
- Interior dimensions: 25.6" W x 24.2" D x 49.7" H (649 x 614 x 1262 mm)
- Effective capacity: 16.9 cu.ft. (479 L)
- Insulation: Rigid polyurethane, foamed-in place, non-cfc
- Shelves: Vinyl coated wire, 6 shelves (5 adjustable), (allowable load 66.1 lbs. (30 kg)/shelf), Dimensions: 24.6" x 20.1" (624 x 510 mm)
- Access ports: 1: Back wall, left hand corner (1.1" (30 mm) diameter)
- Net Weight: 363.8 lbs (165 kg)
- Cooling performance: -20ºC to -40ºC (Ambient temperature 5ºC to 35ºC, no load)
- Compressor: 2, one per chamber
- Refrigerant: Natural refrigerant R-290. SNAP approved.
- Alarms: High temperature, low temperature, power failure
- Temperature control system: Microprocessor Control System
- Construction: Interior and exterior: painted steel
- Temperature sensor: Thermistor
- Data management: Optional with LabAlert Monitoring System
- Noise level: 42 dB(A)
- Warranty: 3 years Parts & Labor
Note: The CDC requires a data logger or temperature monitoring device to consistently record live temperature readings from the inside of a refrigerator or freezer when storing all types of vaccines. Constant monitoring of vaccines at recommended temperatures is essential for maintaining the efficacy of a vaccine. Failing to do so can lead to wasted vaccines or ineffective vaccines being administered to patients. Please follow the CDC requirements for Vaccine Storage & the COVID-19 Vaccination Program found here.
- Natural Refrigerants and Inverter Technology: Naturally occurring hydrocarbon [HC] refrigerants have minimal effect on the environment and are compliant with environmental legislation for climate control. Combined with inverter technology, these refrigerants also provide more efficient cooling without compromising cooling performance, ambient tolerance and recovery speeds following door openings.

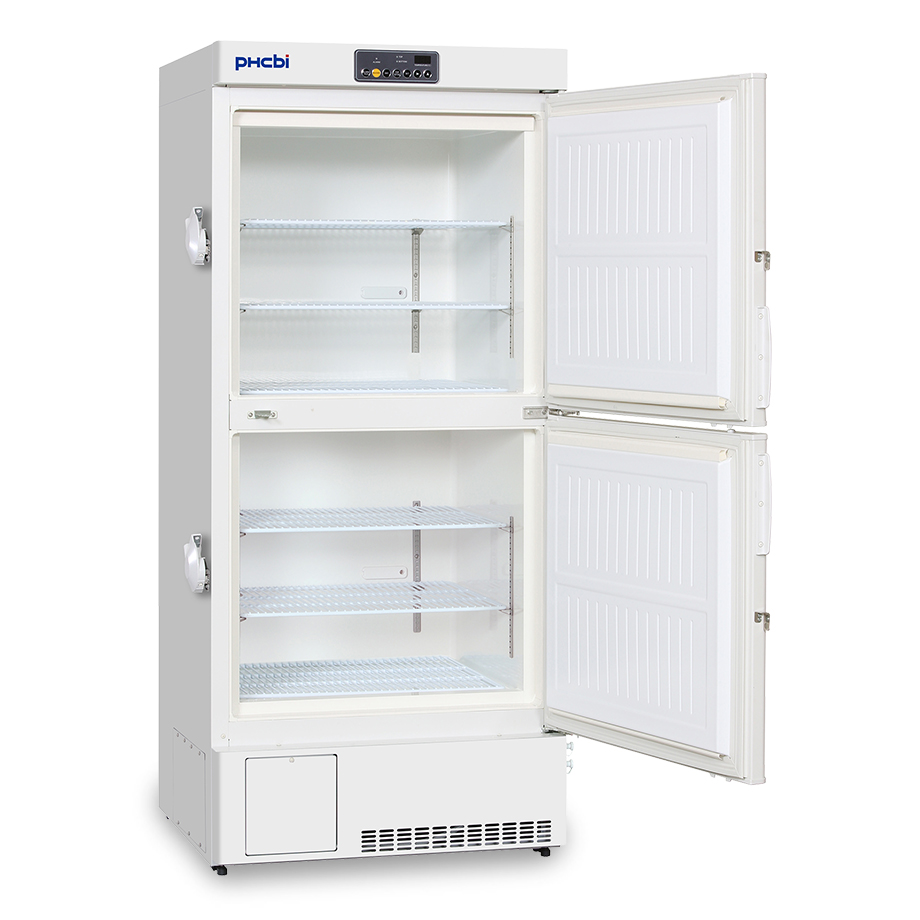

- Smart Cabinet Design: Two door access allows more flexibility for secure sharing among labs. Each chamber includes three wire shelves, two adjustable and one fixed. Optional open top bins can be added to hold common 2" or 3" freezer boxes, as well as miscellaneous packaging. High density CFC-free and low GWP foamed-in-place insulation creates a temperature resistant wall structure. Doors are lockable. Painted steel interior surfaces simplify cleaning.
- ENERGY STAR® Qualified: Power consumption at rated storage temperatures confirms significant energy saving performance of the Biomedical ECO natural refrigerant platform. Power data published herein is based on internal results of production freezer testing prior to submittal for independent third-party evaluation similar to that now applied to other ENERGY STAR Certified PHCbi freezers in the same class.
- Energy Efficient Performance: Natural refrigerant, a high performance inverter compressor, DC condenser fan and integrated electronic controls combine to manage overall performance, protect stored product and lower operating costs by up to 28% compared to conventional models. Performance is rated at 115V, AC, ambient temperature 40°C, with a wide tolerance for high ambient temperatures.

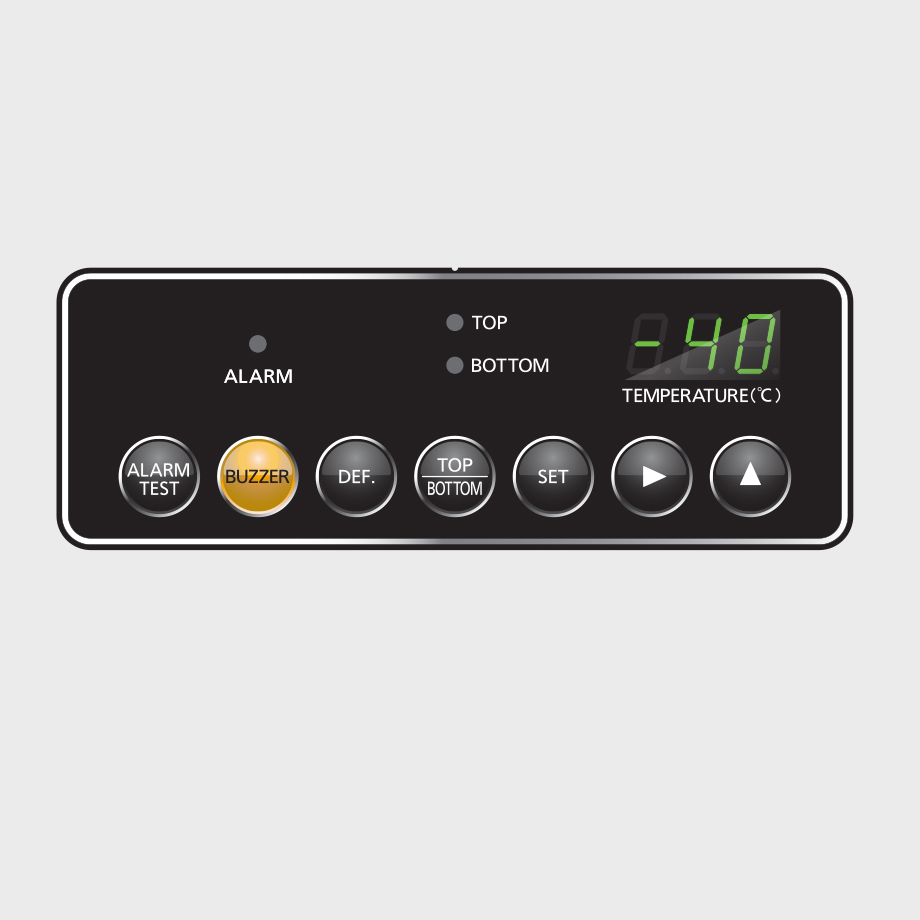

- Microprocessor Controller and Alarms: The microprocessor-based temperature control system with LED display maintains accurate set point temperature to within 1°C over a range of -20°C to -40°C. Audible and flashing visual alarm lights supplement the set point deviation system to warn of parameter violations, or loss of power.
- High Performance Refrigeration: The refrigeration systems and variable speed inverter compressor responds to demand for cooling based on temperature setpoint, frequency of door openings, ambient temperature in the location and heat intrusion through the composite insulated walls. Strategic integration of embedded cooling coils creates a uniform cold-wall surface for fast response at temperatures as low as -40°C top to bottom.
- Stored Product Protection: The Model MDF-MU549DHL-PA -40°C upright Biomedical ECO freezer with two independent chambers offers stable temperature and utility value when cabinet sharing is desired.

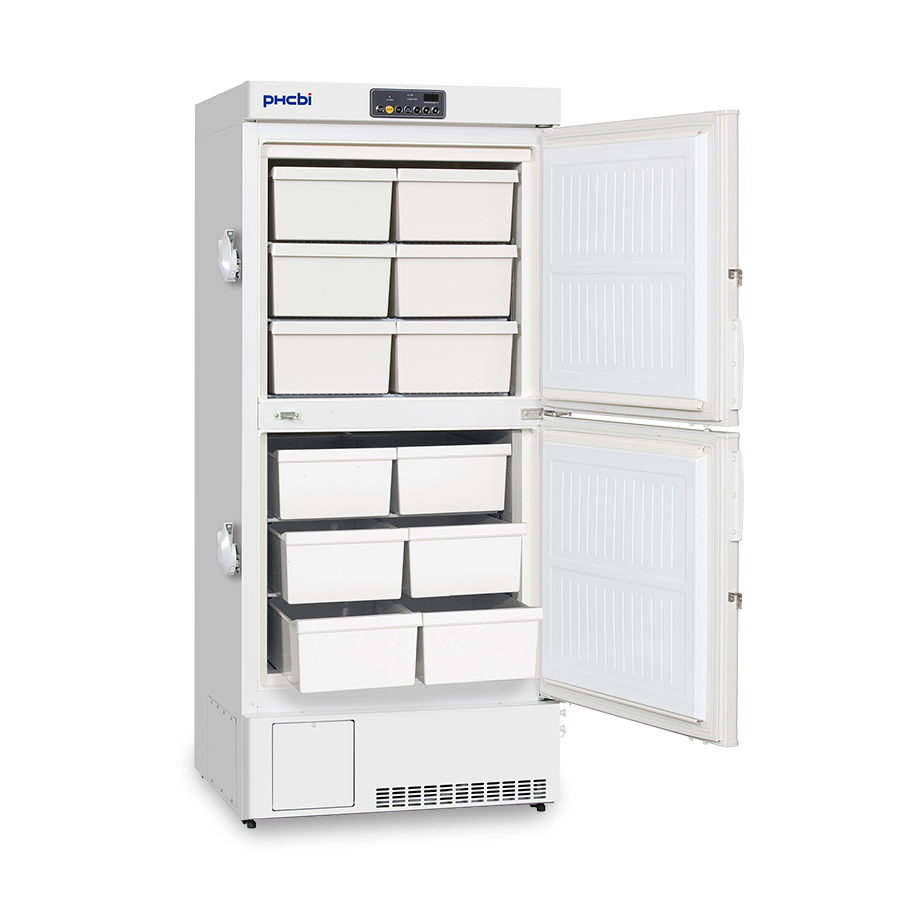

- Flexibility and Convenience: Optional large open top bins, six per chamber, allows for storage of 2" and 3" high freezer inventory boxes or other types of containers. Cleaning is made easy with the painted steel interior and exterior. One key lock for each door. One-handed door latch operation permits easy opening and closing. Each door latch lock offers added security as an optional padlock can be installed.
- Temperature Uniformity Data: As interior air temperature stabilizes at the desired setpoint, large mass storage volume assures close temperature uniformity at all locations within the insulated cabinet.
PHCBI MDF-MU549DHL-PA Product sheet
DownloadPHCbi Biomedical Freezers Warranty
DownloadPHCbi Laboratory Equipment Validation Services
DownloadPHCBI Vaccine Storage Brochure
DownloadPHCBI Covid-19 Vaccine Storage Solutions Flyer
DownloadPHCbi Cold Chain Refrigerator and Biomedical Freezer Portfolio
DownloadPHCbi Biomedical Freezers Operations Manual
DownloadMDF-MU549DHL-PA Biomedical ECO Freezer With Dual, Independent Chambers
-
