PHCbi MCO-170AICUVDL-PA cellIQ Series Dry Heat Sterilization CO2 Incubator
Item#: MCO-170AICUVDL-PACell-IQ MCO-170AICUVDL-PA CO2 incubators from PHCbi provide optimal cultivation conditions with precise CO2 concentration, temperature and humidity while remaining easy-to-clean and operate. During cell culturing, the inCu-saFe® germicidal interior and SafeCell UV continuously protect against potential contaminants. A unique dual heat sterilization system provides a complete decontamination of the incubator's interior.
FREE SHIPPING ON ALL PHCBI BRAND EQUIPMENT
For a limited time only get FREE Dock-to-Dock freight on all PHCbi equipment. Contact us for a proposal
Supplier: PHCbi
Tags: Laboratory Incubators, Panasonic, Panasonic Healthcare, PHC, PHCbi, Sanyo- Product Specifications
- Product Features
- Literature & Manuals
- Product Videos
- Product Accessories
- Request a Proposal
- External Dimensions (W x D x H) (inches | mm): 24.4 x 29.7 x 35.6 | 620 x 755 x 905
- Internal Dimensions (W x D x H) (inches | mm): 19.3 x 20.6 x 26.2 | 490 x 523 x 665
- Volume (cu.ft. | liters): 5.8 |165
- Net Weight (lbs. | kg): 176 | 80
- Warranty: 3 year parts & labor, 5 year CO2 Sensor
- Precise & Regulated Environment: InCu-saFe and SafeCell UV function together to create Active Background Decontamination against external microbes. InCu-saFe comprises a germicidal copper-enriched stainless steel interior. SafeCell UV decontaminates circulating air and the humidity reservoir. A unique heating system and the dual wave infrared sensor precisely regulate temperature and CO2 levels, respectively.
- Dual Heat Sterilization System: An integrated auxiliary sterilization system is utilized together with the incubator’s cultivation heaters to provide an effective, energy efficient sterilization process within 11 hours. Melamine foam insulation minimizes heat leakage to adjacent incubators and dramatically reduces elevated external surface temperatures.
- Rapid CO2 Recovery: The proportioning controller and dual wave infrared sensor achieve ultra-fast CO2 recovery without overshoot, even following multiple door openings.
- Stackable Incubators: Melamine foam insulation limits heat dissipation to the surrounding environment during dry heat sterilization. This allows cell culturing to continue safely in adjacent incubators.
- Germicidal Interior: InCu-saFe copper-enriched stainless steel alloy offers the germicidal properties of copper, as well as the corrosion resistance of stainless steel.
- Active Background Decontamination: SafeCell UV decontaminates circulating air and water in the humidifying pan, without harming cultured cells.

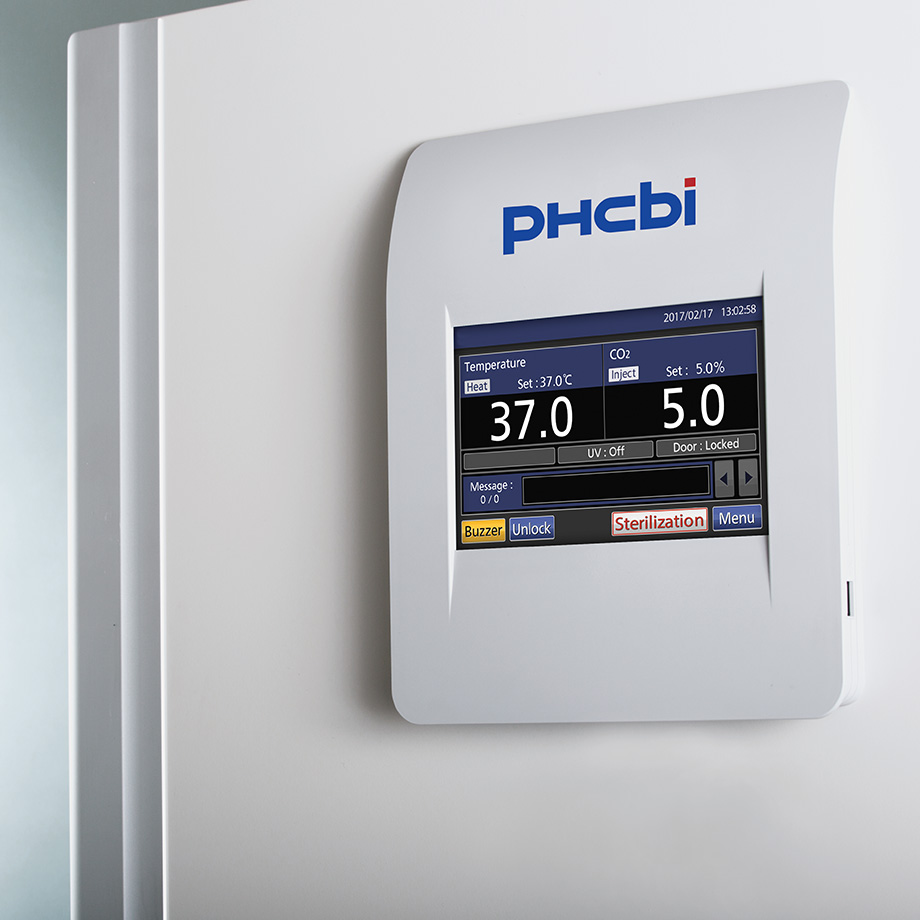

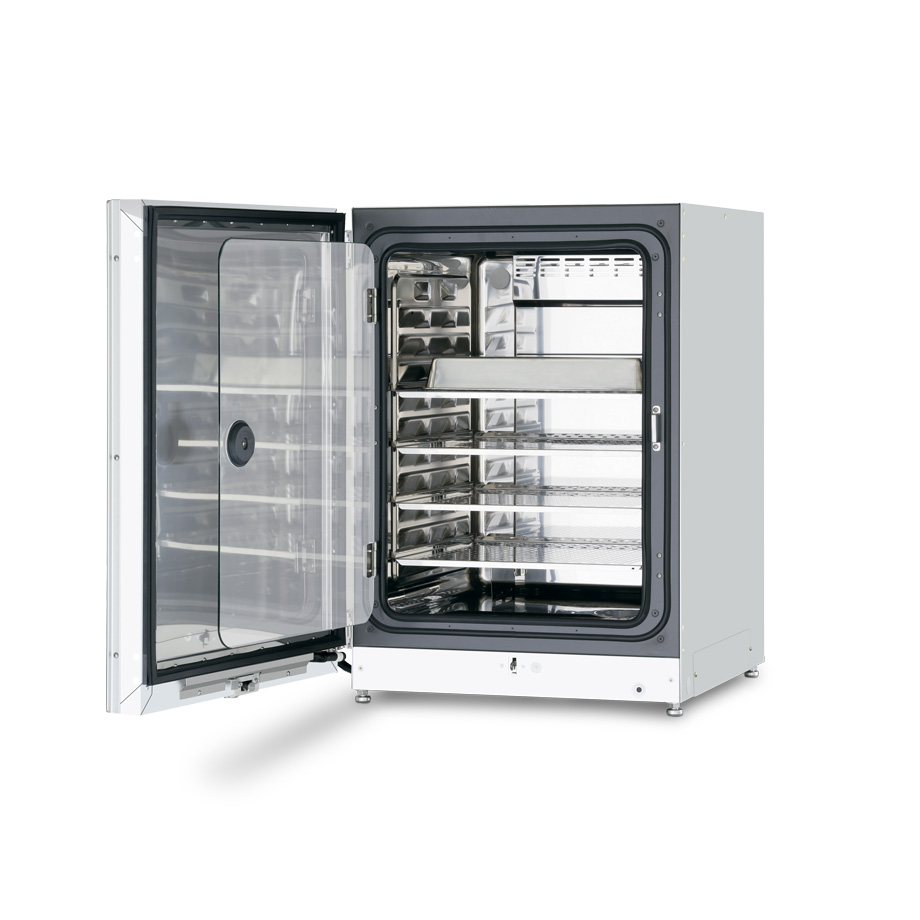

- Ease of Use & Maintenance: A color LCD touch panel allows full control and visibility of the incubator’s internal conditions, even with gloved hands. A USB port makes transferring data to a PC convenient. The incubator’s interior has fully rounded corners and integrated shelf supports for easy cleaning and maintenance.
Performance:
- Temperature Control Range & Fluctuation (°C): Ambient +5 ~ +50, ±0.1
- Temperature Uniformity (°C): ±0.25
- CO Control Range & Fluctuation (%): 0 ~ 20, ±0.15
- Humidity Level and Fluctuation (%RH): 95 ±5
Control:
- Temperature Sensor: Thermistor
- CO2 Sensor: Dual Wave IR
- Display: LCD Color Touch Screen
Construction:
- Exterior Material: Painted Steel (rear cover coated steel)
- Interior Material: Stainless Steel Copper-Enriched Alloy (inCu-saFe)
- Insulation Material: Melamine Resin Foam
- Heating Method: Heater Jacket
- Sterilization Method: Dry heat sterilization, 180°C, 11 hours
- SafeCell UV System: Standard
Electrical and Noise Level:
- Power Supply (V): 115
- Frequency (Hz): 60
- Noise Level (dB(A)): 25
PHCbi MCO-170AICUVDL-PA CO2 Incubator Product Sheet
DownloadPHCBI CO2 & Multigas Incubators Brochure
DownloadMitigating Contamination in the Cell Culture Incubator
DownloadPHCbi - Water Jacketed vs Air Jacketed CO2 Incubators
DownloadPHCbi Laboratory Equipment Validation Services
DownloadPHCbi CO2 and O2 Incubators MCO Portfolio
DownloadPHCbi MCO-170AICUVDL-PA CO2 Incubator Operations Manual
DownloadPHCbi Cell-IQ™ Series CO2 Laboratory Incubators for Precision, Uniformity and Repeatability
