NuAire LabGard® ES NU-545 Class II, Type A2 Biosafety Cabinet | TouchLink Control
Item#: NU-545The LabGard® ES AIR Limited Model NU-545 Class II Biological Safety Cabinet (BSC) is a primary engineering control in obtaining the optimum product quality while reducing the potential for exposure of both product and personnel to airborne biological or particulate chemical agents in low to moderate risk-hazard research and drug preparation or product operations, as prescribed by the Center for Disease Control (CDC) Atlanta, Georgia.
- Cabinet Style: Bench Top w/ Optional Base Stand

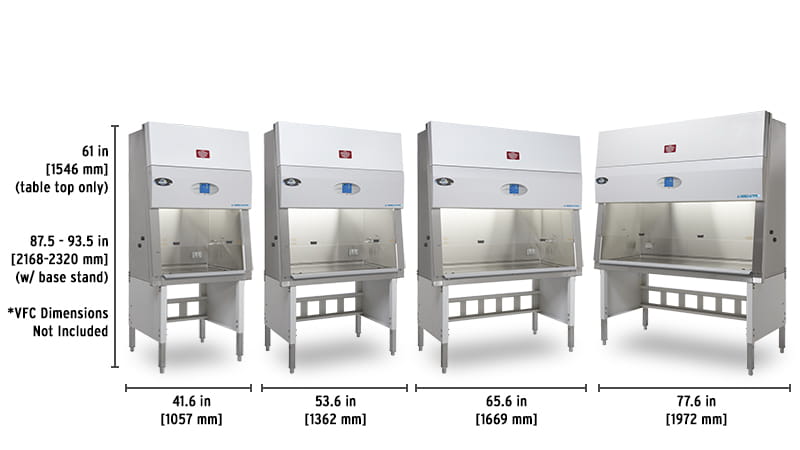

- Nominal Widths: 3, 4, 5, 6 ft [0.9, 1.2, 1.5, 1.8 m]
- Workspace Dimensions (W x D x H):
- 3ft Model: 34" x 25.75" x 28.5"
- 4ft Model: 53" x 25.75" x 28.5"
- 5ft Model: 65" x 25.75" x 28.5"
- 6ft Model: 77" x 25.75" x 28.5"
- Exterior Dimensions (W x D x H):
- 3ft Model: 42" x 32" x 61"
- 4ft Model: 54" x 32" x 61"
- 5ft Model: 66" x 32" x 61"
- 6ft Model: 78" x 32" x 61"
- Net Shipping Weight: 410 - 650 lbs
- Certifications:
- NSF / ANSI 49, EN12469
- UL listed, CE
- Access Opening: 8, 10in [203, 254 mm]
- Electrical Requirements: 115 VAC / 60 Hz
- Filter Load Capacity: 300%
- Air Barrier:
- 105 fpm [0.53 m/s] Dynamic Air Barrier
- 60 fpm [0.30 m/s] True Laminar Down Flow
- ISO Class 5 Air Protection
- Supply Filter Options: 3 in [76 mm] HEPA 99.99% Efficient @ 0.3 microns
- Exhaust Filter Options: 11.5 in [292 mm] HEPA 99.99% Efficient @ 0.3 microns
- Control System: Touchlink™
- Pressure / Airflow Sensor: Dual IntelliFlow™ Airflow Sensors
- Lighting: LED
- Nitecare™ Compatible: Yes
- Password Protection: Yes
- Auto-Decontamination: Decon101™
- Customizable Blower Schedule: Yes
- USB Data Download Port: Yes
- Noise Level: Up to 62 dba
- Construction Options:
- Easy-to-Clean Prop-Up Work Tray
- 2 GFCI Duplex Outlets (Back Wall or Front Panel)
- 3 Service Couplings and 1 Service Valve (Right/Left Sidewalls or Front Panel)
- Single Cord Pass-Through Port (Right Sidewall; NSF Approved)
- Removable Stainless Steel Coved Work Tray
- Coved Interior Corners
- Frameless Easy-to-Slide Viewing Window
- Monolithic 16/18 gauge Stainless Steel Welded Pressure Tight Construction
- Recessed & Removable Front Intake Grill
- Stainless Steel Spill Trough w/ Drain Valve
- Attenumont™ Vibration Control Support System
- Permanent Positive Pressure Plenum w/ Quick Release Supply Filter Removal
- Monolithic 16/18 Gauge, Type 304 Stainless Steel Welded Pressure Tight Construction (Silicone Free)
- Ultra-high Efficiency Motor
- TouchLink2 Electronic Control System
- Intelliflow Airflow Monitoring
- Automatic Filter Loading Compensation
- Motor Speed Controller
- Internal Exhaust Damper
- NiteCare Night Setback
- HEPEX Zero Leak Airflow System
- Front Filter Removal
- Permanent Plenum with Quick Release Supply Filter
- Metal Diffuser Over Supply Filter
- 3-inch (76 mm) Supply HEPA Filter 99.99 @ 0.3 Micron Efficiency Rating
- 12-inch (305 mm) Exhaust HEPA filter 99.99 @ 0.3 Micron Efficiency Rating
- Attenumont Vibration Control
- Exterior LED Lighting
- 10-inch [254 mm] Access Opening (NSF/ANSI 49)
- Frameless Sliding Tempered Glass View Screen
- Gasketed Window Frame
- Heavy Duty, Ergonomic Plastic Armrest
- Removable Work Tray
- Work Surface Support System
- Spill Trough with Drain Valve
- Two Duplex Outlet Back-wall
- One Service Valve Right Side Wall
- One Service Coupling Right Side Wall
- Two Service Couplings Left Side Wall
- Power Cord
Optional Features:
- Construction Options:
- Heavy Duty Plastic Armrest w/ Stainless Steel Option
- IV Bar w/ 3 Height Locations, 6 SST Hooks
- Glass Sidewalls
- Additional Service Valves, GFCI Outlets, and/or Pass-Through Ports
- Seismic Brackets (Rear / Floor Mount)
- Heated Work Surface
- Sinks with Hot/Cold or DI Water Faucets
- Ultraviolet (UV) Light Option
- Redundant (Qty: 2) 6 or 11.5 in [152 or 292 mm] HEPA 99.99% Efficient @ 0.3 microns
- Base Stand Options:
- Telescoping Adjustable Base Stand
- Motorized Adjustable Base Stand
- Popular Accessories:
- Adjustable Ergonomic Footrest
- Silicone Cushioned Movable Elbow Rests
- Ergotron™ Monitor, Keyboard, and Mouse Mount
- Storage Pull-Out Trays or Shelves
