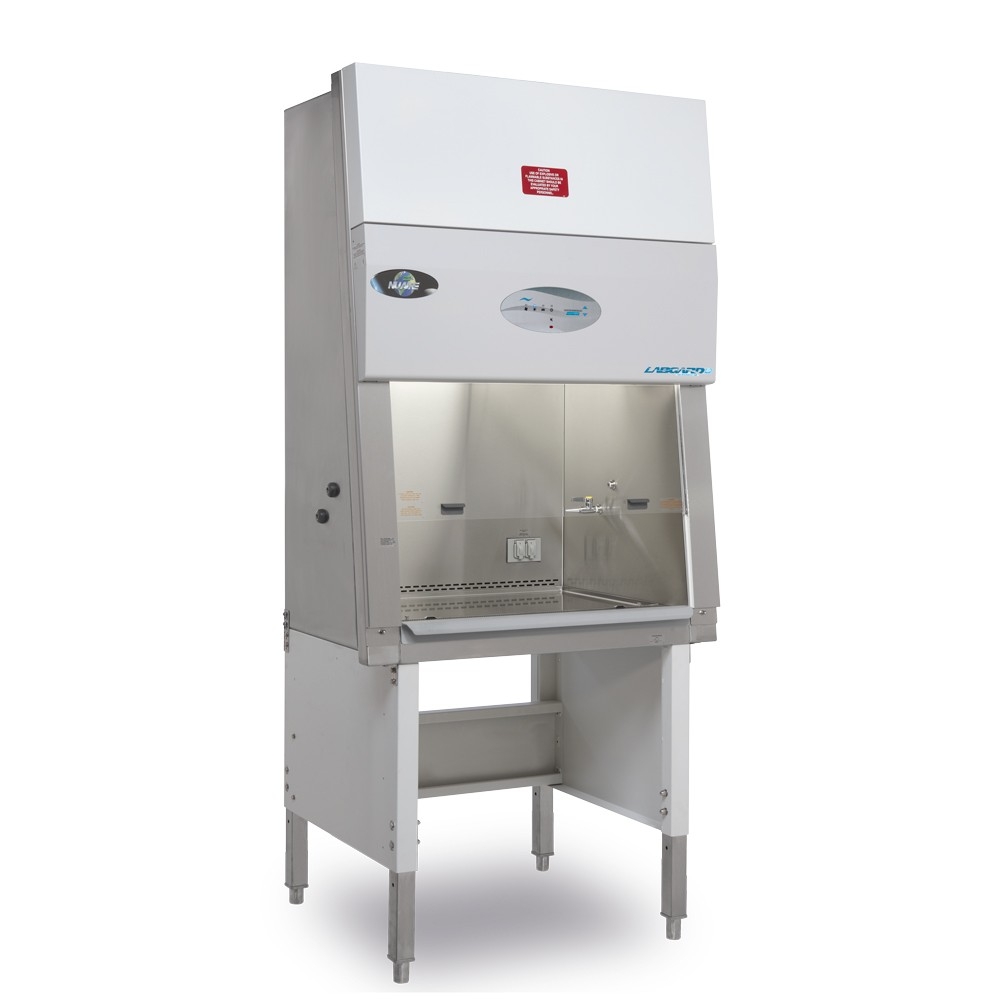

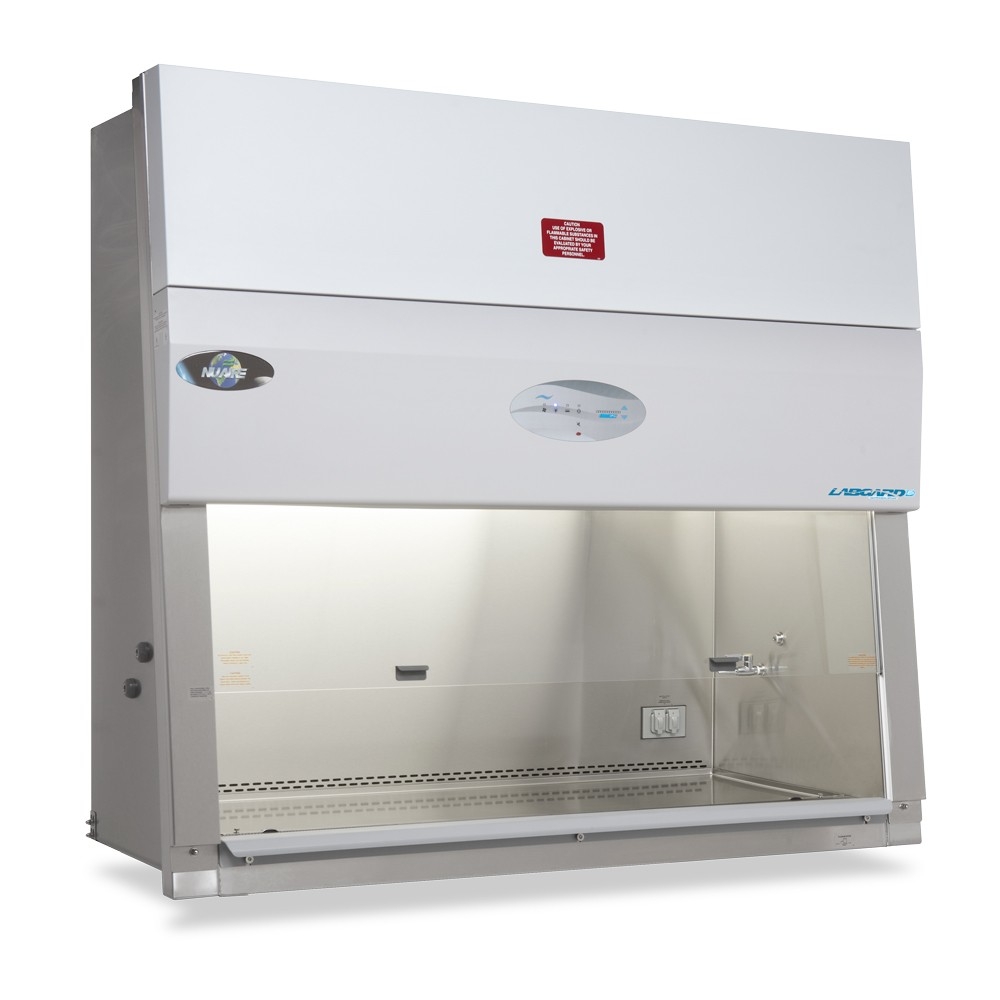

NuAire LabGard NU-540 Class II, Type A2 Biosafety Cabinet | AeroMax™ Control
Item#: NU-540The new LabGard ES NU-540 Class II Type A2 Biological Safety Cabinets from NuAire are designed to provide personnel, product and environmental protection while working with low to moderate risk biologicals other than volatile toxic chemicals. The NU-540 (airflow 70% recirculating, 30% exhaust) biosafety cabinet has a few new and improved features including: better ergonomically designed front access with a 10 degree slope, 10” window access opening, prop-up work tray and a flip down control panel; long lasting construction with 16/18 gauge, type 304 stainless steel monolithic shell and a covered back wall insert welded into place creating a double wall construction; and intuitive technology with a new user-friendly control system, called the AeroMax™ that monitors and displays the system’s airflow performance via the PressureFlow™ - digital pressure monitor. In addition, this unit has the nitecare™ night setback mode, which is initiated upon sliding the window closure, the blower will continue to operate at a lower rate to save energy. Lastly, some new optional features include an upgraded base stand design, energy-efficient LED lighting, removable and decorative side panels. Overall, the NU-540 has the simplest of controls ideal for quick user adoption and offers safe construction at a lower price.
- Cabinet Style: Bench Top w/ Optional Base Stand

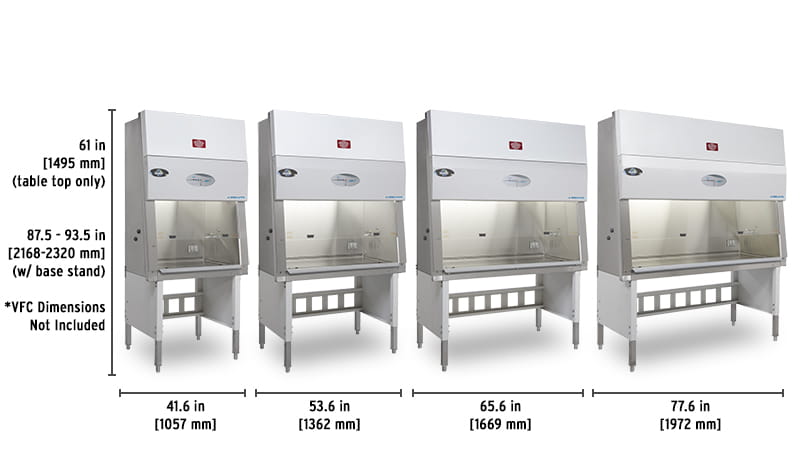

- Nominal Widths: 3, 4, 5, 6 ft [0.9, 1.2, 1.5, 1.8 m]
- Workspace Dimensions (W x D x H):
- 3ft Model: 34" x 25.75" x 28.5"
- 4ft Model: 53" x 25.75" x 28.5"
- 5ft Model: 65" x 25.75" x 28.5"
- 6ft Model: 77" x 25.75" x 28.5"
- Exterior Dimensions (W x D x H):
- 3ft Model: 42" x 32" x 61"
- 4ft Model: 54" x 32" x 61"
- 5ft Model: 66" x 32" x 61"
- 6ft Model: 78" x 32" x 61"
- Net Shipping Weight: 410 - 650 lbs
- Certifications:
- NSF / ANSI 49
- UL listed, CE
- Access Opening: 8, 10 in [203, 254 mm]
- Electrical Requirements: 115 VAC / 60 Hz
- Filter Load Capacity: 250%
- Air Barrier:
- 105 fpm [0.53 m/s] Dynamic Air Barrier
- 60 fpm [0.30 m/s] True Laminar Down Flow
- ISO Class 5 Air Protection
- Supply Filter Options: 3 in [76 mm] HEPA 99.99% Efficient @ 0.3 microns

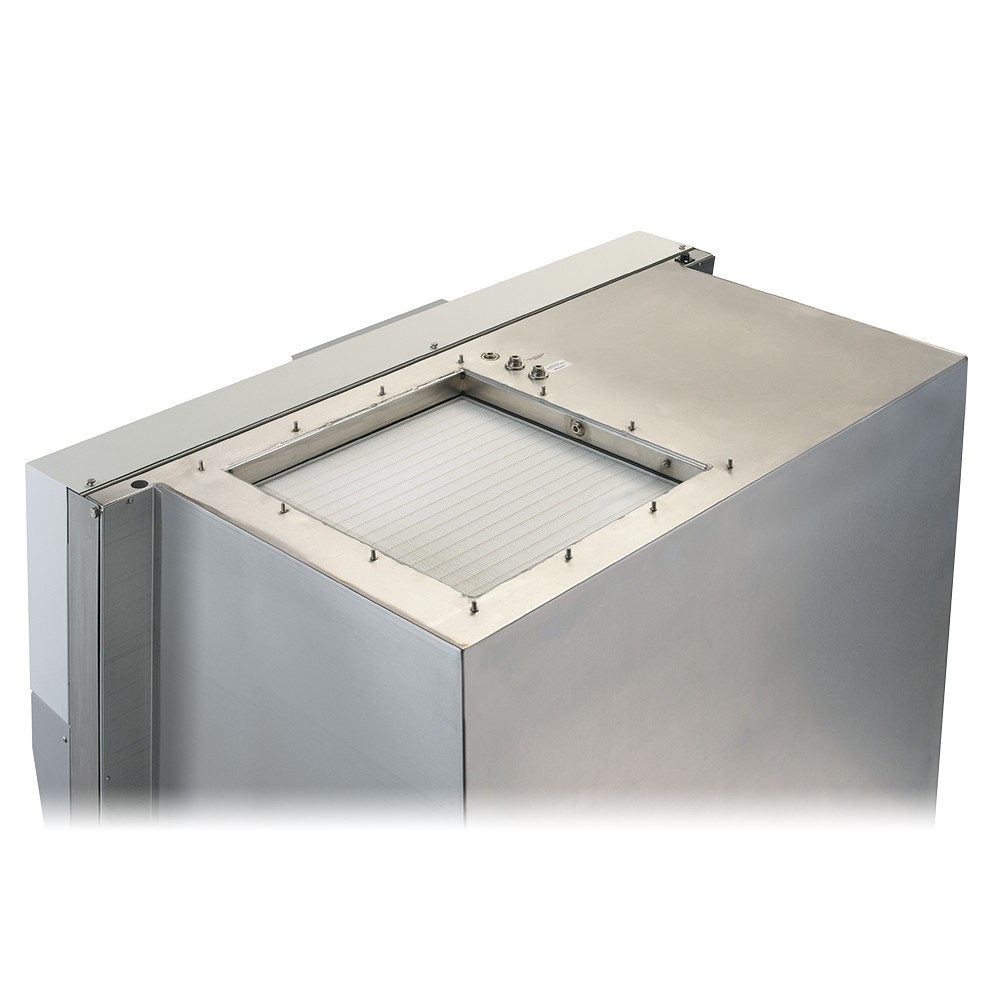

- Exhaust Filter Options: 6 in [152 mm] HEPA 99.99% Efficient @ 0.3 microns

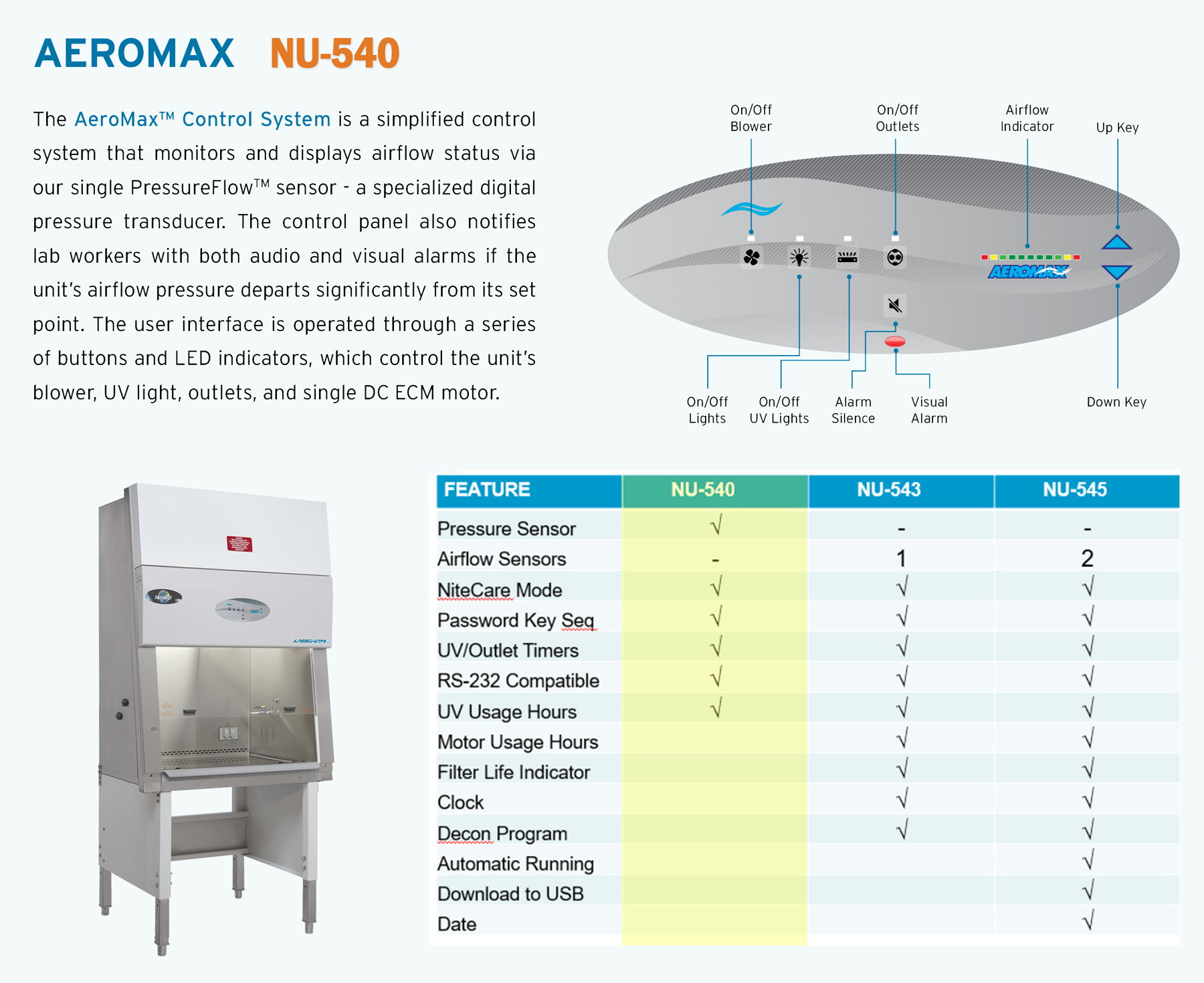

- Control System: AeroMax™
- Pressure / Airflow Sensor: PressureFlow™ Pressure Sensor
- Lighting: Fluorescent w/ LED Option
- Nitecare™ Compatible: Yes
- Password Protection: Yes
- Auto-Decontamination: No
- Customizable Blower Schedule: No
- USB Data Download Port: No
- Noise Level: Up to 62 dba
- Construction Options:
- 2 GFCI Duplex Outlets (Back Wall or Front Panel)
- 3 Service Couplings and 1 Service Valve (Right/Left Sidewalls or Front Panel)
- Single Cord Pass-Through Port (Right Sidewall; NSF Approved)

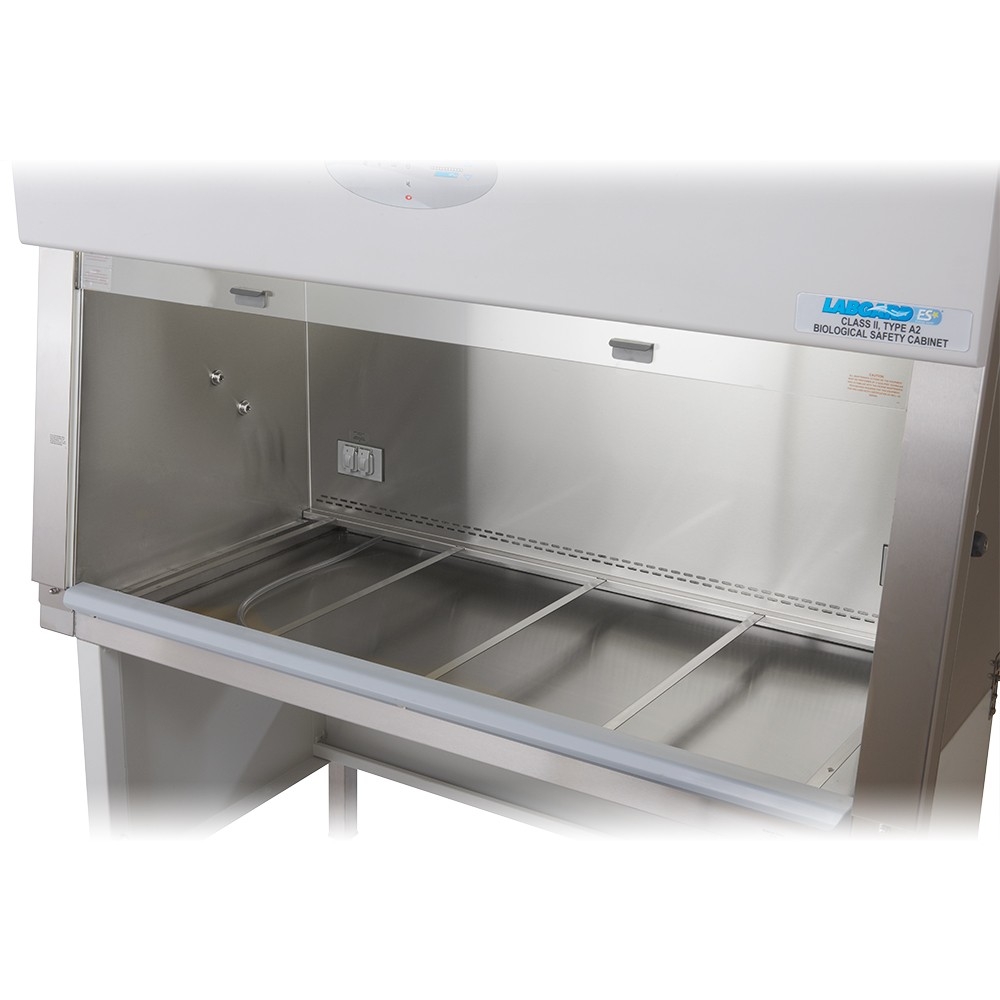

- Removable Stainless Steel Coved Work Tray
- Coved Interior Corners
- Frameless Easy-to-Slide Viewing Window
- Monolithic 16/18 gauge Stainless Steel Welded Pressure Tight Construction
- Recessed & Removable Front Intake Grill
- Stainless Steel Spill Trough w/ Drain Valve
- Attenumont™ Vibration Control Support System
- Permanent Positive Pressure Plenum w/ Quick Release Supply Filter Removal
- 10 degree slope window
- 10” window access opening (optional 8” access opening)
- 30% exhausted / 70% recirculates airflow
- Energy Saver (ES) DC/ECM motor
- Prop-up work tray
- AeroMax™ Electronic Control system
- Microprocessor control on/off functions for: blower/motor, lights, UV Light, outlets, and window alarm silence Nitecare™ night setback
- HEPEX Zero Leak Airflow
- Monitor Airflow Performance via PressureFlow™ - Plenum pressure monitor
- Monitor window position with alarm
- Ring back functions
- Timer functions
- ADA compliant
- NSF/ANSI: 49 and UL/c-UL Listed
- Available in 3ft, 4 ft, 5 ft, and 6 ft.
Optional Features:
- Construction Options:
- Heavy Duty Plastic Armrest w/ Stainless Steel Option
- IV Bar w/ 3 Height Locations, 6 SST Hooks
- Glass Sidewalls
- Additional Service Valves, GFCI Outlets, and/or Pass-Through Ports
- Seismic Brackets (Rear / Floor Mount)
- Heated Work Surface
- Sinks with Hot/Cold or DI Water Faucets
- Ultraviolet (UV) Light Option
- Redundant (Qty: 2) 6 or 11.5 in [152 or 292 mm] HEPA 99.99% Efficient @ 0.3 microns
- Base Stand Options:
- Telescoping Adjustable Base Stand
- Motorized Adjustable Base Stand
- Popular Accessories:
- Adjustable Ergonomic Footrest
- Silicone Cushioned Movable Elbow Rests
- Ergotron™ Monitor, Keyboard, and Mouse Mount
- Storage Pull-Out Trays or Shelves
*Please Note: This unit replaces the LabGard™ NU-437 and the CellGard™ NU- 475 and 477 models. For questions, please contact us to speak to a LabRepCo Containment Specialist.
