Erlab CaptairBio 320 PCR Workstation

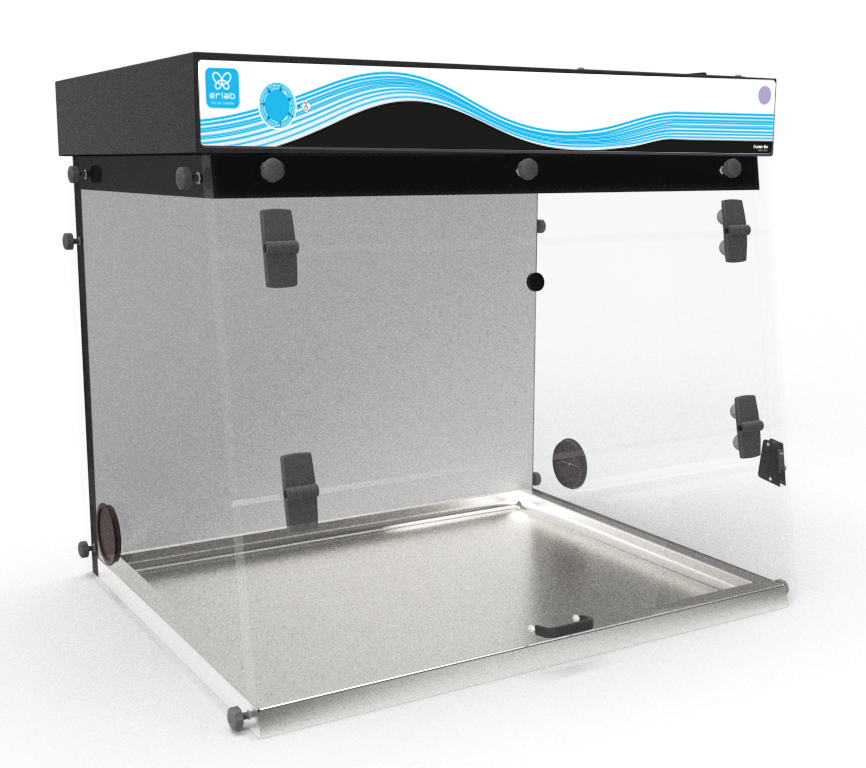

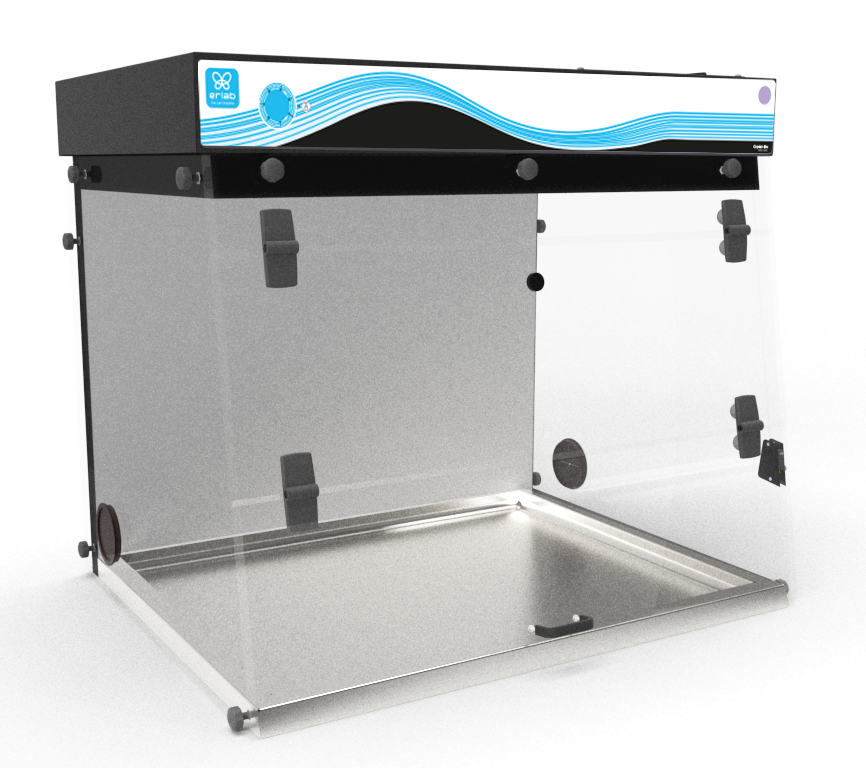

Item#: CAPTAIRBIO320The Erlab CaptairBio 320 PCR Workstation was designed to protect cross contamination of your DNA/RNA samples, protect contamination of the laboratory, and also protect the user from contamination during its application. Air from the room is gathered and processed through a H14 HEPA filter and then blown into the enclosure, preventing any contamination of samples. Air is blown towards the operator to prevent user contamination and UV rays are used to decontaminate the enclosure between two consecutive PCR experiments to avoid cross-contamination.
- Exterior Dimensions (WxHxD): 30 1/8” x 24 1/2” x 24 3/4”
- Interior Dimensions (WxHxD): 30 7/8” x 22 1/4” x 19 5/8" - 20 1/8”
- Voltage/Frequency: 100-240 V / 50-60 Hz
- Watts: 25
- Decibel Level (dBA): <40
- Side and front panels: 10 mm thick synthetic glass is designed to protect users from harmful UV rays and β (Bêta) emitted
from radioactive isotopes such as: T(3H), 14C, 32P - Structure: Corrosion resistant electro-galvanized steel coated with anti-acid polymer
- Filtration Module: Polypropylene
- Worktop: Stainless steel 304 L / TRESPA®TopLabPLUS
- Bacterial UV Lights:
- 15W - Wavelength: 254 nm
- 0.08 mJ/ s/cm2
- Internal Lighting: Compact fluorescent lighting - 18 watt - IP 67
- Side panel utility ports: To allow electrical cables and/or fluid lines to engter the enclosure with ease - 2 per unit
Optional Accessories (priced separately):
- Benches: Rolling cart (Mobicap) or fixed bench (Benchcap)
- Shelves: Internal metal sliding shelf (only for Benchap)
- Worktop: TRESPA® TOPLABPLUS, Glass or 304L Stainless Steel
- Complete protection for RNA/DNA amplification
- A high energy UV light is used to decontaminate the worktop from biological cross-contamination between operations.
- UV decontamination
- Protect your samples from cross-contamination
- Powerful UV decontamination (254 nm lamp power)
- Adjustable timer
- Automatic UV lamp off switch in case the sash is opened when the UV light is on
- Easy to clean
- Work surface is easy to clean
- Seamless worktop with smooth corners, available in TRESPA®TopLabPLUS or Stainless steel (304 L)
- Low porosity material
- Ergonomic design
- Slanted sash provides an ergonomic position for comfort and productivity
- Compact tubular fluorescent lighting
- Side panel utility ports allow electrical cables and/or fluid lines to enter the enclosure with ease.
