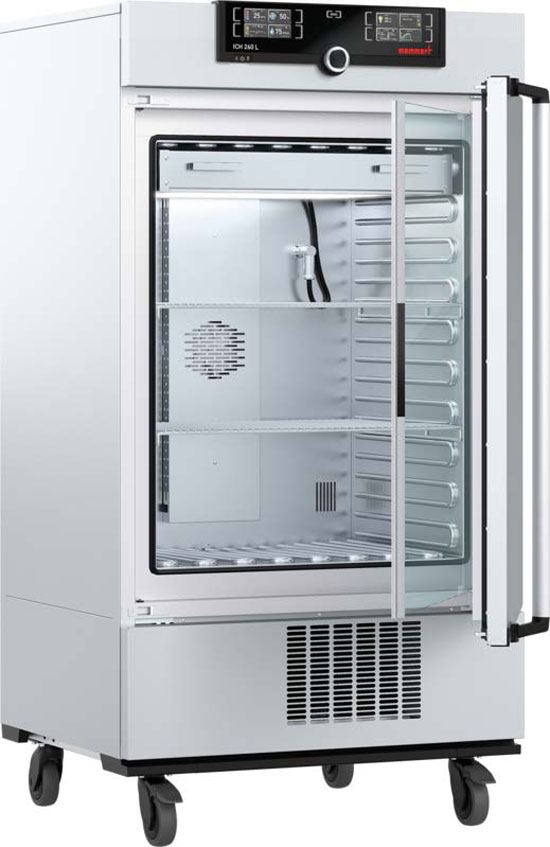

Memmert ICH260 L Stability Climate Chamber | 9.04 cu. ft.
Item#: ICH260LICH 260 L Memmert stability climate chambers guarantee the perfect atmosphere for climate and temperature tests. Unparalleled homogeneity of temperature and humidity.
*Please specify voltage when ordering
$23,616.00 $22,435.20
- Volume: 9.04 cu. ft. | 256 L
- Interior Dimensions W x H x D in (mm): 25.20" x 31.50" x 19.67" (640 x 800 x 500 mm)
- Exterior Dimensions W x H x D in (mm): 32.44" x 61.10" x 28.90" (824 x 1552 x 734 mm)
- Housing: rear zinc-plated steel
- Installation: on lockable castors
- Max. number of internals: 9
- Max. loading of chamber: 440.9 lbs (200 kgs)
- Max. loading per internal: 44.09 lbs (20 kgs)
- Electrical data: 230 Volts:
- 50 Hz / approx. 1350 W
Temperature Specs:
- Setting temperature range: 0 to +60 °C
- Working temperature range without humidity: 0°C up to +60°C
- Working temperature range with humidity: 10°C up to 60°C
- Setting accuracy temperature: 0.1°C
- Temperature sensor: 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error
Humidity Specs:
- Humidity supply with distilled water from external tank by self-priming pump
- Humidification by hot steam generator
- Active humidifying and de-humidifying adjustable from 10-80 % rh with digital display of relative humidity - resolution of display 0.1 %, setting accuracy 0.5 %
Control of Standard Components:
- Illumination unit consisting of 3 fluorescent lights with cold white light (standard illuminant D65, 6.500K) and 2 UV-lamps in the spectral range of 320-400 nm
- Daylight and UV-light can be programmed individually via controller
- Cold white light +/- 6 %, for UV-light +/- 10 %
- Stainless Steel Exterior: Scratch resistant, hygienic and durable.
- Warranty: A limited 2 year warranty is included with the option to purchase an extra year.
- ControlCOCKPIT: TwinDISPLAY. Adaptive multi-functional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.
- Language Setting: German, English, Spanish, French, Polish, Czech, Hungarian
- Adjustable Parameters: Temperature (Celsius or Fahrenheit), relative humidity, program time, time zones, summertime/wintertime
- Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
- Function SetpointWAIT: The process time does not start until the set temperature is reached
- Calibration: Three freely selectable values each, temperature/humidity/CO2
- Temperature control: mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 10°C above nominal temperature
- AutoSAFETY: additionally integrated over- and under temperature protection “ASF”, automatically following the setpoint value at a preset tolerance range, alarm in case of over- or under temperature, heating is switched off in case of overtemperature, the compressor in case of under temperature
- Alarm: with visual and acoustic alarm in case of over-/under temperature and under humidity, open door and empty water tank
- Temperature control: over- and under temperature monitor TWW, protection class 3.3 or adjustable temperature limiter TWB, protection class 2, adjustable at the controller
- Autodiagnostic system: integral fault diagnostics for temperature and humidity control
