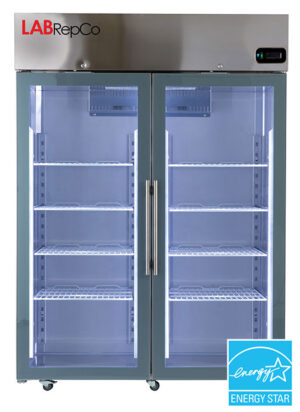

LabRepCo PRECISION Series 49 cu. ft. Laboratory Refrigerator | Hinged Glass Door
Item#: LP-49-HGLabRepCo PRECISION Series Laboratory Refrigerators deliver superior cooling to laboratory environments. Engineered with variable speed compressors (VSCs), these units feature ultra-quiet operation and significant energy savings. VSCs optimize energy consumption by self-adjusting to cooling demands. These compressors also deliver enhanced system performance and provide a longer lifespan than other compressor variations.
$11,510.00 $8,862.70
- External Dimensions: 54"W x 35 3/4" D x 81 1/2" H; 25 1/4" Door Swing; 59 1/8" Total open Depth
- Internal Dimensions: 49 1/8"W x 26 1/2" D x 59" H
- Storage capacity (cu. ft): 49
- Adjustable Temperature Range: 1°C to 10°C
- Door: Double Swing Glass Right and Left Hinged Door(s)
- Shelves: Ten adjustable, wire metal shelves with guard rail on back
- Drawers: Optional pull-out drawers available
- Mounting and Installation: 4 preinstalled swivel casters, front casters locking
- Interior lighting: Shielded, switched LED lighting, full coverage, balanced spectrum
- Airflow Management: Forced Air technology, patent pending
- External probe access: Rear wall port (3/4") dia.
- Insulation: Cabinet is foamed-in-place with EPA compliant high density urethane foam
- Exterior materials: White powder coated steel
- Interior materials: Stainless-steel
- Access control: Key Lock
- General warranty: Two (2) years parts and labor warranty
- Compressor warranty: Seven (7) years compressor warranty
- Product Weight (lbs): 581
- Shipping Weight (lbs): 700
- Rated Amperage: 4.5 Amps
- Power Plug/Power Cord: NEMA 5-15 plug
- Facility Electrical Requirement: 110-120V AC: 15 A (minimum)
- Agency Listing and Certification: ETL, C-ETL listed and certified to UL471 standard, hydrocarbon refrigerant safety
Performance
- Uniformity (Cabinet air): ±1.2
- Stability (Cabinet air): ±1.0
- Maximum temperature variation (Cabinet air): ±1.6
- Stability (Simulator ballast): Non-applicable
- Stability (Simulator bag): Non-applicable
- Temperature Rise after Short Door Openings: Non-applicable
- Recovery after Short Door Openings: Non-applicable
- Energy Consumption (KWh/day): 1.47
- Average Heat Rejection (BTU/hr): 465
- Noise Pressure Level (dBA): 38 or less installed
- Pull down time to nominal operating temp: 70 min
Refrigeration System
- Compressor: Hermetic, variable speed (VSC). Rated speed range: 1300-4000 rpm
- Refrigerant: EPA SNAP compliant, R600a
- Condenser: Anti-fouling tube and grid design, ultra-quiet multi-speed fan
- Evaporator: Fin and tube design, high efficiency fan
- Defrost: Cycle optimized, zero energy
Controller, Configuration, Alarms and Monitoring
- Controller technology: Proportional Integral Derivative (PID) microprocessor with LCD display
- Battery Backup: 24V high-capacity battery, controller, all alarms active, temperature monitoring DAQ and event logging active on battery backup
- Display technology: Non-applicable
- Digital Communication: RS-485 (MODBUS)
- Data Transfer: USB port for data transfer and software updates
- Chart Recorder: Non-applicable
- Adjustable Temperature Range: 1°C to 10°C
- External alarm connection: State switching remote alarm contacts
- Alarms: Alarm logging (last 100 entries) with Visual and audible indicators: Power failure, Temperature sensor failure, Battery voltage monitor and replacement, High / Low temperature, Door ajar.
- Controller probe: Bottle with glass bead thermal media
- Disclaimers: Performance data acquired at 22°C ambient, 4°C nominal set point in an empty cabinet with drawers using validation ballast probes, during stabilized steady state operation and a DAQ sampling rate of one measurement every 10 seconds
- Uniformity is defined as the maximum variance in temperature across all probes at any point in time over the testing period
- Stability is defined as the maximum variance in temperature experienced by any single probe over the testing period
- Data per Energy Star test results or equivalent testing and calculation. Heat rejection based on daily averages, not continuous operation. Performance exceeds Energy Star requirements.
LP-49-HG Data Sheet
