Labconco XPert Bulk Powder Enclosures

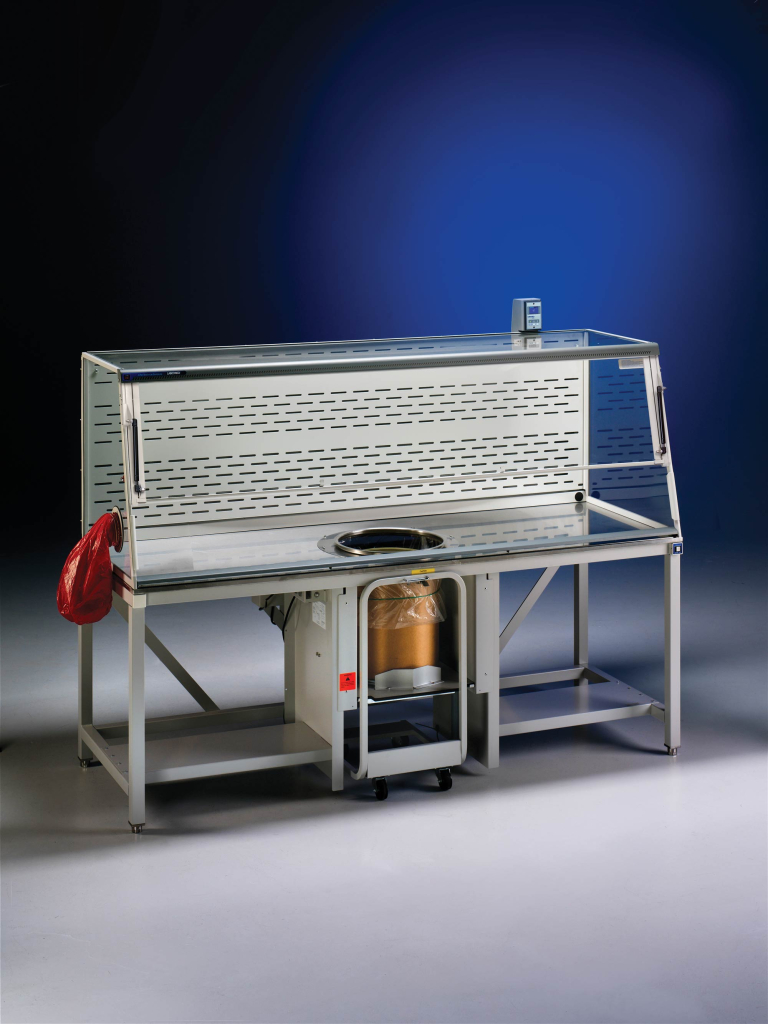

Item#: XPERT-POWDER-ENCLOSUREXPert Bulk Powder Enclosures provide user protection from hazardous airborne particulates and fumes generated during powder transfer operations. The push button operated electric hydraulic lift raises the bulk powder container, and a beam senses the container’s location and triggers the lift mechanism to automatically stop at the optimal ergonomic access height.
A transfer caddy is included. The work surface features a right side, center or left side access opening for up to 19” diameter source container.
- Ergonomic air foil with aerodynamic Clean-Sweep airflow openings.
- Upper dilution air supply.
- Upper containment sash foil.
- Zone-perforated, pivoting rear baffle.
- Side-entry air foils.
- Guardian 1000 Digital Airflow Monitor that continuously monitors airflow and provides a digital readout of actual face velocity.
- Audible/visual alarm alerts
- RS-485 communications port allows connection to user-supplied computer and may be configured for external input connections such as night setback or external alarm and up to three output relays.
- Stainless steel work surface with front spill trough and right-side, center or left-side access opening for source container (drum).
- 2" square tubular steel base stand with leveling feet.
- Transfer caddy of glacier white, powder- coated 1" square tubular steel frame with 3" diameter caster that holds container up to 28.0" high x 19.5" dia. With caddy latch and positioning plate.
- Push-button operated electric hydraulic lift mechanism for raising the container to the optimal ergonomic height (12.0" maximum travel distance). 350 lb. weight capacity.
- Electronic beam to sense the location of the container and trigger the lift mechanism to automatically stop at the optimal access height.
- Left side-mounted waste chute. Bags not included. Minimum bag size required: 10" x 16".
- Fourplex electrical receptacle located underneath the work surface.
- 1/4" thick tempered safety glass front sash and sides.
- Glacier white and gray, powder-coated aluminum frame and steel rear plenum and baffle. No unreliable plastic-to-plastic bonding is used.
- Ergonomic angled and hinged, pivoting sash with wiping seal, external gas-assist lift, 12.0" sash opening height, 25.75" locking height and 28.25" maximum loading height.
- Two (1.5") utility ports for pass-through of electrical cords.
- 8' cord included.
- Shipped in two sections.
- Three 2" x 10" rectangular exhaust openings on the top. Cover(s) provided for unused openings.
- Particulate containment independently verified by SafeBridge Consultants, Inc.
- Regulation Conformity: SEFA 1, Modified ASHRAE 110, ANSI Z9.5, UL 61010-1, CAN/CSA C22.2 No. 1010.1
- Ergonomic air foil with aerodynamic Clean-Sweep airflow openings
- Upper dilution air supply with by-pass air
- Upper containment sash foil
- Zone-perforated rear baffle that pivots down for easy cleaning
- Side entry air foils
- Generous 30” interior depth and 32” interior height for large equipment
- Guardian 1000 digital airflow monitor
- Stainless steel work surface with front spill trough to catch spills
- Tempered safety glass front sash, sides and top
- Dry powder epoxy-coated steel exterior
- 2” square tubular steel base stand
- 12” high sash opening
- Ergonomic angled sash with sealed gas-assisted springs may be pivoted upward and remains unassisted at 28” loading height
- Includes transfer caddy of glacier white, epoxy-coated 1” square tubular steel frame with 3” diameter casters with caddy latch and positioning plate
- Push-button operated electric hydraulic lift mechanism to automatically stop at the optimal access height
- Electronic beam to sense the location of container and trigger the lift mechanism to automatically stop at the optimal access height
- Tempered safety glass front sash on sides and top
- Dry powder epoxy-coated steel exterior
- 2” square tubular steel based stand with leveling feet
- Left side-mounted waste chute (bags not included)
- Electrical fourplex receptacle located underneath the work surface
- 2”X 10” exhaust connection (two on 8’ models)
Options
- Widths of 5’, 6’ and 8’
- Right-side, center, or left-side access opening for source container
- International electrical configuration
Required Accessories
- Connection to house exhaust, a remote blower or Filtermate Portable Exhausters.
- Carbon Filter or Canopy required for some applications (see brochure)
Optional Accessories
- Retaining Rings
- Safety Sleeves
- Retaining Bands
- Access Opening Cover
- Additional Transfer Caddy
- FilterMate Portable Exhausters
- Fluorescent Light Kit
- Upper Exhaust Transition Adapter
- Dual Exhaust Tee
- Remote Blower
- Utility Shelf Kit with three shelves
- Bottle Holder
- Tissue Holder
Compliance
- Modified ASHRAE 110-1995
- UL 3101-1/1010-1 (115 V models)
- CAN/CSA C22.2 No. 110.1 (115 V models)
- CE Conformity Marking (230 V models)
