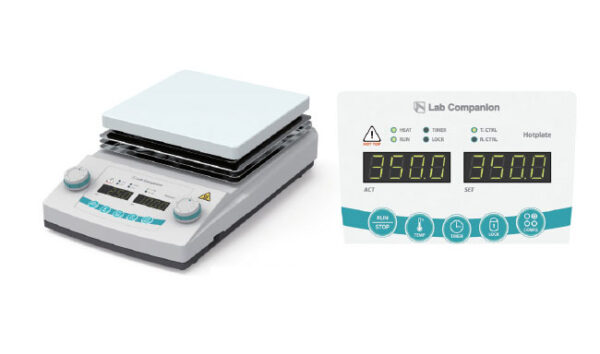

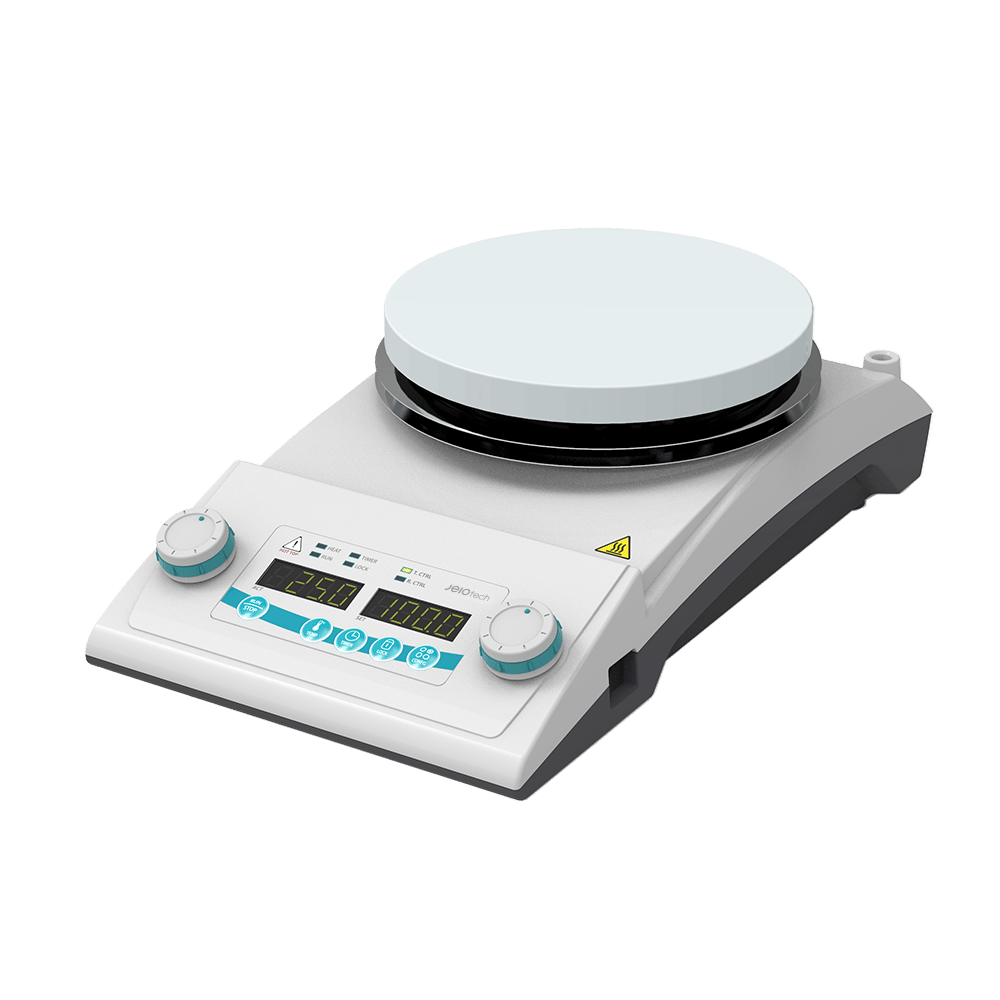

Lab Companion T-17SG Hotplate (Digital, Φ170mm), US plug
Item#: AAH35073UThe Lab Companion T-17SG Hotplate has a white ceramic coated top plate for corrosion resistance and includes a number of safety functions
$696.00 $661.20
Heating
- Temperature range (℃ /℉): Top plate, Max, 350 / 662
- Control mode: PID Feedback (optional, fast, slow)
- Display resolution (℃ /℉): 0.1 / 32.18
Material
- Top plate: White ceramic coated aluminum alloy
- Body: Powder coated aluminium alloy
Dimension
- Top plate (Ø or W x D, mm / inch): 170 / 6.69
- Exterior (W x D x H, mm / inch): 191 x 330 x 101 / 7.52 x 12.99 x 3.98
- Net weight (kg / lbs): 2.9 / 6.39
Timer: Max. 99 hrs 59 min.
Electrical requirements: (120V, 60Hz, A) 6.7
Structural Functional Features
- Five models provided according to the size and shape of hot plate.
- Top plate coated with white ceramic for excellent corrosion resistance.
- Excellent heat transfer and durability due to heater-integrated structure.
- Possible to set the upper and lower limit of temperature control range.
Use Convenience Features
- Easy adjustment of heating rate and stirring speed of each heater with individual control knobs.
- Temperature control mode selection function.
(Optimal/Fast/Slow/User/Point) - Includes temperature auto-tuning and calibration functions.
- Count-down timer provided. (up to 99 hours and 59 minutes)
- Clamp Rod (option) can be added to the main body to fix other experiment equipment.
- Convenient experiment observation with removable transparent shield. (option)
Outstanding Safety
- Spill-proof design minimizes inflow solution into device.
- Preventing equipment failure with multiple over temperature prevention devices.
- Separate buttons for safe operating.
- Warning displayed when top plate is 50°C or more.
- Malfunction prevented by controller lock function.
- The heating bath (option) is combined with the top plate to ensure safety. (except T-QG)
