Lab Companion RS-2 Funnel Shaker
Item#: AAH32023UEnhanced mixing efficiency the RS-2 funnel shaker provides double sided vertical reciprocation and adjustable tilt (up to 20º).

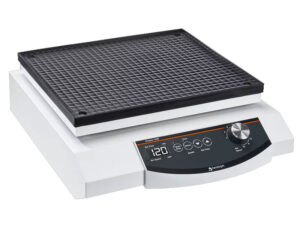

Please Note: image shown includes additional accessories not included with purchase
$7,182.00 $6,822.90
- Shaking system-
- Motion type: Vertical & Inclined reciprocating (0 ~ 20°)
- Speed range (rpm): Vertical 30 to 300 / Inclined 30 to 250
- Speed accuracy at 100rpm (± rpm): 1
- Timer: 999hr 59 min
- Dimension-
- Exterior (W x D x H mm): 600 x 460 x 470
- Minimum required space considering 20º tilt: 900 x 460 x 670
- Max. load per each side (kg): 5
- Net weight (kg): 52
- Electrical: 120V / 60Hz (A) 0.7 (220V order AAH32025K)
High mixing efficiency and enhanced durability
- Vertical reciprocation at a maximum of 300 rpm and 40 mm stroke length.
- Adjustable shake tilt to achieve high mixing efficiency at low rpm.
- Use of BLDC motor provides outstanding durability, lower noise level, and enhanced stability compared to competitor products using DC motors.
Easy sample installation and removal;stable operation
- One-touch mechanism for swift and easy funnel installation and removal, even by female researchers.
- Stable center of gravity design minimizing vibration even with one sided sample installation or high speed tilted movement.
Simultaneous mixing of up to 4 * 2L funnels
- Fits cone or cylindrical type funnels of up to 2L capacity (capacity limit for previous model was 1L).
- Simultaneous installation of up to 10 * ❮ 0.5L funnels, 6 * 0.5-1L funnels, and 4 * 2L funnels (2 double sided holders provided in basic set).
| Funnel capacity | Round type | Cylindrical type |
|---|---|---|
| Less than 500 ㎖ | 3-5ea | 3-5ea |
| 500 ㎖ | 3ea | 3ea |
| 1L | 3ea | 3ea |
| 2L | 2ea | 2ea |
Controller for convenience and safety in use
- Controller with display panel installed at a 20º angle, allowing good visibility even from the floor; ease of operation.
- Safety devices for protecting the user and the experiment (protecting the device from overcurrent, automatic resumption upon return of power supply after power failure).
More flexibility in experiment schedule
- LC Connected (mobile monitoring system) network for flexibility in experiment planning (option).
- Count-down timer (Max. 999 hr. 59 min.).
