Lab Companion OS-7100 Orbital Shaker (1″ Stroke) | 120V
Item#: AAH3D1465UThe Lab Companion OS-7100 Orbital Shaker offers a speed range of 30 to 500 rpm with precision control. This orbital shaker features a digital interface with remote control & monitoring via mobile app.

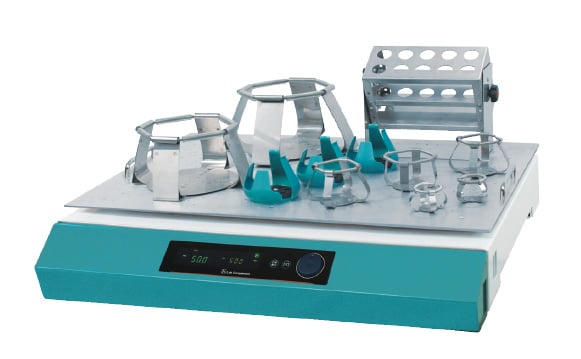

Please Note: image shown includes additional accessories not included with purchase
$5,223.00 $4,961.85
- Motion type: Orbital
- Speed range (rpm): 30 to 500
- Max. speed per permissible load:
- 500rpm (max. 10 kg)
- 400rpm (max. 30 kg)
- Amplitude size (mm / inch, dia.): 25.4 / 1
- Speed stability (rpm, %): 1
- Timer (wait on/off): 999hr 59min
- Dimension:
- Platform (W x D, mm / inch): 755 x 520 / 29.6 x 20.5
- Body (W x D, mm / inch): 755 x 627 x 151 / 29.7 x 24.7 x 5.9
- Net weight (Kg / lbs): 117 / 257.9
- Electrical requirements (120V, 50 / 60Hz): 0.8A
Structural Functional Features
- World Class, up to 500rpm.
- OS-2000, 3000, and 4000 models application of BLDC motor & belt system selectable rotational/reciprocal motion.
Compact and powerful shaking. - OS-7000 model
Application of DD motor & triple cam system stable shaking ability (registration: 10-1678160) - Stable shaking with low center of gravity structure.
- Powder coating applied to outer surface for reinforced corrosion resistance.
- Structure prevents the sample from flowing into the inside.
Use Convenience Features
- Accurate shaking with PID feedback control.
- Precision control with rpm calibration function.
- Count-down timer. (up to 999 hours and 59 minutes)
- Intuitive and useful real-time rpm changes.
- Soft start and stop shaking function.
- Monitor via mobile app anytime, anywhere with LC Connected.
(mobile monitoring system) (when purchased LC GreenBox) - Soft start and stop shaking function.
- The user can select a clockwise / counterclockwise rotation
- Usable when ambient temperature is at least 4°C.
- Various accessories depending on sample containers.
- Possible to stop the equipment at the same position.
Smart Self-diagnosis
- Real-time self-diagnostics to check equipment for abnormal conditions
- Alarm from monitoring actual rpm error relative to the set rpm.
- When device instability occurs.
(high rpm, overload, weight imbalance, etc.) - Detects abnormal conditions relating to the platform on which the sample is placed and stops the operation.
- Automatic restart in the event of sudden power loss.
Optimized Rational Model Configuration
- Wide range of models from small to large type.
- 10 – 500 rpm for all applications.
- Applies four different shaking diameters. (amplitudes)
- Provides four sizes of platform models.
- Dual Action model. (rotational/reciprocal motion)
- Accessories for shared use.
