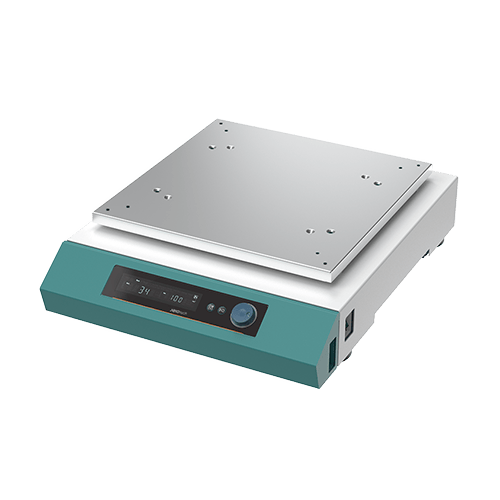

Lab Companion OS-4000 Orbital Shaker
Item#: AAH3D1365UOptimal orbital shaker model configuration with powerful performance
- Provides powerful shaking.
- Orbital/Reciprocal motion selection.
- 120V, 60Hz

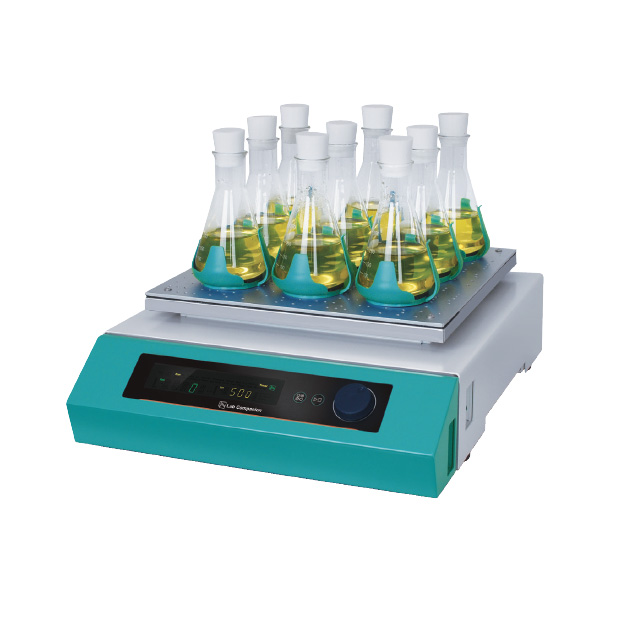

Please Note: image shown includes additional accessories not included with purchase
$3,588.00 $3,408.60
- Weight: 118 lbs
- Dimensions: 22 × 28 × 15 in
- Motion type: Orbital
- Speed range (rpm): 20 to 500
- Max. speed per permissible load
- 500rpm (max. 14 kg)
- 400rpm (max. 21 kg)
- Amplitude size (mm / inch, dia.): 19.1 / 0.75 (default)
- Speed stability 2) (rpm, %): 1
- Timer (count-down): 999hr 59min
- Platform (W x D, mm / inch): 450 x 450 / 17.7 x 17.7
- Body (W x D x H, mm / inch): 510 x 632 x 156 / 20.1 x 24.9 x 6.1
- Net weight (Kg / lbs): 43 / 94.8
- Electrical requirements (120V, 50 / 60Hz): 0.6A
Structural Functional Features
- World Class, up to 500rpm.
- OS-2000, 3000, and 4000 models application of BLDC motor & belt system selectable rotational/reciprocal motion. Compact and powerful shaking.
- OS-7000 model Application of DD motor & triple cam system stable shaking ability (registration: 10-1678160)
- Stable shaking with low center of gravity structure.
- Powder coating applied to outer surface for reinforced corrosion resistance.
- Structure prevents the sample from flowing into the inside.
Use Convenience Features
- Accurate shaking with PID feedback control.
- Precision control with rpm calibration function.
- Count-down timer. (up to 999 hours and 59 minutes)

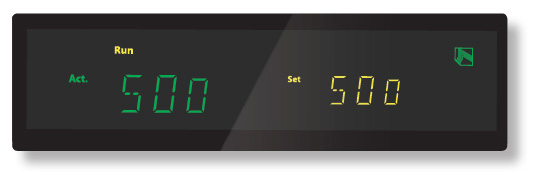

- Intuitive and useful real-time rpm changes.
- Soft start and stop shaking function.

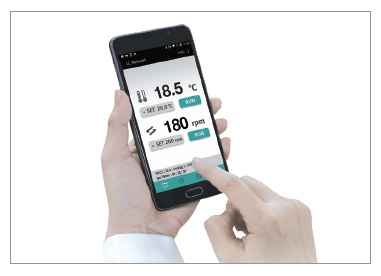

- Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (when purchased LC GreenBox)
- Soft start and stop shaking function.
- The user can select a clockwise / counterclockwise rotation
- Usable when ambient temperature is at least 4°C.
- Various accessories depending on sample containers.
- Possible to stop the equipment at the same position.
Smart Self-diagnosis
- Real-time self-diagnostics to check equipment for abnormal conditions
- Alarm from monitoring actual rpm error relative to the set rpm.
- When device instability occurs. (high rpm, overload, weight imbalance, etc.)
- Detects abnormal conditions relating to the platform on which the sample is placed and stops the operation.
- Automatic restart in the event of sudden power loss.
Optimized Rational Model Configuration
- Wide range of models from small to large type.
- 10 – 500 rpm for all applications.
- Applies four different shaking diameters. (amplitudes)
- Provides four sizes of platform models.
- Dual Action model. (rotational/reciprocal motion)
- Accessories for shared use.
