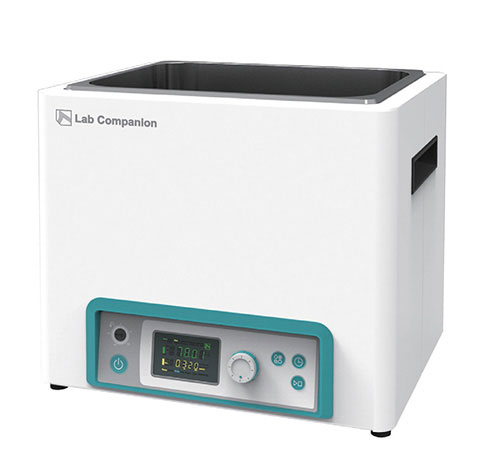

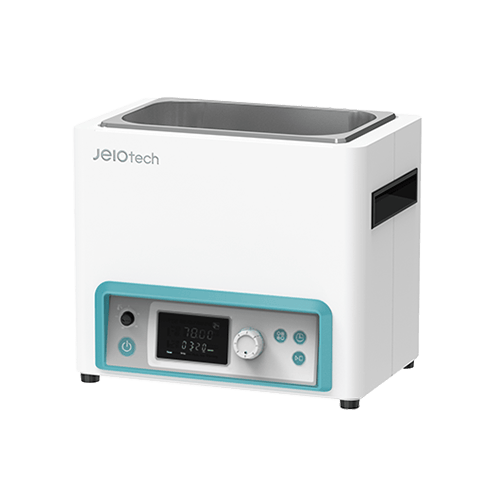

Lab Companion BW3-05G Heating Bath (3.5L)
Item#: AAH41306UGeneral Type representative water bath with advanced features and specifications.
- Temperature calibration & timer.
- Low solution level limiter.
- 120V 50/60Hz 22lbs 14.0 x 10.2 x 13.1 5L (0.2cu ft)
$1,198.00 $1,138.10
- Bath volume (L / cu ft): 3.5 / 0.1
- Temperature
- Working temp. range (℃ / ℉): Amb. +7 to 100 / Amb. +12.6 to 212
- Temp. stability at 50℃ (±℃ / ℉): 0.4 / 0.72
- Heat up time to 70℃ (min): 34
- Dimension
- Bath opening / depth (W x L, D) (mm / inch): 240 x 136 x 150 / 9.4 x 5.4 x 5.9
- Exterior (W x L x H) (mm / inch): 307 x 200 x 264 / 12.1 x 7.9 x 10.4
- Net weight (kg / lbs): 6.5 / 14.3
- Electrical requirements (120V, 60Hz, A): 5.8
- Plug Type: Type B l NEMA 5
- Cat. No.: AAH41306U
Structural Functional Features
- Drain valve for easy draining of bath solution.
(except for BW3-05G model) - Convenient structure for sample handling with device control part located on the inside.
- Convenient for carrying and moving with handles on the left and right sides.
- The internal bath is integral structure. It is made of stainless steel and has excellent durability.
- Compact design for excellent space utilization
Use Convenience Features
- Clear VFD panel for clear information display.
- Microprocessor PID method for precise temperature control.
- Optimized temperature control with temperature auto-tuning.
- 3-point calibration function minimizes temperature difference.
- Wait On/Off timer. (up to 99 hours 59 minutes)
- Save and use 3 frequently used temperatures.
- Automatic restart of operation when power is restored after sudden power failure.
Outstanding Safety
- Top-rated overheating prevention system.
(registration 10-0397583) - Over temperature limit function.
- Safe structure in which the heater, sensor, and pump inside the bath are separated by covering plates.
- Malfunction prevented by controller lock function.
