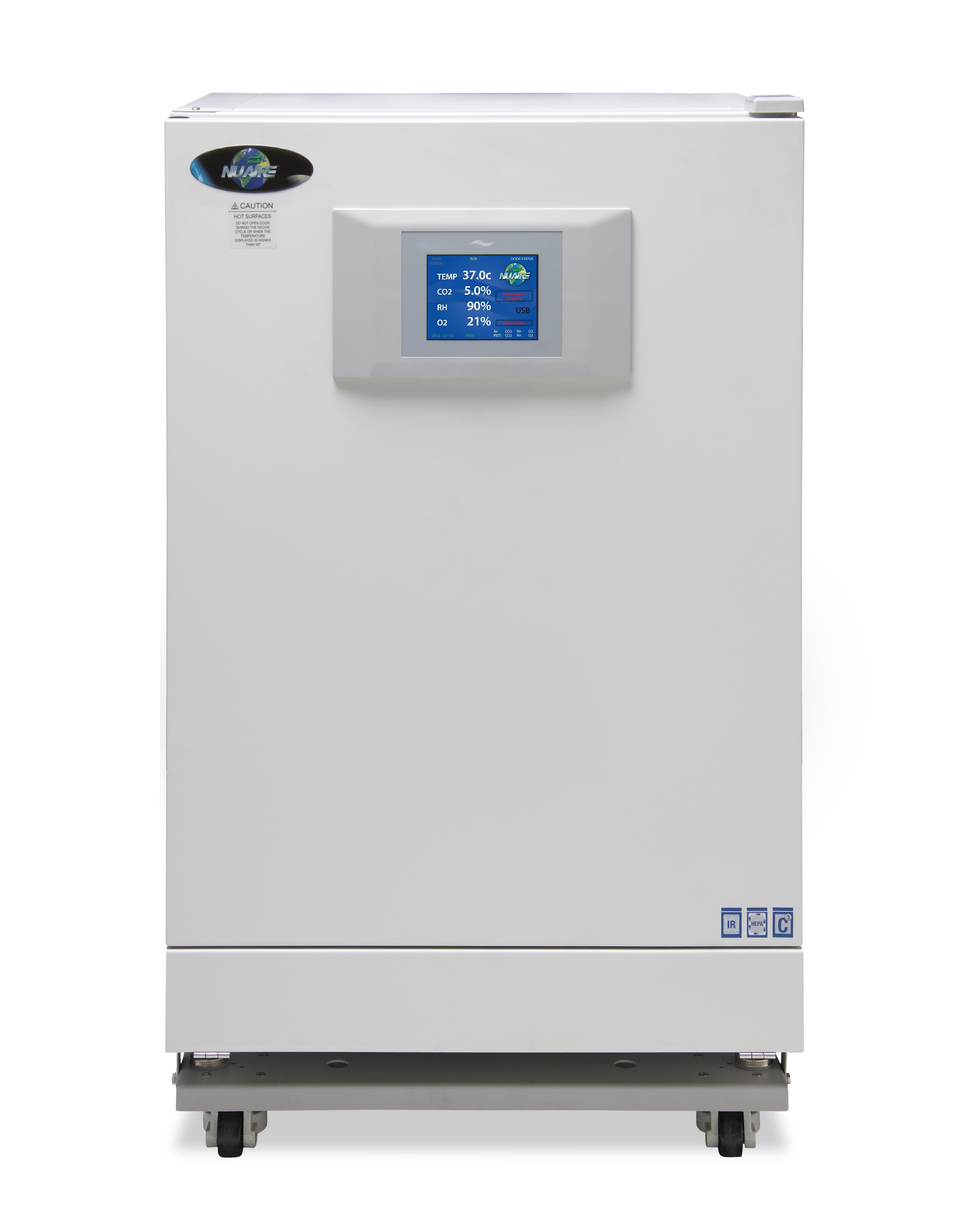

In-VitroCell ES NU-5841 Direct Heat Hypoxic CO2 Incubator |Dual Sterilization| Humidity & O2 Control | 7.06 cu. ft. (200L)
Item#: NU-5841The In-VitroCell ES NU-5841 CO2 Incubator provides an easy method to monitor and control humidity and oxygen levels in the chamber for hypoxic stress studies, stem cell culture, carcinogenic tumors, toxicity, and more.
Dimensions"
- Exterior Dimensions (W x D x H): 26.75 x 27.12 x 41.5 in. (679.5 x 689 x 1054 mm)
- Foot Print (W x D) 23.75 x 20.75 in. (603.2 x 527.1 mm)
- Interior Dimensions (W x D x H): 21.5 x 21 x 26.5 in. (546.1 x 533.4 x 673.1 mm)
- Volume: 7.06 ft3 (200 L)
- Net Weight: 235 lbs (106 kg)
Temperature Control:
- Control Range: 5° above ambient (to a 30° max ambient) to 55°
- Set-Point Range: 5°C to 55°C (37.0 Default)
- Uniformity: ±0.35°C @ 37°C
- Accuracy: ± 0.1°C
- Recovery: 0.12°C/min. on Average
- Display Resolution: 0.1°C
- Door and Perimeter Heater Control Logic: Base Duty Cycle set to chamber temperature Set-Point Proportional 0-100% [manually adjustable]
- Temperature Sensor Type: Precision Integrated Circuit
CO2 Control Standard:
- Range: 0.1 to 20% 5% Default Set Point
- Accuracy: ±0.1%
- CO2 Recovery: Up to 5% ±0.2% / -0.5 in 5 minutes Average
- CO2 Display Resolution: 0.1%
- CO2 Control Logic: Fixed Algorithm/Manual, Environmental Adaptable
- CO2 Sensor Type: Infrared (NDIR)
Relative Humidity Display and Control:
- Control Range: Ambient dependent to 90%
- RH Accuracy: ±3%
- RH Recovery: 90% +5%/-3% within 25 minutes on average
- Display Resolution: 0.1%
- RH Control Logic: Fixed algorithm/manual environmental adaptable
- RH Sensor Type: Precision capacitance bulk-polymer
Oxygen Display and Control:
- Control Range: 0.5 -21.0% (ambient) (21.0% Default)
- O2 Accuracy: +0.25%
- Display Resolution: 0.1%
- RH Control Logic: Fixed algorithm/manual environmental adaptable
- RH Sensor Type: Zirconia Ceramic
- Four (4) Stainless Steel Shelves
- Eight (8) Stainless Steel Shelf Guides
- Four (4) Shelf elf Brackets
- Field Reversible Outer Door
- Remote Alarm Output Contacts
- 4 to 20 mA Analog Output
- RS-485 Communication
- USB Port
- CO2 Sample Port
- Adjustable Leg Levelers
- Access Port and plug with breather holes
- One (1) Water Pan
- One (1) 6.5 ft. / 2 m Electrical Cord
*** Laboratory testing shows that, when cleaned regularly, CuVerro® antimicrobial copper surfaces kill greater than 99.9% of the following bacteria within 2 hours of exposure: MRSA, Staphylococcus aureus, Enterobacter aerogenes, Pseudomonas aeruginosa, and E. coli O157:H7. CuVerro® antimicrobial copper surfaces are a supplement to and not a substitute for standard infection control practices and have been shown to reduce microbial contamination, but do not necessarily prevent cross contamination; users must continue to follow all current infection control practices, including those practices related to cleaning and disinfection of environmental surfaces. CuVerro® is a registered trademark of GBC Metals, LLC and is used with permission. NA-003-1208
-
