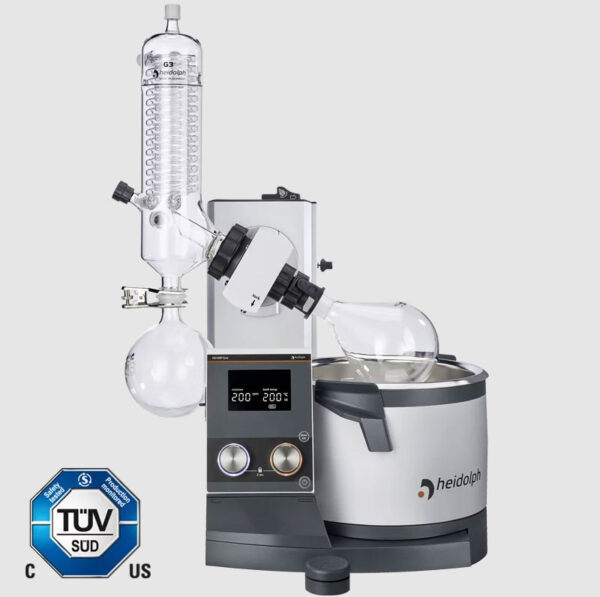

Heidolph Hei-VAP Core Rotary Evaporator
Item#: HEI-VAPCOREThe Heidolph Hei-VAP Rotary Evaporators offer an operating concept that is focused on the essentials: clear and with access to the basic parameters rotation speed and heating bath temperature at any time.
- Lift: Hand lift or Motor lift
- Rotation speed range: 10 - 280 rpm
- Rotation speed indicator: 3.5" LCD Display
- Heating capacity: 1,300 W
- Overheat protection bath: cut-off at 5°C over set temperature via separate PT 1000
- Bath temperature setting: 3.5" LCD Display
- Heating bath temperature control: electronic / digital
- size evaporating flask: 5 l
- Integrated vacuum controller -
- Timer -
- Integrated Hei-CHILL controller -
- Vacuum program Dynamic AUTOaccurate (requires AUTOaccurate sensor) -
- Programmable ramps -
- Condensing surface: 1,400 cm
- Condensing surface XL condenser: 2,200 cm
- Clear digital display showing actual and set values
- Two separate knobs with dynamic control for setting the rotation speed and heating bath temperature: fast turning for large jumps, slow turning for precise setting of the set values
- Accidental changing of the values can be prevented by the lock function
- Intuitive LED ring light system makes activated functions clearly visible even from a distance
- Easy adjustment of the immersion depth up to 155 mm and the inclination angle from 20° to 80°
- Standby function and residual heat warning at heating bath temperatures above 50 °C
- Available as hand or motor lift models
- The standby button stops all functions and, when using a motor lift model, lifts the evaporating flask from the heating bath.
