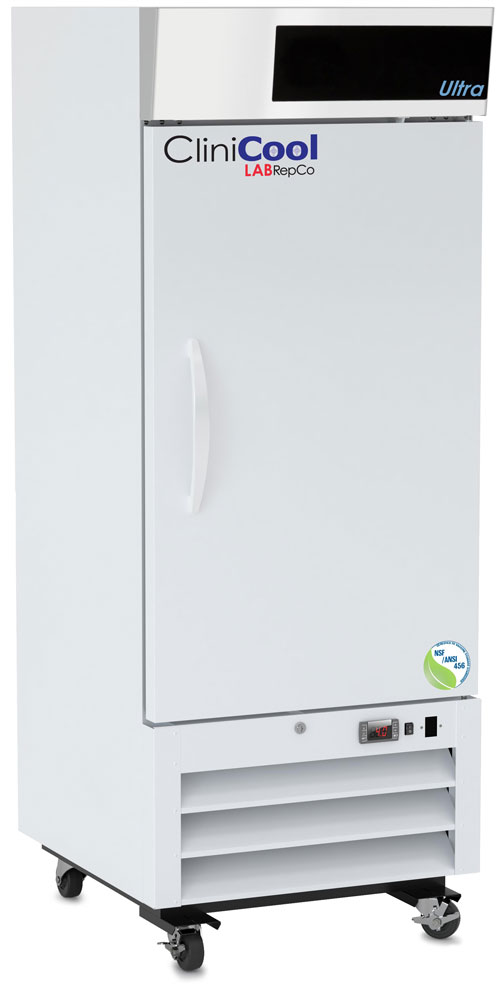

CliniCool© Ultra Series 12 Cu. Ft. NSF Certified Pharmacy/Vaccine Refrigerator | Solid Door

• Temperature setpoint range: +1°C to +10°C (Controller settings must remain unaltered to ensure thermal performance compliant with NSF/ANSI 456 Standard for Vaccine Storage requirements)
• Operational environment: Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH
• Storage capacity: 12 cu. ft. gross volume
• Exterior Dimensions (WxDxH): 25" x 29" x 65 3/4"
• Interior Dimensions (WxDxH): 20 3/8" x 19 1/4" x 36 1/8"
• Door: One swing solid door, self-closing, right hinged, non-reversible, magnetic sealed gasket, keyed lock

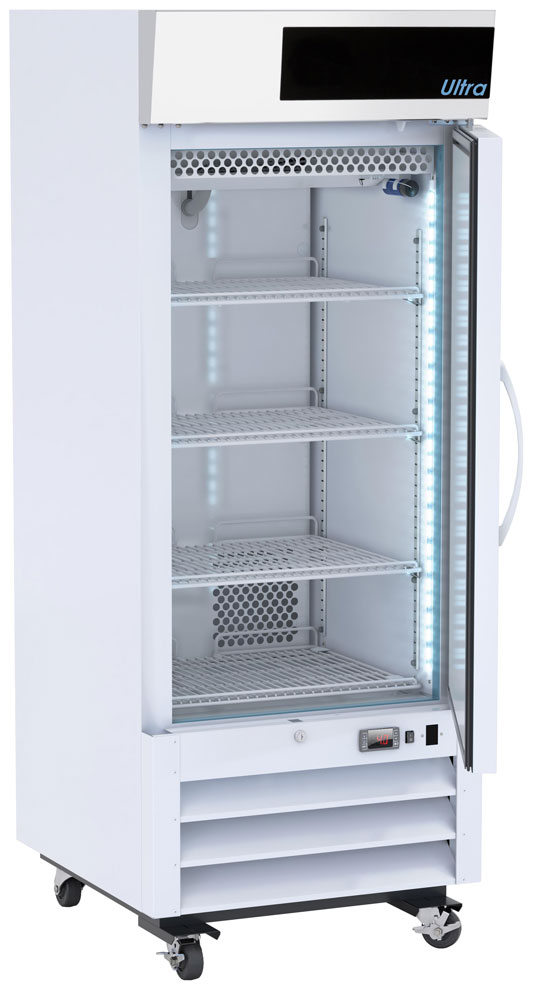

• Shelves: Four shelves (three adjustable/one fixed) with guard rail on back
• Mounting: 3 1/2" Swivel Casters (two locking)
• Interior lighting: Shielded, switched LED lighting, full coverage, balanced spectrum
• Airflow management: Forced Air technology, patent pending
• External probe access: Rear wall port (3/4") dia.
• Insulation: Cabinet is foamed-in-place with EPA compliant high density urethane foam
• Exterior materials: White powder coated steel
• Access control: Pyxis®, Omnicell® and AcuDose RX® compatible
• General warranty: One (1) years parts and labor warranty, excluding display probe calibration
• Compressor warranty: Five (5) years compressor warranty
• Product Weight: 231 lbs.
• Shipping Weight: 256 lbs.
• Rated Amperage: 3 Amps
• Power Plug/Power Cord: NEMA 5-15 plug, 8 to 10 ft typical, conforms to UL471 requirements, Vaccine storage power cord warning label
• Facility Electrical Requirement: 110-120V AC: 15 A (minimum)
• Agency Listing and Certification: Certified with the temperature performance requirements as defined in the NSF/ANSI 456 Standard for Vaccine Storage for all testing scenarios. UL, C-UL, ETL, C-ETL listed and certified to UL471 standard, hydrocarbon refrigerant safety.
• Included Accessories:
  • Pharmacy refrigerator/freezer toolkit and temperature logs
  • Temperature Monitor Device - Complies with The Current CDC Guidelines, 3 Years Certification Of Calibration, “Buffered” Probe In The Product Simulated Solution, Min/Max Memory, °F/°C Switchable, Field Installable, And Visual & Audible Temperature Alarms

Performance

• Uniformity¹ (Cabinet air): +/- 0.7°C
• Stability² (Cabinet air): +/- 1.3°C
• Maximum temperature variation (Cabinet air): +/- 1.1°C
• Temperature rise after an after 8 sec door openings: Temperature did not exceed 5.4°C at any probe for all required NSF/ANSI 456 testing protocols
• Recovery after 3 min door opening: All probes recover to under 8°C within 2.5 min.
• Energy consumption: 1.32 KWh/day
• Average heat rejection: 2.21 KWh/day (315 BTU/h)
• Noise pressure level (dBA): 49 or less installed
• Pull down time to nominal operating temp: 30 min

Note: The CDC requires a data logger or temperature monitoring device to consistently record live temperature readings from the inside of a refrigerator or freezer when storing all types of vaccines. Constant monitoring of vaccines at recommended temperatures is essential for maintaining the efficacy of a vaccine. Failing to do so can lead to wasted vaccines or ineffective vaccines being administered to patients. Please follow the CDC requirements for Vaccine Storage & the COVID-19 Vaccination Program found here.
