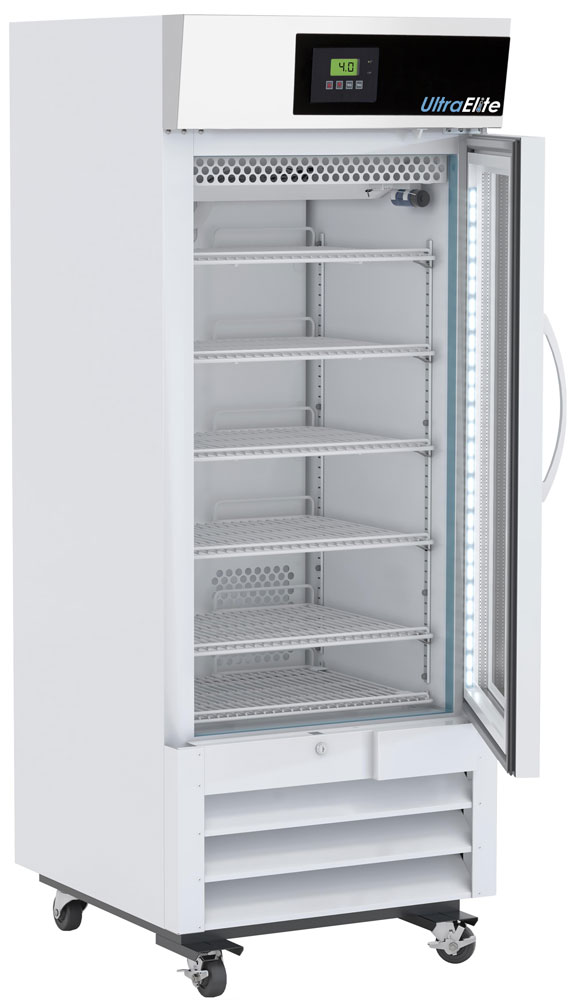

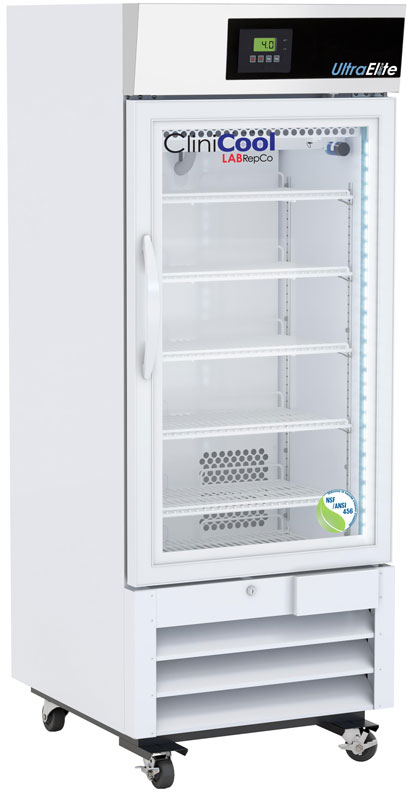

CliniCool© Ultra Elite Series 12 Cu. Ft. NSF Certified Pharmacy/Vaccine Refrigerator | Hinged Glass Door
Item#: LHE-12-HG-PHNSFThe CliniCool Ultra Elite series NSF certified glass door medical refrigerators are designed specifically for the storage of a variety of vaccines, pharmaceuticals and other temperature sensitive materials often used within the clinical and medical industries. These NSF certified medical grade refrigerators provide superior sample security with audible & visual high/ low temperature alarms and remote alarm contacts for complete temperature control and awareness. The LHE-12-HG-PHNSF comes standard with one glass door, digital temperature display & alarm module, microprocessor controller, LED interior lights, 3/8” probe access port, data logger and a pharmacy refrigerator/freezer toolkit with temperature logs.
Includes: Temperature Monitor Device - Complies with The Current CDC Guidelines, 3 Years Certification Of Calibration, “Buffered” Probe In The Product Simulated Solution, Min/Max Memory, °F/°C Switchable, Field Installable, And Visual & Audible Temperature Alarms.
What does NSF certified vaccine storage mean? Click here to learn more
$7,950.00 $6,121.50
- Temperature setpoint range: +1°C to +10°C (Controller settings must remain unaltered to ensure thermal performance compliant with NSF/ANSI 456 Standard for Vaccine Storage requirements)
- Operational environment: Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH
- Storage capacity: 12 cu. ft. gross volume
- Exterior Dimensions (WxDxH): 25" x 29" x 65 3/4"
- Interior Dimensions (WxDxH): 20 3/8" x 19 1/4" x 36 1/8"
- Door: One swing glass door, self-closing, right hinged, non-reversible, magnetic sealed gasket, keyed lock
- Shelves: Six shelves (five adjustable/one fixed) with guard rail on back
- Mounting: 3 1/2" Swivel Castors(two locking)
- Interior lighting: Shielded, switched LED lighting, full coverage, balanced spectrum
- Airflow management: Forced Air technology, patent pending
- External probe access: Rear wall port (3/4") dia.
- Insulation: Cabinet is foamed-in-place with EPA compliant high density urethane foam
- Exterior materials: White powder coated steel
- Access control: Pyxis®, Omnicell® and AcuDose RX® compatible
- General warranty: Two (2) years parts and labor warranty, excluding display probe calibration
- Compressor warranty: Five (5) years compressor warranty
- Product Weight: 224 lbs.
- Shipping Weight: 264 lbs.
- Rated Amperage: 3 Amps
- Power Plug/Power Cord: NEMA 5-15 plug, 8 to 10 ft typical, conforms to UL471 requirements, Vaccine storage power cord warning label
- Facility Electrical Requirement: 110-120V AC: 15 A (minimum)
- Agency Listing and Certification: Certified with the temperature performance requirements as defined in the NSF/ANSI 456 Standard for Vaccine Storage for all testing scenarios. UL, C-UL, ETL, C-ETL listed and certified to UL471 standard, hydrocarbon refrigerant safety.
- Included Accessories:
- Pharmacy refrigerator/freezer toolkit and temperature logs
- Temperature Monitor Device - Complies with The Current CDC Guidelines, 3 Years Certification Of Calibration, “Buffered” Probe In The Product Simulated Solution, Min/Max Memory, °F/°C Switchable, Field Installable, And Visual & Audible Temperature Alarms
Performance
- Uniformity¹ (Cabinet air): +/- 0.7°C
- Stability² (Cabinet air): +/- 1.3°C
- Maximum temperature variation (Cabinet air): +/- 1.1°C
- Temperature rise after an after 8 sec door openings: Temperature did not exceed 5.4°C at any probe for all required NSF/ANSI 456 testing protocols
- Recovery after 3 min door opening: All probes recover to under 8°C within 2.5 min.
- Energy consumption: 0.61 KWh/day
- Average heat rejection: 1.20 KWh/day (315 BTU/h)
- Noise pressure level (dBA): 48 or less installed
- Pull down time to nominal operating temp: 30 min
Note: The CDC requires a data logger or temperature monitoring device to consistently record live temperature readings from the inside of a refrigerator or freezer when storing all types of vaccines. Constant monitoring of vaccines at recommended temperatures is essential for maintaining the efficacy of a vaccine. Failing to do so can lead to wasted vaccines or ineffective vaccines being administered to patients. Please follow the CDC requirements for Vaccine Storage & the COVID-19 Vaccination Program found here.
Controller, Configuration, Alarms and Monitoring
- Controller technology: Parametric, microprocessor, LED display with 0.1°C resolution
- Display Technology: NSF/ANSI 456 Standard for Vaccine Storage compliant digital temperature display and alarm module with battery back-up, F/C switchable.
- Temperature setpoint range: +1°C to +10°C (Controller settings must remain unaltered to ensure thermal performance compliant with NSF/ANSI 456 Standard for Vaccine Storage requirements)
- Display probe: Calibrated, stainless steel
- External alarm connection:
- State switching remote alarm contacts.
- Visual and audible indicators.
- Alarms: High / Low temperature, compliant with alarm requirements defined in the NSF/ANSI 456 Standard for Vaccine Storage
- Simulator ballast: Glass bead thermal media
Refrigeration System
- Compressor: Hermetic, high performance
- Refrigerant: EPA SNAP compliant, R290, propane
- Condenser: Fin and tube design, high efficiency fan
- Evaporator: Fin and tube design, high efficiency fan
- Defrost: Cycle optimized, zero energy
CliniCool NSF Certified Medical Vaccine Refrigerators Literature
DownloadLHE-12-HG-PHNSF Datasheet
DownloadLabRepCo CliniCool NSF Certified Refrigerator & Freezer Owners Manual
