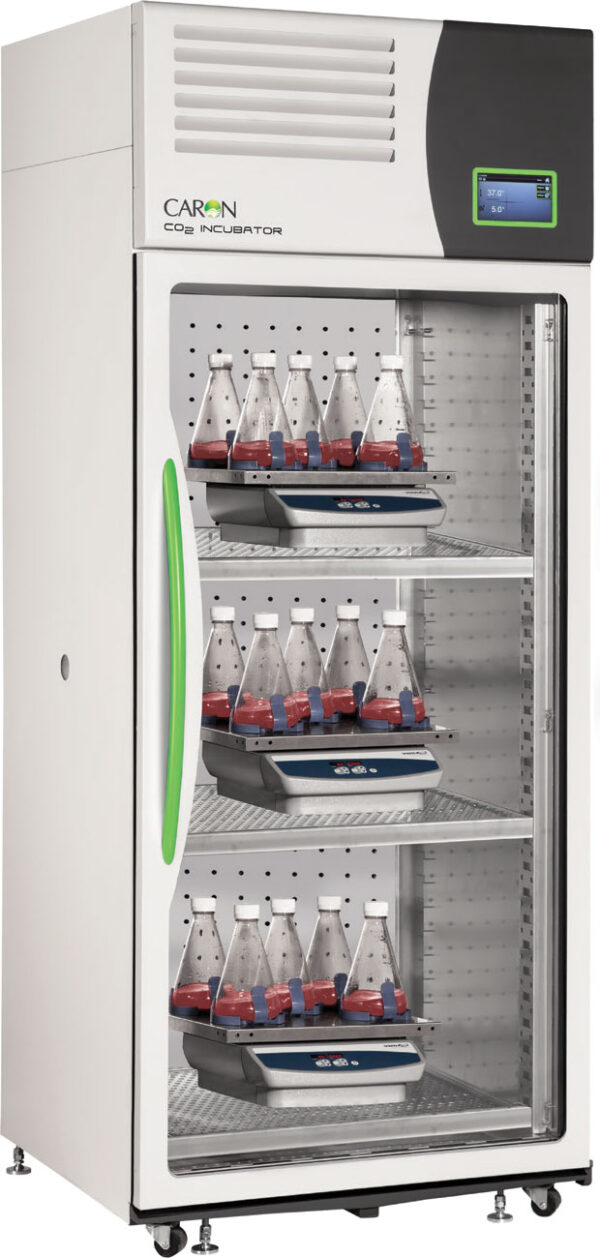

Caron Shaker Ready Reach-In CO2 Incubator | 33 Cu. Ft. (934L)
Item#: 7401-33Caron's reach-in CO2 incubators provide the cleanability, contamination elimination, and ease of use of a small stackable, but in a larger volume suitable for a wide range of scale-up applications. Ideal for use in demanding fields such as cell and gene therapy, Caron brand incubators offer the flexibility and capacity to switch between high capacity shake flask loads and high volume multi-layer flasks, with up to 500 lb. dynamic load capacity, equipment-compatible refrigeration, and swap-out shelving systems. All Caron reach-in's offer optional 2-hour dry H2O2 sterilization cycle, with validatable results and no post-cycle cleanup. Standard cleanroom-ready packages are also available, upgrading units for cGMP use with both aggressive cleaning chemicals, and in either free-standing or in-wall configurations.
- Temperature Range- 20 to 60°C (At 200W Max Heat Load At 20°C)
- Temperature Control- ±0.1°C
- Temperature Uniformity- ±0.3°C
- Temperature Sensor- RTD
- Humidity Range- Elevated Up to 95% at 37°C
- Controlled Humidity Range Ambient to 95% RH / ±3% RH
- CO2 Range- 0-20% CO2
- CO2 Control- ±0.1% CO2
- CO2 Sensor- Infrared CO2 Sensor
- Internal Outlets- 3 / GFCI Protected
- Interior Dimensions- 32” W x 27” D x 65.7” H (81.3cm x 68.6cm x 166.9cm)
- Exterior Dimensions- 35.5” W x 33.3” D* x 90.1” H (90.2cm x 84.6cm x 228.9cm)
- Interior Construction- 2B Finish Solid Stainless Steel (Type 304)
- Exterior Construction- Powder Coated Cold Rolled Steel
- Workspace- 33 ft (934 liters)
- Shelf Count- 2 Standard
- Shelf Construction- Reinforced Perforated Stainless Steel (Type 304)
- Shelf Capacity- 150 lbs. each (68kg)
- Shelf Dimensions- 29.25” W x 24.45” D (74.3cm x 62.1cm)
- Shipping Weight lbs.- 775 lbs. (1,050 lbs. crated)
- Shipping Weight kg.- 352 kg. (476 kg. crated)
- Electrical: 115V, 60 Hz, 16A
- Available Chamber Sterilization
• Unique patented 2 hour H2O2 chamber sterilization
• Removable module can be moved from chamber to chamber
• Fast cycle setup and cleanup - Equipment Ready
• Reinforced shelves handle vibration and weight for large shakers with full platforms up to 30” (76cm) wide
• Built-in refrigeration removes equipment heat, preventing over temperature events
• Standard GFI outlets for equipment plug and play within the chamber - Heaviest Vessel Loads
• Reinforced shelving holds dense weight of multi-layer adherent culture vessels
• Adjustable without tools, for quick conversion between vessel heights and loads
• Fill up every shelf with a 500 lb maximum (226kg) static chamber load - Uniform Directed Airflow
• Back to front air flow
• Positive pressure plenum design
• Uniform even when heavily loaded lock
-
