Biomek i5 Liquid Handling Automated Workstation

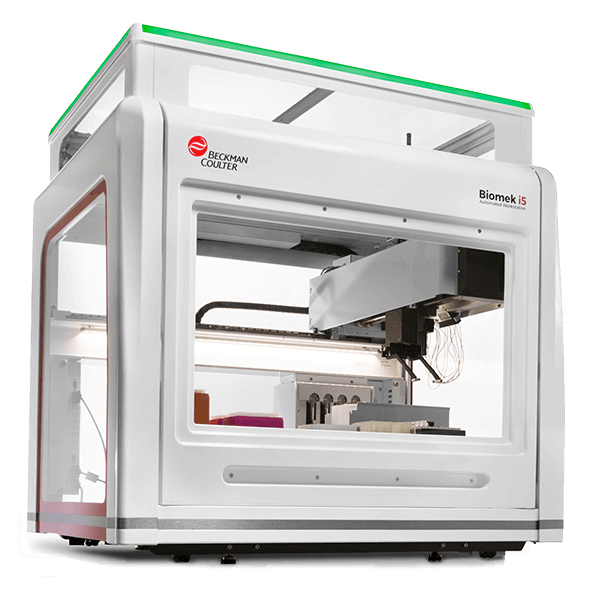

Item#: BIOMEK-I5The Biomek i5 Automated Workstation is Beckman Coulter's latest addition to its liquid handling portfolio. Optimizing dependability and walk-away time, these workstations are ideal for medium to high throughput workflows and feature 25 deck positions.
- Pod and Tool Type: 1μL - 300 μL 96-Channel Head; 5 μL -1200 μL 96-Channel head; 0.5 μL - 60 μL Multichannel-384 Head
- Tip Type: T30_384; T25F_384; T50_384; T40F_384; T80_384; T40F; T80_LLS; T40F_LSS; T90; T50F; T90_LSS; T50F_LLS; T230; T230_LSS; T190F_LLS; T230_WB; T1070; T1020_WB
- Operating System: Windows® 10
- Software: Biomek software, SAMI EX scheduling software, Biomek PowerPack software, Biomek Method Launcher, DART 2.0 software
- Display: 22" controller screen
- Autoclavable: No
Versatile Workspace
- Open platform with grid-based deck
- Internal LED light illuminates workspace
- Automated Labware Positioners (ALPs) for sample processing
- Optional enclosed version to protect samples from airborne particles
- Integrate additional devices on- or off-deck
- Configurable for specific applications
Flexible Pipetting & Workflow Management
- Multichannel head (96/384/Pin tool) or Span-8 pipetting
- Large-volume 1 mL multichannel pipetting head
- High-access, rotating gripper with unique offset finger design
- Disposable & fixed Biomek tips, including septum piercing
- Transfer volumes from 0.5µL - 5,000 µL
- Independent Span-8 probe calibration
- 8 channel liquid-level sensing
- Supports labware from tubes to 1,536-well microplates
- Accurate intra-well pipetting
Simple System Operation
- Easily automate existing processes & execute quick workflow changes
- Powered by icon-based software with data tracking and LIMS connectivity
- Windows 10 OS
- Extend walk-away operation with process management and scheduling software
- Automated deck framing
- Data-driven operations including hit-picking & normalization
- Light curtain safety feature
- Instrument status light bar
- DeckOptix cameras for live, remote-monitoring & on-error video capture
Application-Focused Solutions
- Consultative workflow analysis
- Expert application & technical support
- Biomek automated demonstrated methods & capabilities for genomic, drug discovery & basic research workflows
