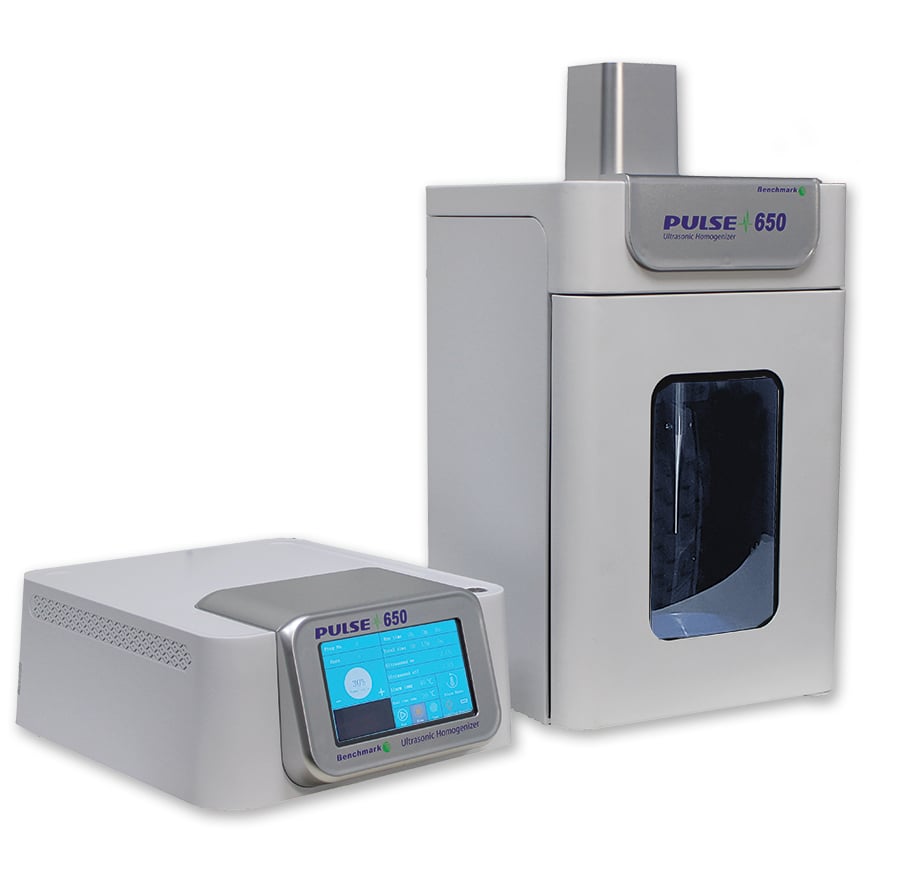

Benchmark Scientific Pulse 650™ Ultrasonic Homogenizer with 6mm Horn & Soundproof Box | 120V
Item#: DP0650The Pulse 650 Homogenizer utilizes ultrasonic waves and cavitation to disrupt cells, shear DNA and create emulsions. With up to 650 watts of power, samples from 0.1ml to 500ml can be processed. Pulsed operation, power ratios and other operating parameters are easily set using the large touch screen. Alarms alert the user to over temperature, over/no load and expiration of time.
Everything needed for operation, including a soundproof enclosure for reducing noise levels is included. The low-profile controller and soundproof enclosure are stackable to save valuable bench space. The enclosure features interior lights and a large front panel for viewing samples. A remote controlled, motorized lift provides easy probe placement. Between uses, the chamber can be decontaminated with the UV-C lights to help prevent cross contamination. Six horns, from 2mm to 12mm, are available to meet sample volume requirements. The Pulse 650 is supplied with the 6mm horn as standard, for processing samples from 10-100ml.
$5,775.00 $4,908.75
- Power: 6.5 - 650 W continuously adjustable
- Frequency: 20 - 25 KHz
- Cycle time (pulse on/off): 0.1 - 99.9 sec
- Timer: 1 sec - 99 hours:59m min:59 sec
- Duty cycle: 0.1 - 99.9%
- Volume*: 0.1 - 500 ml
- Program memory: 20 programs
- Display/control: 7 inch full color touch screen
- Horn: 6mm titanium (2, 4, 6, 8, 10 & 12mm also available)
- Alarms: No load/over load/end of run/over temperature
- Controller W x D x H: 13.4 x 16.5 x 6.6 in./34 x 42.7 x 16.8 cm
- Controller weight: 24.2 lbs/11 kg
- Soundproof enclosure W x D x H: 13 x 13 x 20.5 in./32 x 32 x 52 cm
- Soundproof enclosure weight: 24.2 lb/11 kg
- Electrical: 120V or 230V 50-60 Hz
- Warranty: 2 years
*Volume dependent upon the installed horn. Supplied with 6mm horn for volumes 10 - 100 ml.
- Ideal for cell disruption, homogenization, emulsification and more
- Large touch screen with total control over operating parameters
- Supplied complete with controller, 6mm horn, temperature probe and soundproof enclosure
- UV-C sterilization and lighted interior of soundproof box
PULSE 650 ULTRASONIC HOMOGENIZER LITERATURE
DownloadRequest a Proposal
