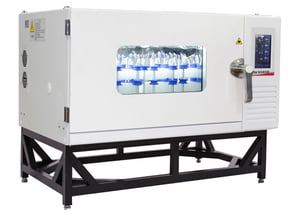

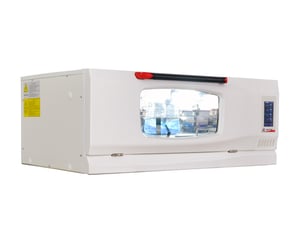

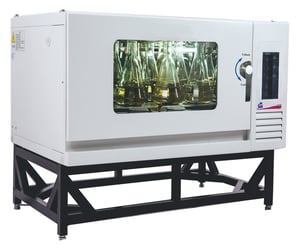

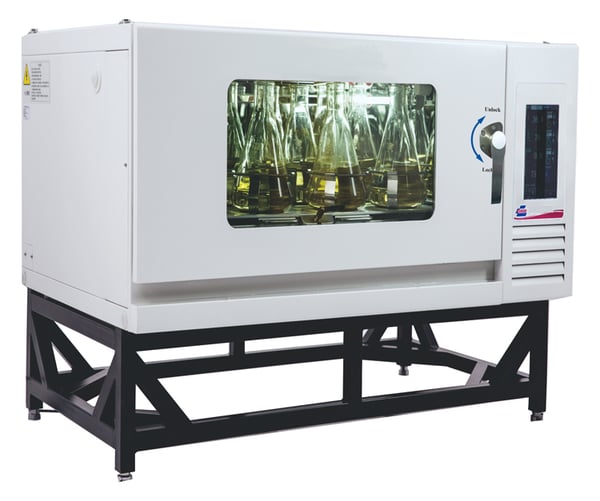

AEOLUS™ Compact Magnetic Drive Incubator Shaker | 25mm Orbit
Item#: IS-AMAThe CO2 Compact Incubator Shaker features Temperature, Shaking, CO2 Concentration, and Humidity controls. With 3mm, 25mm and 50mm orbit models available, its stackable design helps maximize floor space, with the capability of stacking up to three units high.
$17,550.00 $15,795.00
- Platform Dimensions WxD: 560 x 470mm (21.65 x 18.50 in)
- Max Capacity:
- Clamp Capacity: 50ml x72/100ml x30/150ml x30/200ml x30/250ml x30/500ml x16 /1000m1 xl2/2000ml x6/5000ml(Thomson)x4
- Sticky Mat: 50ml x72/100ml x53/150ml x41/200ml x32/250ml x30/500ml x16 /1000m1 xl2/5000ml(Thomson)x4
- Capacity: 190L
- Max Load: 10kg (22.05 lbs)
- Temp. Range: Room Temp, Minus 18°C-60°C (Lowest Temp is 4°C)
- Temp. Accuracy: ±0.1°C
- Temp. Uniformity: ± 0.3°C (@37°C)
- Temp Recovery Time After Door is Opened for 30s: ≤6 min (@37°C)
- Speed: 0(stop), 30- 300 rpm
- Speed Accuracy: ±1 rpm
- Speed Drive: Magnetic Drive
- Orbit Diameter: Ø25mm (Ø1.02in)
- CO2 Sensor: N/A
- CO2 Control Range: N/A
- CO2 Control Accuracy: N/A
- CO2 Recovery Time After Door is Opened for 30s: N/A
- Relative Humidity Type: Active
- Max Humidity: 90%
- Programmable Segments: 12 Segments
- Timer: 0~999h 59min
- Illumination: LED Lamps on Left and Right Walls
- Disinfection: UV Lamps on Left and Right Walls
- Door Opening Direction: Leftward
- Internal Dimensions (WxDxH): 25.75" x 23.82" x 18.66" (654 x 605 x 474 mm)
- Outer Dimensions (WxDxH): 38.19" x 30.71" x 20.87" (+3.15 with feet)/970 x 780 x 530 mm (+80 with feet)
- Internal Working Height: 11.8" (300mm)
- Net Weight: 375lbs (170kg)
- Display: 7" Color Capacitive Touch Screen
- Parameter Protection: Password protected
- Data Stored: Time, Temperature, Speed & Instrument Status
- Data Storage Interval: 1 Minute
- Screen Data Display: displays most recent 7 days of data
- Automatic Defrost: Yes
- Noise Level: ≤55dB (when compressor is running)
- Auto-Recovery after Power Interruption: Yes
- Power when Heating: ≤450W
- Power when Cooling: ≤180W
- Power Supply: AC 110V±11V, 60Hz
- Power: ≤630W
- Mobile Monitoring & Control by WiFi: Optional through IS-A64W accessory and app
- Warranty: 2 years parts and service
- Certification: CE
- 7" High-Res Color Touch Screen with intuitive graphic interface
- Innovative chamber design features smooth rounded internal corners for easy cleaning
- Infra-Red(IR) CO2 sensor for Rrecise and reliable CO2 cletection
- Optional WiFi and RS485 control
- UV lights for easy sterihzation
- Audible and visual alarms
- Mirror finish, pharmaceutical grade stainless steel cfiamber
- Stackable design up to 3 units.
- 3mm, 25mm and 50mm orbit models available
- Three axis eccentric balance system provides stable and reliable shaking
- Terminal feedback system ensures precise shaking speed
- Sealed Magnetic Drive is highly efficient, quiet, durable, and produces negligible heat that does not affect the chamber temperature
- Combination of Proportional-Integral-Derivative control and Fuzzy control for temperature ensure temperature accuracy within ±0.1 ° C
- Program mode allows user to set up to 12 segments of varying temperature and speed
- Highly efficient inverter compressor refrigeration allows for temperatures as low as 18 ° C below room temperature with low energy consumption (minimum temperature of 4° C)
- Infrared CO2 sensor provides accurate and reliable CO2 detection (IS-ACMA, IS-A5CMA and IS-AHC3SA only)
- Intuitive 7" capacitive touchscreen makes many functions, such as setting alarm parameters, easy to complete
- Slide rail platform makes it easy to load and unload fixtures (except 3mm orbit models)
- Noise reduction design keeps the instrument noise level to 55 dB
- Optional wifi monitoring allows the user to stay in touch with the instrument even outside of the lab
- High Resolution 7-inch Color Touch Screen: Modular display presents instrument status and function values in a clear and concise manner.
- Capacitive Touch Screen: The capacitive screen is more responsive and durable than a resistance screen as there is no reaction delay when the screen is pressed.
- Screen Lock: The display screen has an automatic lock screen with password protection function. This prevents any accidental or unauthorized alterations of the programmed operations or settings.
- Pull Out Rail Platform: Operators can easily pull the platform out to load or unload fixtures. Only one locking handle in the middle of the platform makes the process fast and convenient (except the 3mm orbit models).
- Sealed Magnetic Drive: All models are beltless for longer life and lower maintenance.
- Excellent Temperature Control Performance: When the incubator is at a stable temperature of 37° C, the uniformity is ±0.3° C.
- Strong Cooling Capacity: The incubator chamber can be cooled to 18 ° C below the ambient temperature {Lowest temp is 4° C).
- Inverter Compressor: Makes cooling a noiseless, durable, and highly efficient process while also saving energy.
- Three Units Can Be Stacked: This product can be purchased as a single, double, or triple stack.
- Bi-Directional Ultraviolet Sterilization: The chamber is equipped with UV sterilization light components to enhance the germicidal irradiation effect and reach all areas of the chamber.
- Ultra Quiet Design: The noise level is less than SSdB when incubator is running and cooling (loudest process), providing a quiet environment for the operator.
- Slow Acceleration and Deceleration: Shaking function starts and stops slowly to prevent large shear forces on the bacteria or cells.
- High Pressure Water Rinse: Both the platform and chamber feature an integrated draining system that is fast and efficient.
- Efficient and Durable Insulation: Foamed Polyurethane insulation provides advanced thermal insulation. The material is also air-tight, waterproof, lightweight, shockproof, electrically insulated, heat resistant, cold resistant, and solvent resistant.
