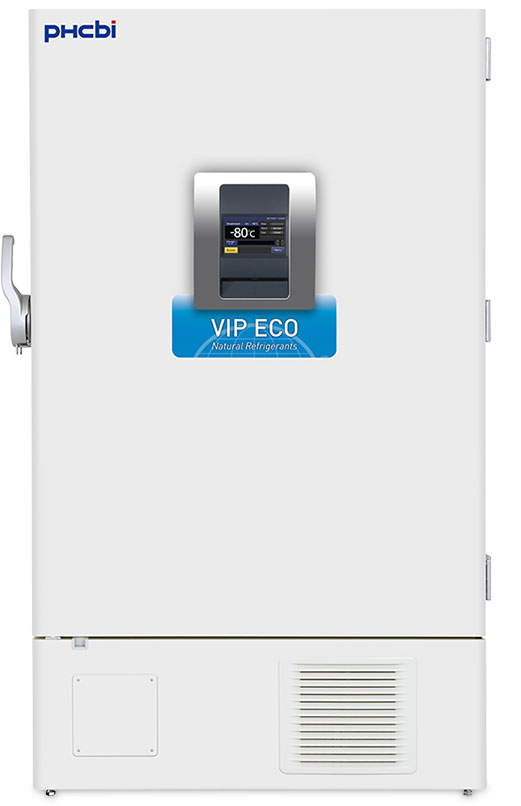

The PHCbi brand (formerly Panasonic Healthcare) of VIP ECO Ultra Low Temp Freezers now includes a Large Capacity ULT Freezer, 29.8 cubic foot capacity. The cabinet configuration allows for storage of (672) 2″ boxes or (448) 3″ boxes. This type of bulk storage makes this freezer ideal for use in biorepositories, research freezer farms and other facilities where space is limited but large capacity storage is needed . Its upright design with a patented VIP Plus thin-profile insulation ensures outstanding thermal insulation value while still allowing for maximum storage capacity. This leads to improved temperature stability even after frequent door openings and prolongs warm-up times during power outages. With its slim design, this new freezer allows for ultimate capacity storage while using minimal lab floor space. The slim design can easily pass through a standard 36” wide doorway.
ENERGY STAR Certified | Natural Refrigerants | 115V
Through independent third party testing laboratories, the VIP ECO Model MDF-DU901VHA-PA has earned an ENERGY STAR Certification. This unit has been tested and certified to run at a daily energy consumption of 0.30 kWh/cu.ft. This large capacity ULT freezer also operates on an 115V electrical supply which allows for superior performance, reliability and energy efficiency. The natural refrigerants used in the VIP ECO series help minimize environmental impact without compromising the performance of the unit itself.
Faster Temperature Recovery | Lower Operating Costs
Powered by the next generation of high performance variable speed inverter compressors and refined control algorithms, the MDF-DU901-VHA features a robust refrigeration system, designed to maintain its energy efficiency. This assures faster temperature recovery and stability with frequent door openings. This also allows for a better tolerance for high ambient conditions in warmer laboratories or in hallways. An overall design helping lower operating costs for labs while still ensuring stored product is secured. This combination allows for secure storage of valuable biological samples, making it an exceptional choice for new or replacement installations.

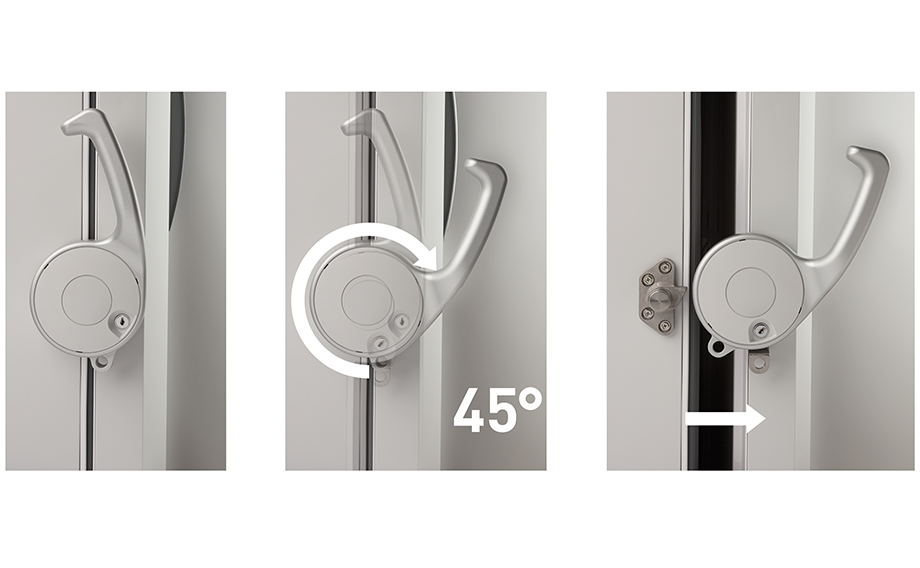

Ergonomic EZ Latch Door Handle
VIP ECO freezers also include Advanced Frost Control and an EZ Latch door design. The EZ Latch door handle is a patent pending feature engineered to tolerate recurrent door openings. This design can also control frost associated with temperature fluctuations, protecting the samples you store. The doors handle arcs to 45 degrees in total movement for easy operation. Positive latching inner doors supplement the insulation factor of the outer door. This helps in maintaining the door seals integrity assuring energy efficiency. The EZ Latch is the new standard on all of the units in the PHCbi VIP ECO -86°C / -80°C Laboratory Freezer Series.
Touchscreen Microprocessor Controller | Alarms & Data
Much like the other PHCbi low temp freezers, an additional standard feature is the microprocessor controller. The controller combines freezer operation including, desired set-point security, system monitoring, performance predictions and data logging functions into a single display. The large color LCD touchscreen can be controlled with gloved hands and is password protected. The display includes audio and visual warnings, unit diagnostics, temperature and door opening data. A USB port permits the convenient transfer of operating history as desired.
