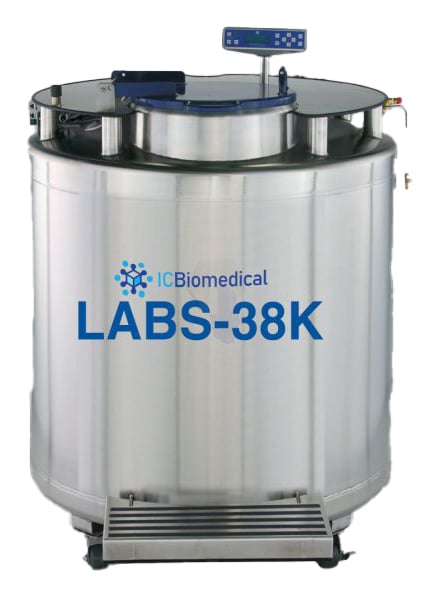

IC Biomedical LABS 38K LN2 Freezer System (Capacity: 37,700 x 2.0 ml vials)
Item#: LABS38K-CSThe IC Biomedical LABS 38K Liquid Nitrogen Freezer is the perfect cryogenic storage solution when you require storage capacities of up to 37,700 2ml vials. This unit features an easy-grip, aluminum turn-table for easier movement, a flat table top providing a convenient work surface and a hinged and lockable lid with a sealed coating for long-lasting LN2 temperatures. The NEW CS Series control system allows you to control and monitor liquid levels and temperatures while providing enhanced sample security. We offer a large variety of inventory systems and accessories making this unit complete.
- External Operating Height (top of step to lid opening): 44" / 1,118mm
- Step Height: 11.5" / 292mm
- Height (floor to opening): 56" / 1,422mm
- Usable Height (internal): 30" / 762mm
- Outside Diameter: 42" / 1,067mm
- Internal Working Diameter: 37.8" / 959mm
- Neck Opening: 18" / 457mm
- Total LN2 Capacity:
- Liquid Storage: 626 liters
- Vapor Storage: 72 liters
- Weight Empty: 930 lbs. / 422 kg
- Max. Gross Weight(3): 2,050 lbs. / 930 kg
Inventory Control System Specifications:
- No. of 100/81 Cell Racks: 26
- No. of Shelves/Rack: 13
- No. of 25 Cell Racks: 12
- No. of Shelves/Rack: 13
- Vial Capacity(4): 37,700 x 2.0ml vials
- Bag 25ml (7 level rack): 2,688
- Bag 50ml (5 level rack): 1,582
- Bag 250ml (5 level rack): 900
- Bag 500ml (5 level rack): 690
Ordering Information:
| System |
Catalog No.
|
|
LABS 38K with CS200 Controller
(includes locking step and fill hose with adaptor)
|
367807
|
| Options to Consider: |
Catalog No.
|
| Battery Back-Up with Cover |
367805
|
| Inventory Freezer Racks | click here |
| Storage Boxes and Cell Dividers | click here |
| Canisters, Frames, and Dividers | click here |
*All LABS Models with the CS200 controller require a plug end configuration for country of end use.
(2) Universal transformer reduces power to 12 VDC. Power outlet/plug configuration for country of end use to be indicated at time
of order.
(3) Includes the empty weight and total LN2 capacity weight.
(4) 2 ml vial size/12.5 mm O.D. internal thread.
(7) Feature standard on all units with CS Control System
- High efficiency - very low LN2 consumption.
- LN2 storage in either liquid or vapor phase
- Near LN2 temperatures maintained at top of inventory storage system for overall sample viability
- Single pivot point aluminum turntable design - smooth rotation and ergonomic use.
- Eliminates any mechanical component maintenance
- Full height, segmented and labeled turntable provides easy inventory storage access and management
- Hinged lid and stainless steel table top - easy operation with convenient working surface.
- The lid includes locking capabilities and activates an automatic defog for quick viewing of inventory storage
- The table top provides a clear working surface and provides protection to electrical and plumbing components
- Enhanced and intuitive controller technology.
- Discrete thermistor level measurement and thermocouple temperature resolution 0.1°C
- Capabilities for data collection, event scheduling and enhanced security settings
- Additional features include:
- Integral folding step with slip-resistant surface and mechanical step lock for securing the step when stowed
- Flexible fill hose with 1.27cm I.D. includes dual swivel connectors and a 3/8" male NPT adaptor
- Warranty: 5 year vacuum
-
