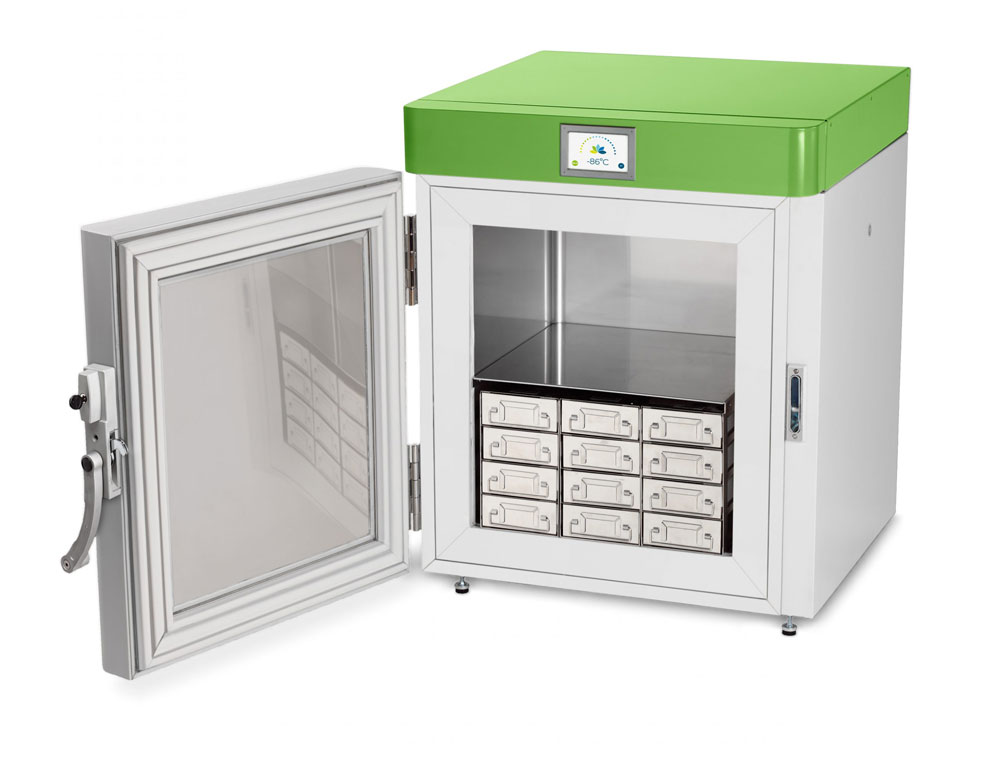

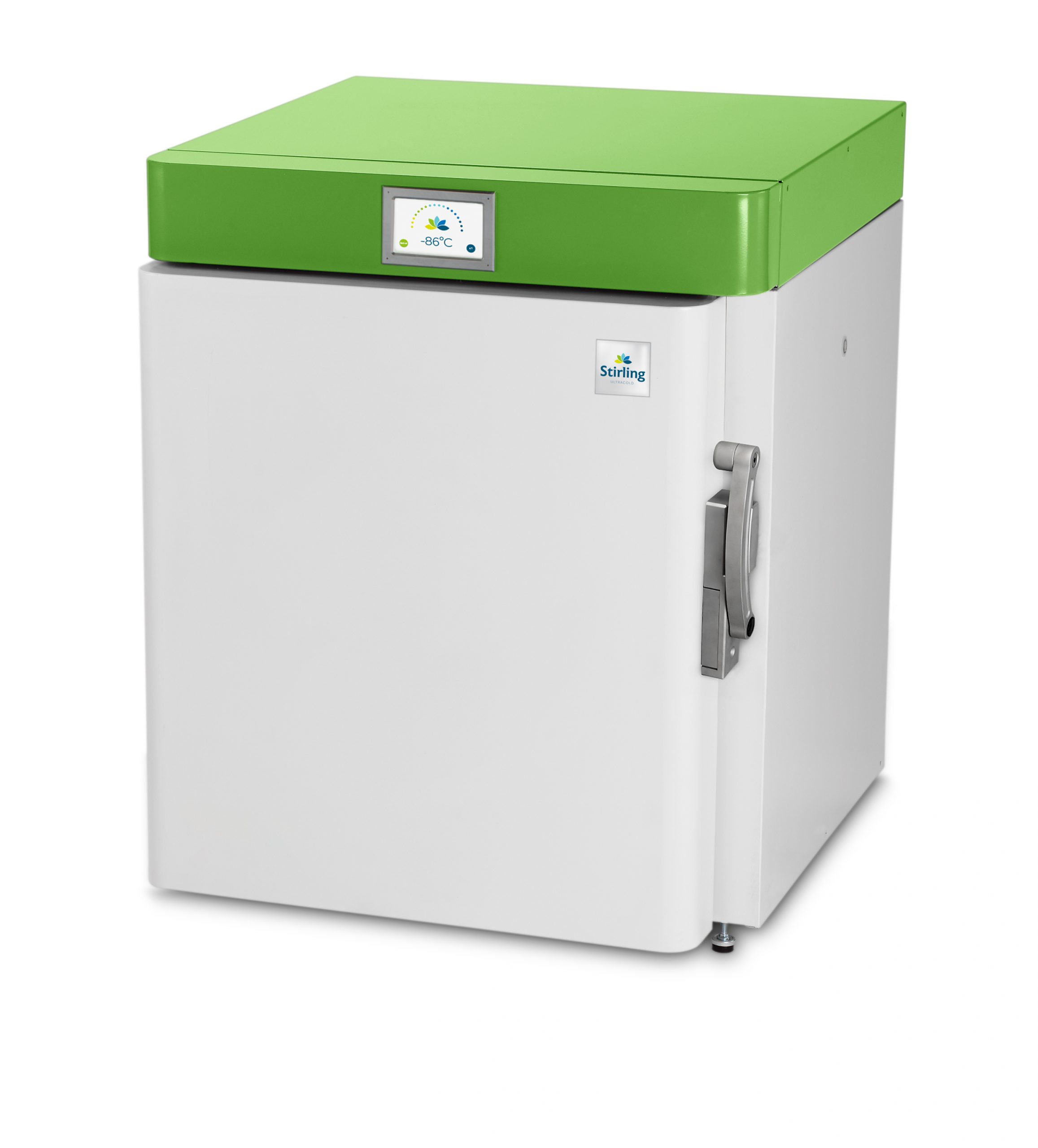

Stirling Ultracold Undercounter ULT Ultra Low Temp Freezer (-86°C), 3.7 Cu. Ft.
Item#: SU105UE-120The Stirling Ultracold Undercounter Ultra Low Temp Freezer is designed for storage of Samples & Vaccines at temperatures of -70C down to -86C. This compact Ultra Low Temp (ULT) Freezer offers a spacious 3.7 cu. ft. cabinet that delivers stable, uniform temperature storage at a fraction of the operating cost of conventional cascade refrigeration systems. The SU105U has a unique design allowing it to be placed under a counter, stacked on top of another or used as a freestanding freezer, which makes it ideal for clinical trials.
Please note this product ships freight
Click here to view freezer rack configurations for this model
$11,374.86 $10,237.37
- Product Specifications
- Product Features
- Literature & Manuals
- Product Videos
- Product Accessories
- Request a Proposal
- Storage Volume: 105 liters (3.7 cu.ft.)
- Storage Capacity: 72 standard 2" boxes
- Temperature Range: -86ºC to -20ºC @ 32ºC (90ºF) ambient, adjustable in 1°C increments.
-
Interior Dimensions (H x W x D): 533 x 457 x 432 mm | (21 x 18 x 17 in.)
-
Exterior Dimensions (H x W x D): 864 x 686 x 711 mm | (34 x 27 x 28 in.)
-
Net Weight, Empty: 100 kg (220 lbs.)
-
Shipping Dimensions (L x W x D): 1041.4 x 787.4 x 787.4 mm | (41 x 31 x 31 in.)
-
Shipping Weight: 121 kg (266 lbs.)
- Electric Power*: 100V to 240V (±10%) at either 50 or 60 Hz
- Maximum Power (Current): 300 watts (3 amps @120V, 1.5 amps @240V) (±10%) at either 50 or 60 Hz
- Electric Supply Rating: 15 amp or greater grounded circuit
- Certification/Agency Listing: UL & CE
- Ambient Operating Temperature: +5ºC to +35ºC (41ºF to 95ºF)
- Warranty: 7 year engine and thermosiphon protection, 2 Year Parts & Labor
Note: The CDC requires a data logger or temperature monitoring device to consistently record live temperature readings from the inside of a refrigerator or freezer when storing all types of vaccines. Constant monitoring of vaccines at recommended temperatures is essential for maintaining the efficacy of a vaccine. Failing to do so can lead to wasted vaccines or ineffective vaccines being administered to patients. Please follow the CDC requirements for Vaccine Storage & the COVID-19 Vaccination Program found here.
- Unique free-piston engine with an efficient, thin-wall vacuum insulated cabinet.
- Integral control, alarm and monitoring system with an intuitive graphic user interface.
- Thermosiphon energy transfer is completely sealed with no moving parts.
- Warranty: seven years engine protection, two years parts coverage.
Advantages:
- The free-piston engine delivers high-performance ultra low storage capacity in an undercounter, benchtop or stacked cabinet configuration.
- No compressors or costly cascade systems. Engine is a proven, dependable, maintenance-free heat transfer process that is widely used for cooling and power generation.
- Only demands 230 watts at ambient start up and decreases for the greatest efficiency at its lowest operating temperature.
- This unit uses up to 50% less energy consumption compared to other freezers and is powered by Humm Free-Piston Stirling Technology.
-
Store more samples within a smaller footprint.
-
Can plug into any outlet, eliminating the cost of converting an outlet to 240V.
Optional Features and Accessories:
- Freezer Racks and Inventory Systems
- 6” Free standing/ wall mountable chart recorder kit with 6 red pens, 60 paper charts,
& temperature probe (7 days) (PN: D6CHT)
-
Power Supply:
-
North America 120V Cord 6 Ft. Long electrical cord standard NEMA 5-15R (PN: SU-018000)
-
North America 240V Cord 6 Ft. Long electrical cord standard NEMA 6-15R (PN: SU-019000)
-
North America 230V/15A Cord 6 Ft. Twist Lock Plug electrical cord NEMA L6-15P (PN: SU-018000-230TW)
-
-
1 Year extended warranty. Available to supplement standard 2 year comprehensive / 7 year engine warranty. Contact your sales representative for desired extension. (PN: SU105EXT)
-
Certificate of Calibration: Must be specified when ordering. Validates all instrumentation used in the Shuttle testing protocol is calibrated to an NIST traceable instrument. (PN: NIST-CAL-105)
-
Factory Installed- Stacking adapter kit for stacking 2 SU105 Units (PN: SU-105U-1A100)
-
CO2 Back-up System Factory Installed (PN: CO2FA-0P1000)
-
LN2 Back-up System Factory Installed (PN: LN2FA-0P1000)
Transferring COVID-19 vaccine vials to undercounter ULT freezer racking system
-
Excursion-Trac Ultra-Low Traceable® Datalogger Thermometer – 1 Stainless Steel Probe
Item #: LABC3-6426-3$236.00$224.20 -

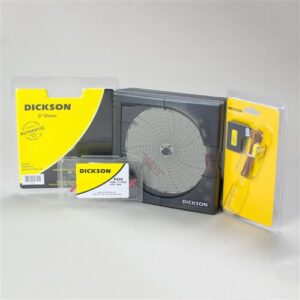

Free Standing 6″ Seven Day Chart Recorder for Portable Shuttle
