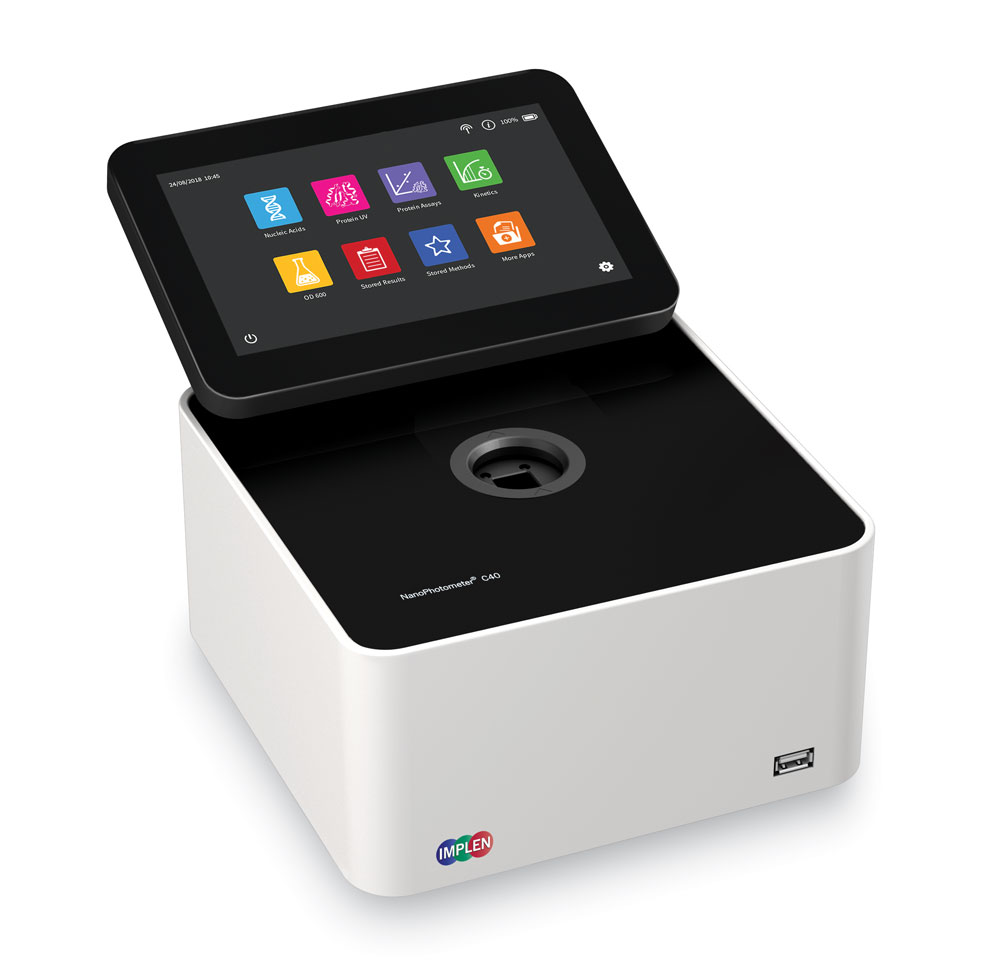

Implen NanoPhotometer® C40 UV/Visible Spectrophotometer
Item#: C40The flexible Implen NanoPhotometer® C40 UV/VIS spectrophotometer offers cuvette measurements, made in Germany. It provides full scan data from 200 - 900 nm for various life science applications like quantification and qualification of nucleic acids, proteins or cell cultures. The stand-alone design with an integrated touchscreen and small footprint make it ideal for bench operation in pharma, biotech or academic laboratories.
Quantify and qualify DNA, RNA, protein, small molecules, nano particles and other samples using all kinds of standard cuvettes (plastic, quartz and other materials) and have full-spectral data in only 2.5 s. Built-in file server and LIMS/eLN integration through REST API offering future-proof data export via USB and Ethernet cable or WiFi. Barcode reader and dymolabel printer ready. 21 CFR part 11 compliant software available.
$9,813.00
Request a Quote- Display: 1024×600 pixels; glove compatible touchscreen
- Absorbance Accuracy: <1.75 % @ 0.7 A @ 280 nm
- Photometric Range: 0 - 2.6 A
- Wavelength Accuracy: ±0.75 nm
- Wavelength Reproducibility: ±0.2 nm
- Compatible With: Windows 8, 10 (32 and 64 bit), OS X (Intel x86 and Apple M1), iOS and Android OS
- Detection Limit:
- Detection range BSA: 0.003 - 3.7 mg/ml (cuvette)
- Detection range dsDNA: 0.1 - 130 ng/µl (cuvette)
- Detector: 4096 CMOS Array
- Interfaces: 2x USB A, USB B, HDMI, Ethernet, WiFi
- Languages: English, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
- Light Source: Xenon flash lamp
- Memory: 64 GB
- Reproducibility:
- <0.002 A @ 0 - 0.3 A @ 280 nm
- CV <1% @ 0.3 - 2.0 A @ 280 nm (Absorbance)
- Measurement Time: 2.5 s
- No. of samples: 1
- Sample Size: Depends on cuvette
- Spectral bandwidth: <1.8 nm
- Dimensions: 20×20 cm
- Weight: <5.2 kg
- Preprogrammed applications for (labeled) DNA, RNA and oligos (260 nm)
- (Labeled) purified proteins and peptides (200 to 280 nm)
- Protein assays (BCA 562 nm, Bradford 595 nm, Lowry 650 nn)
- Kinetics (200 to 900 nm)
- Optical density measurements (600 nm)
- Manual methods (wave length, wave scan, ratio, concentration, standard curve)
- Recalibration-free
- Built-in cuvette
- Optional IQOQ package available
- Optional CFR21 software available
Implen NanoPhotometer Spectrophotometer Brochure
DownloadUser Manual for Implen NanoPhotometer
DownloadImplen NanoPhotometer Software User Manual
DownloadImplen NanoPhotometer NP80 and Spectrophotometer Family
