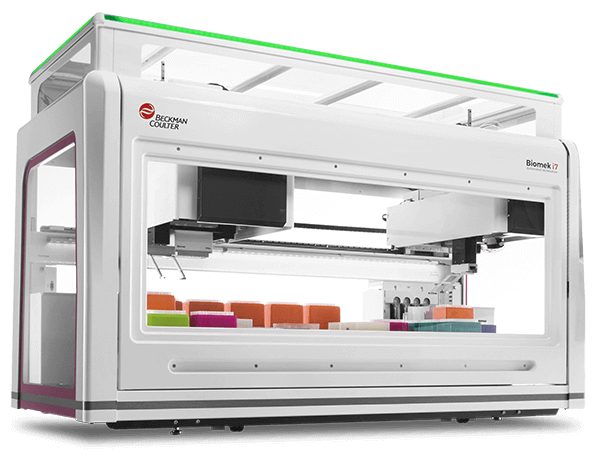

Biomek i7 Liquid Handling Automated Workstation
Item#: BIOMEK-I7The Biomek i7 Automated Worktstation from Beckman Coulter is an industry leading liquid handler. Optimizing dependability and walk-away time, these workstations are ideal for medium to high throughput workflows.
Supplier: Beckman Coulter
-
Part Number Product Name Weight Power Requirements Temperature Range C02613
Mobile Workstation, i7 225 kg / 496 lb N/A B87588
Biomek i7 Span-8 with enclosure 225 kg / 496 lb 100-240 VAC, 50/60 Hz, 10 A 10° C - 30°C
B87587
Biomek i7 Multichannel with enclosure 234 kg / 515.9 lb 100-240 VAC, 50/60 Hz, 10 A 10° C - 30°C B87586
Biomek i7 Dual-Multichannel with enclosure 269 kg / 593 lb 100-240 VAC, 50/60 Hz, 10 A 10° C - 30°C
B87585
Biomek i7 Hybrid (MC + Span-8) with Enclosure 260 kg / 573.2 lb 100-240 VAC, 50/60 Hz, 10 A 10° C - 30°C
B87582 Biomek i7 Span-8 without enclosure 190 kg / 418.9 lb 100-240 VAC, 50/60 Hz, 10 A 10° C - 30°C
B87579 Biomek® i7 Hybrid (MC + Span-8) without Enclosure 225 kg / 496 lb 100-240 VAC, 50/60 Hz, 10 A 10° C - 30°C
Versatile Workspace
- Spacious, open-platform with grid-based deck
- Up to 45 deck positions
- Internal LED light
- Automated Labware Positioners (ALPs) for sample processing
- Optional enclosed version to protect samples from airborne particles
- Integrate additional devices on- or off-deck
- Configurable for specific applications
Flexible Pipetting and Workflow Management
- Multiple single- & dual-arm configurations with Multichannel heads (96/384/Pin tool) and/or Span-8 pipetting
- Large-volume 1 mL multichannel pipetting head
- High-access, rotating gripper(s) with unique offset finger design
- Disposable & fixed Biomek pipette tips (including septum piercing)
- Transfer volumes from 0.5 µL - 5,000 µL
- Independent Span-8 probe calibration
- 8 channel liquid-level sensing
- Supports labware from tubes to 1,536-well microplates
- Accurate intra-well pipetting
Simple System Operation
- Easily automate existing processes & execute quick workflow changes
- Powered by icon-based software with data tracking & LIMS connectivity
- Windows 10 OS
- Extend walk-away operation with process management & scheduling software
- Guided system setup
- Automated deck framing
- Data-driven method operations including hit-picking & normalization
- Light curtain safety feature
- Instrument status light bar
- DeckOptix cameras for live, remote-monitoring & on-error video capture
Application-focused Solutions
- Consultative workflow analysis
- Expert application & technical support
- Biomek-automated demonstrated methods & capabilities for genomic, drug discovery & basic research workflows
Beckman Coulter Liquid Handling Automation Brochure
