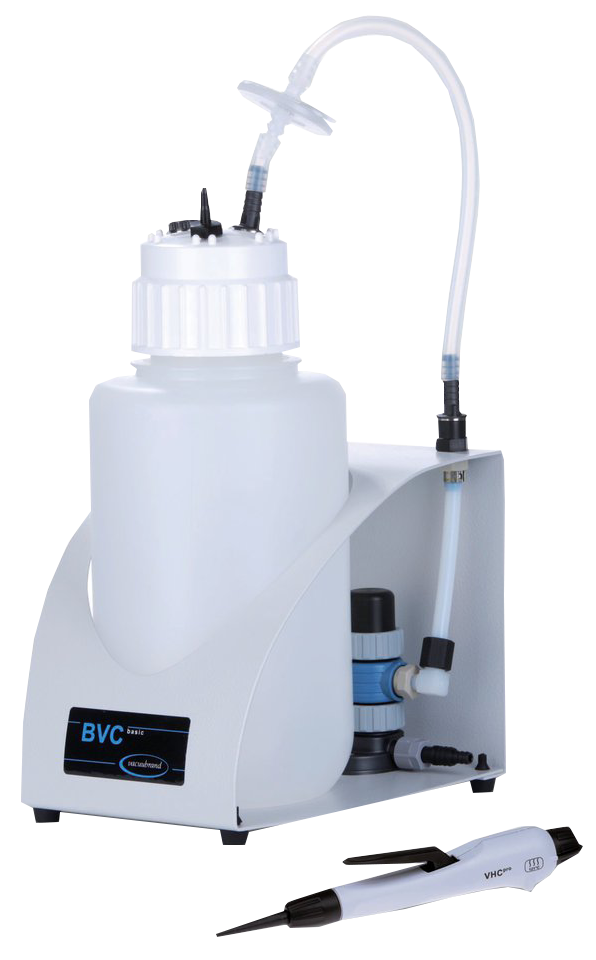

BioChem-VacuuCenter Fluid aspiration system BVC basic
Item#: 20727000The BioChem-VacuuCenter BVC basic, with 4l PP bottle, is designed for connection to an existing external vacuum source like a diaphragm pump or a vacuum network and does not require electric power. The chemical-resistant mechanical vacuum controller always ensures an optimal operating vacuum. The controller opens only when needed thus limiting the gas load on the vacuum source. The evaporation of collected liquid is minimized. The inlet tubing integrated in the bottle head reduces aerosol and foam formation and ensures a long service life of the hydrophobic protection filter. The aspiration system is also available as BVC basic G with 2l coated borosilicate glass bottle.
$1,420.00 $1,349.00
- Vacuum controller: Mechanical vacuum controller
- Control range: 100 - 500 mbar
- Collection bottle: 4l Polypropylene
- Ambient temperature range (operation): 10 – 40 °C
- Ambient temperature range (storage): -10 – 60 °C
- Max. back pressure (abs.): [bar] 1.1
- Inlet connection: Suction controller
- Outlet connection: Hose nozzle DN 6-10 mm
- Degree of protection: IP 54
- Dimensions: 250L x 200W x 490H (mm)
- Weight: 2.8 (kg)
- Items supplied/Included: Complete fluid aspiration system for existing vacuum source, with automatic vacuum control, hose nozzle DN 6/10 mm for connection to a vacuum supply, aspiration hand set VacuuHandControl VHCpro, collection bottle, protection filter and manual.
- Mechanical vacuum regulator to provide optimum working vacuum and minimize the vapor load on the vacuum network
- Stable base and electricity-free operation for convenience
- Autoclavable collection bottle designed to reduce aerosol and foam formation; autoclavable quick-couplings available as accessory
- Aspiration hand set VacuuHandControl (VHCpro) with flow-through suction tube - no contamination of handle by aspirated media
- Hydrophobic 0.2 µm sterilizer filter - contamination risks for the vacuum pumping system are greatly reduced; autoclavable as complete unit together with the collection bottle
Optional Accessories for purchase:
- Suction Controller VacuuHandControl VHCpro (688061)
- Extension kit second suction controller connection (699943)
- Quick-fit coupling suction controller to bottle (635807)
- Quick-fit coupling bottle to pump (635808)
- Protection filter 0.2 µm hydrophob (638266)
- Rubber vacuum tubing DN 8 mm (686001)
