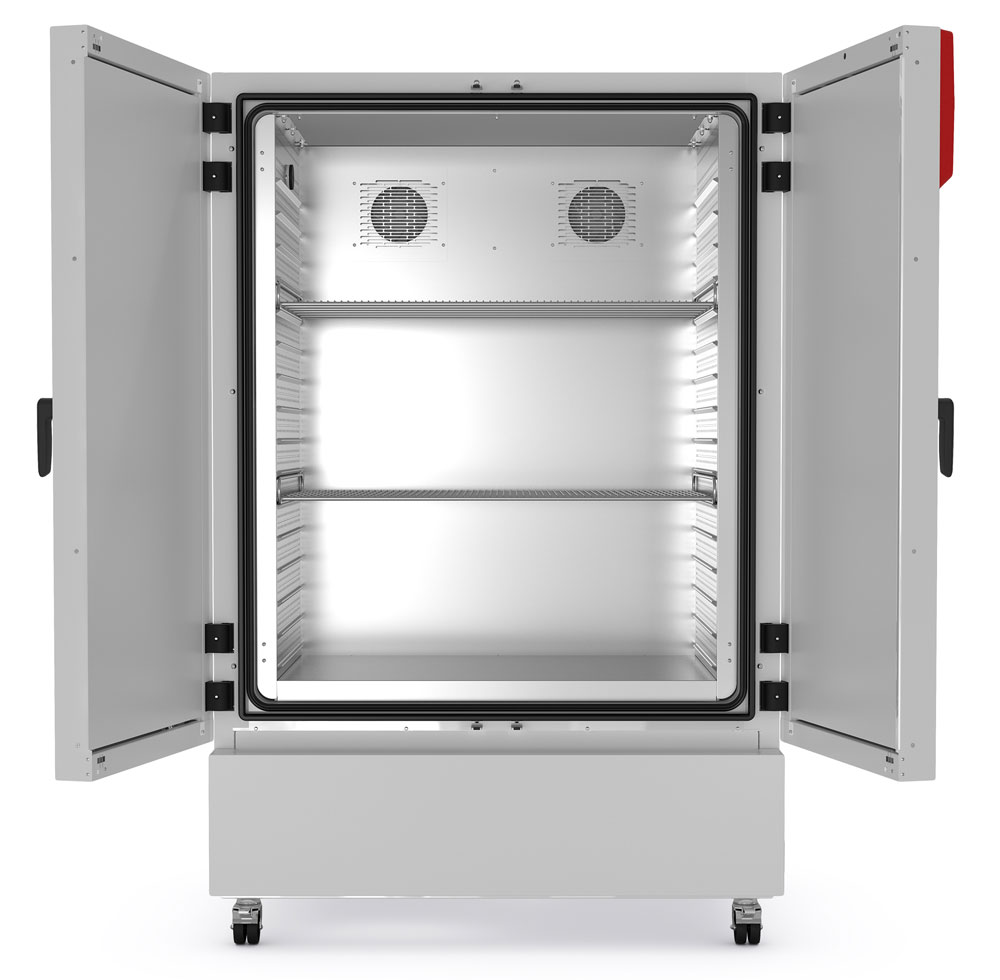

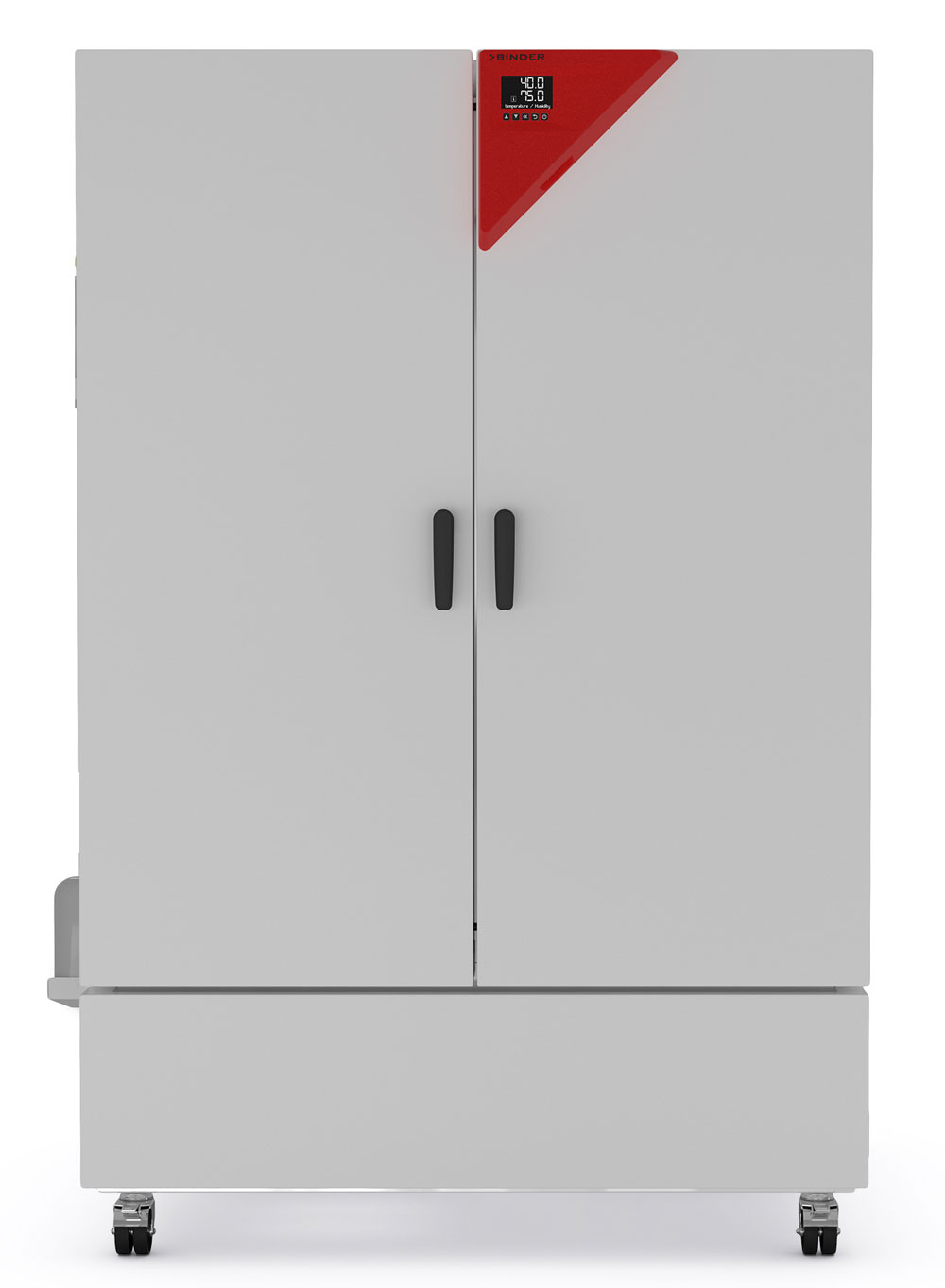

BINDER KBF-S ECO 720 Humidity Testing Chambers with Thermoelectric Cooling | 24.7 Cu. Ft.
Item#: 9020-0421Benefits:
- Homogeneous climate conditions thanks to APT.line™ preheating chamber
- Standard-compliant testing according to ICH Q1A
- Precise temperature and humidity control
$20,678.00 $18,610.20
Supplier: BINDER
- Product Specifications
- Product Features
- Literature & Manuals
- Product Videos
- Product Accessories
- Request a Proposal
Performance Data Temperature
- Temperature range (max. 24 °C under ambient temp): 0°C -70°C
- Temperature variation at 40 °C [± K]: 0.4°C
- Temperature fluctuation at 40 °C [± K]: 0.1°C
- heat compensation at 40 °C [W]: 400°C
Performance Data Climate
- Temperature range (max. 24 °C under ambient temp) 5°C -70°C
- Temperature variation at 25 °C and 60 % RH [± K]: 0.1
- Temperature variation at 40 °C and 75 % RH [± K]: 0.3
- Temperature fluctuation at 25 °C and 60 % RH [± K]: 0.1
- Temperature fluctuation at 40 °C and 75 % RH [± K]: 0.1
- Humidity range [% RH] 10%-80%
- Humidity fluctuation at 25 °C and 60 % RH: 0,3 % RH
- Humidity fluctuation at 40 °C and 75 % RH: 0,3 % RH
- Recovery time after 30 seconds door open at 25 °C and 60 % RH [min] 7
- Recovery time after 30 seconds door open at 40 °C and 75 % RH [min] 17
Electrical data
- Rated Voltage [V] 100-120
- Power frequency [Hz] 50/60
- Nominal power [kW] 1.2
- Unit fuse [A] 16
- Phase (Nominal voltage) 1~
Measures
- Interior volume [cu.ft.] 24.7
- Net weight of the unit (empty) [lbs] 589
- Permitted load [lbs] 331
- Load per rack [lbs] 99
- Wall clearance back [in] 3.94
- Wall clearance sidewise [in] 11.82
Internal Dimensions
- Width [in] 38.34
- Height [in] 49.3
- Depth [in] 22.68
Doors
- Unit doors: 2
Housing dimensions not incl. fittings and connections
- Width net [in] 49.4
- Height net [in] 75.8
- Depth net [in] 34.91
Environment-specific data
- Energy consumption at 40 °C and 75 % RH [Wh/h] 130
- Sound-pressure level [dB(A)] 48
Fixtures
- Number of shelves (std./max.) 2/15
- Temperature range: 0 °C to 70 °C
- Humidity range: 20% to 80% RH
- APT.line™ preheating chamber technology
- Humidity regulation with capacitive humidity sensor and steam humidification
- LCD to display temperature and humidity along with additional information and alarms
- Internal data logger, measured values can be read out in open format via USB
- Unit self-test for comprehensive status analysis
- Inner chamber made completely of stainless steel
- 2 stainless steel racks, incl. shelf supports
- Access port with silicone plug, 30 mm, left
- Robust twin casters with brakes, from 240 L
- Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
- Computer interface: Ethernet
- Independent water supply via tank
- Warranty: 2 years parts & labor
